Part 1: Introduction to Optical Fiber/Fiber Optics
1. Concept of Optical Fiber
Optical fiber (abbreviated as fiber) is a light-guiding medium made of glass or plastic that utilizes the principle of total internal reflection to transmit light through these fibers. The fine optical fiber is encased in a plastic sheath, allowing it to bend without breaking. Typically, a transmitting device at one end-using either a light-emitting diode (LED) or a laser beam-sends light pulses into the fiber, while a receiving device at the other end detects the pulses using photosensitive components. A cable containing optical fibers is called an optical cable.
Due to significantly lower signal loss compared to electrical conduction in wires, and because its primary raw material-silicon-is plentiful and easy to mine, optical fiber is inexpensive, making it ideal for long-distance information transmission. The primary application of optical fiber is communication. Currently, communication-grade fibers are predominantly silica-based fibers, with high-purity quartz glass (silicon dioxide, SiO₂) as their main component. An optical fiber communication system transmits information by sending light waves through these fibers.
2. Working Principle of Optical Fiber
The working principle of optical fiber relies on total internal reflection.
Dispersion in Optical Fiber
Cause of Dispersion: In optical fibers, a light signal consists of multiple components. Since frequency/mode components propagate at different speeds, after traveling a certain distance, a time delay difference arises between them. This leads to waveform distortion and pulse broadening-a phenomenon known as fiber dispersion.
Effects of Dispersion: Dispersion causes signal pulses to distort and broaden, resulting in intersymbol interference (ISI). To maintain communication quality, the interval between symbols must be increased (i.e., reducing transmission speed), which limits both the capacity and distance of fiber-optic systems.
Classification of Dispersion: Based on its origin, dispersion can be categorized into:
Modal dispersion
Material dispersion
Waveguide dispersion
Polarization mode dispersion
Optical Fiber Loss
Fiber loss refers to the reduction in optical power after transmission due to absorption and scattering.
Absorption Loss:
Intrinsic absorption: Natural absorption by the fiber material itself.
Impurity absorption: Absorption caused by impurities within the fiber.
Scattering Loss:
Linear scattering
Nonlinear scattering
Structural imperfection scattering
Other Attenuation Mechanisms: Microbending loss, etc.
Optical fibers are flexible and can bend; however, excessive bending alters the light's transmission path. When this occurs:
Some of the guided modes convert into radiation modes, causing light energy to leak out of the core-resulting in additional loss.
If the bending radius exceeds 5–10 cm, bending-induced loss becomes negligible.
3. Advantages of Fiber-Optic Communication
Enormous Communication Capacity: Theoretically, a single fiber can transmit 10 billion voice channels simultaneously. Current successful tests have achieved 500,000 simultaneous voice channels-surpassing traditional coaxial cables and microwave systems by thousands to hundreds of thousands of times.
Long Repeater Spacing: Due to extremely low attenuation coefficients-combined with optimized transmitters, receivers, optical amplifiers, forward error correction (FEC), and return-to-zero (RZ) modulation-fiber-optic systems achieve repeater distances exceeding thousands of kilometers. In contrast:
Traditional cables: ~1.5 km
Microwave: ~50 km
High Security & Strong Adaptability: Immune to electromagnetic interference (EMI) and corrosion-resistant because:
Optical fibers are made of quartz (SiO₂), a dielectric material that transmits light but not electricity and remains unaffected by electromagnetic fields-making them highly resistant to EMI and industrial noise.
Signals transmitted through fiber are difficult to intercept, enhancing confidentiality.
Small Size and Lightweight: With abundant raw materials and low production costs, optical fibers offer cost-effective, high-performance solutions for modern communication networks.
Part 2: Types of Optical Fibers
4. Classification by Transmission Mode:
Multimode Fiber (MMF):
Capable of transmitting multiple light modes. However, it exhibits significant intermodal dispersion, limiting digital signal frequency transmission, which worsens with distance.
Single-mode Fiber (SMF):
Transmits only one light mode, resulting in negligible intermodal dispersion, making it ideal for long-distance communication.
Comparison Between Single-mode and Multimode Fibers:
|
Comparison
|
Multimode Fiber
|
Single-mode Fiber (SMF)
|
|---|---|---|
|
Cost
|
Less expensive
|
More expensive
|
|
Transmission Equipment
|
Basic, low-cost
|
Higher-cost (laser diodes)
|
|
Attenuation
|
Higher
|
Lower
|
|
Transmission Wavelength
|
850nm–1300nm
|
1260nm–1650nm
|
|
Core Diameter
|
Larger, easier to handle
|
Smaller, more complex connections
|
|
Distance
|
Local networks (<2km)
|
Access/medium/long-haul networks (>200km)
|
|
Bandwidth
|
Limited
|
Nearly unlimited
|
Conclusion:
Multimode fiber is less expensive, though network setup costs are relatively low for this type.
Singlemode fiber delivers superior performance but entails higher initial setup costs.
Applications of Multimode and Single-mode Fibers:
Per ITU-T recommendations, communication fibers are classified into seven categories (G.651–G.657), with G.651 as multimode fiber and G.652–G.657 as single-mode fibers.
ITU Standard Fiber Types and Applications:
|
ITU Standard
|
Fiber Type
|
Application Scenario
|
|---|---|---|
|
G.651
|
Multimode
|
Short-distance transmission (Ethernet, LAN) at 850nm/1310nm wavelengths
|
|
G.652
|
Standard SMF
|
Conventional single-mode fiber for 1310nm–1550nm (access networks), FTTH, metro/long-haul networks
|
|
G.653
|
Dispersion-shifted SMF (DSF)
|
Long-haul transmission (backbone/submarine cables) at 1550nm; gradually being phased out
|
|
G.654
|
Cutoff-wavelength shifted SMF
|
Long-haul submarine cables (1550nm, no DWDM support); deployed in 5G transport networks
|
|
G.655 Non-zero dispersion-shifted SMF (NZDSF) Long-haul backbone/submarine cables (1550nm, DWDM-compatible); future use limited to line maintenance
|
|
|
|
G.656 Low-slope NZDSF A variant of NZDSF, with strict dispersion slope requirements for enhanced DWDM performance; low production feasibility
|
|
|
|
G.657 Bend-insensitive SMF Developed for FTTx; optimized for FTTH in confined spaces (e.g., indoor installations). Based on G.652 with improved bend resistance.
|
|
|
5. Optical Fiber Patch Cords/Cables:
Also termed fiber optic connector cables, these feature connectors on both ends. A patch cord comprises one or multiple fixed-length fibers with connectors, linking devices to fiber cabling (e.g., optical terminals to optical distribution boxes).
Single-mode Fiber Patch Cords: Typically yellow with blue connectors/protective sleeves; supports extended distances (up to 10km).
Multimode Fiber Patch Cords: Usually orange or gray with beige/black connectors; shorter transmission ranges (~300m or 500m depending on laser type: 62.5µm or 50µm core sources).
Multimode fibers are cost-effective for building or campus networks, while single-mode fibers excel in long-distance applications despite requiring pricier equipment. For installations under 1 km, multimode remains economically optimal.
Common Fiber Optic Connector Types: Structurally classified as FC, SC, ST, LC, D4, DIN, MU, MT-RJ; most prevalent are FC, SC, ST, and LC.
FC Connector (Ferrule Connector): Metal housing with threaded coupling; originally deployed in SANs for secure module attachment (See FC Example).
ST Connector (Stab & Twist): Metal bayonet-style coupling; common in patch panels (See ST Example).
SC Connector (Square Connector): Plastic push-pull design; snaps onto modules-made of heat- and oxidation-resistant engineering plastic (See SC Example).
LC Connector (Lucent Connector): Compact plastic connector for SFP modules; resembles a smaller SC variant (See LC Example).
Note: FC connectors (metal) offer higher durability than plastic variants and are typically used on ODF sides. Labels like "FC/PC" or "SC/PC" denote connector/physical contact polishing types in pigtail markings.
6 Tail Fiber:
Also known as tail wire or pigtail wire or fiber optic pigtail, it features a connector on one end and an exposed fiber core on the other. Primarily used to connect optical cables and fiber optic transceivers using couplers and patch cords in between. Typically housed in fiber termination boxes, pigtails are spliced to other fiber cores to simplify cable system installation and maintenance.
Pigtail Classification:
Like fiber optic patch cords, pigtails are divided into single-mode and multi-mode types, with differences in color, wavelength, and transmission distance. Multi-mode pigtails are typically orange (850nm wavelength, ~500m range), while single-mode pigtails are yellow (1310nm/1550nm wavelength, 10-40km range). By core count, they're categorized as single-core, 4-core, 6-core, 8-core, 12-core, or 24-core.
Pigtail Function:
Pigtails primarily serve as connectors. The bare fiber in optical cables is fused with pigtails to form a continuous unit, while the pigtail's connector interfaces with fiber transceivers to link fiber to twisted pair cables and network outlets. Essential fiber splicing tools include termination boxes, transceivers, pigtails, couplers, specialized strippers, and cleavers. Standard Pigtail Interfaces: SC/PC, FC/PC, LC/PC, E2000/APC, and ST/PC.
Pigtail Common types include:
FC-SC (round-to-square): FC connects ODF boxes, SC connects device ports. These were commonly used in early SBS/Optix equipment.
FC-FC (round-to-round): Typically ODF rack jumpers.
SC-SC (square-to-square): Connects optical boards between devices.
SC-LC (small square-head): Uses snap-in connectors. Found in Huawei OSN, ZTE S-series, and legacy Lucent WDM equipment.
LC-LC: Primarily for internal WDM device connections (less common).
7 MPO (Multi-fiber Push-On) Fiber Optic Cable:
MPO connectors are primarily characterized by compact design and high fiber density. Matching SC connector size but accommodating 12-24 fibers, they greatly reduce rack cabinet wiring space. Available MPO connectors include 8-core, 12-core, 24-core, 48-core, 72-core, and 144-core designs, with 12/24-core being most common.
40G MPO patch cords typically use 12-core multi-mode ferrules; 100G versions use 24-core. As multi-mode fiber, MPO cables comply with ISO 11801 classifications (OM1-OM5). "OM" stands for "optical multi-mode," denoting the fiber grade standard with varying bandwidth/distance capabilities:
OM1: 1GB Ethernet
OM3/OM4: Data center cabling for 10G/40G/100G Ethernet
OM5: Extends OM4's bandwidth capacity for 100Gb/s and 400Gb/s solutions
OM5 Fiber Advantages:
Scalability: Combines SWDM and parallel transmission technologies to support 200/400G Ethernet using only 8-core multi-mode fiber.
Cost Efficiency: Incorporates single-mode WDM technology to support four wavelengths per fiber, significantly reducing cabling costs.
Compatibility: Fully interoperable with OM3/OM4 while supporting legacy applications.
In the 400G era, OM5 demonstrates strong performance even during low-to-high speed equipment upgrades, offering exceptional application potential.

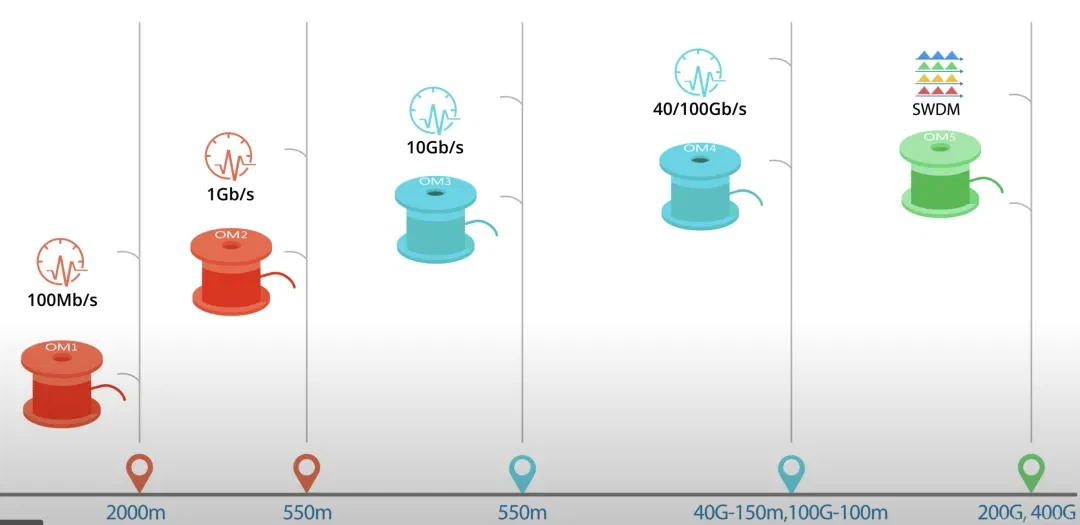

The following section presents a comprehensive comparison of these optical fibers across six key parameters: core dimensions, bandwidth, data rate, transmission distance, jacket color, and light source technology.
OM1 Fiber
Recognizable by its standard orange outer jacket
Features a 62.5 micrometer (µm) core diameter
Supports 10Gb Ethernet up to 33 meters (though primarily deployed in 100Mbps Ethernet networks)
Compatible with LED-based devices that propagate hundreds of light modes
OM2 Fiber
Maintains the orange jacket convention
Reduces core size to 50 µm while retaining LED compatibility
Extends 10Gb Ethernet reach to 82 meters (with typical use in 1Gb Ethernet applications)
OM3 Fiber
Distinguished by its aqua blue jacket
Employs the same 50 µm core but optimizes for laser-based systems with fewer light modes
Achieves 300-meter 10Gb Ethernet performance through modal bandwidth optimization
Enhanced manufacturing now supports 100Gb Ethernet at 40-100 meter distances
Remains the dominant solution for 10Gb deployments
OM4 Fiber
Fully backward compatible with OM3 (sharing the aqua blue jacket)
Engineered for VCSEL-based laser transmission
Delivers 550-meter 10Gb/s links (vs. OM3's 300m)
Enables 40/100Gb Ethernet up to 150m using MPO connectors
Commonly paired with 40G-SR4-OSFP+ and 100GBASE-SR4-OSFP28 transceivers
OM5 Fiber (WBMMF - Wideband Multimode Fiber)
Identified by its lime green (aqua green) jacket
Maintains 50 µm core compatibility with OM2-OM4
Supports ≥4 WDM channels (850-953 nm window) at 28Gbps per channel
Achieves:
• 440m in 40G SWDM4 networks
• 150m in 100G SWDM4 networks (50m beyond OM4's capability)
• 440m in 40G SWDM4 networks
• 150m in 100G SWDM4 networks (50m beyond OM4's capability)
Carries ~50% cost premium over OM4 cabling
Key OM5 Advantages
High-Density Bandwidth
Operates at 850/1300nm with quad-channel capacity (4× traditional OM1-OM4 throughput)
Combines SWDM and parallel transmission to enable 200/400G Ethernet using just 8 fiber strands
Reduces fiber count by 75% versus conventional solutions
Extended Reach
Pushes 100G-SWDM4 distances to 150m (vs. OM4's 100m limit)
Enhanced Performance
Lowers attenuation to 3.0 dB/km (from 3.5 dB/km in OM3/OM4)
Adds 953nm wavelength specifications
Seamless Integration
Maintains dimensional compatibility with existing OM3/OM4 infrastructure
Delivers superior scalability at costs/power consumption below single-mode alternatives
Poised to dominate 100G/400G/1T hyperscale data center deployments
Deployment Context
Legacy Systems: OM1/OM2 remain prevalent in building infrastructures (1Gb Ethernet)
Modern Data Centers: OM3/OM4 dominate 10G-100G high-speed backbones
Next-Gen Networks: OM5 revolutionizes 40/100Gb transmission through fiber consolidation
Physical Characteristics
Key variations exist in diameter, jacket color, light source, and modal bandwidth, as shown below:
|
Type
|
Diameter
|
Jacket Color
|
Light Source
|
Bandwidth*
|
|---|---|---|---|---|
|
OM1
|
62.5/125 μm
|
Orange
|
LED
|
200 MHz·km
|
|
OM2
|
50/125 μm
|
Orange
|
LED
|
500 MHz·km
|
|
OM3
|
50/125 μm
|
Aqua
|
VCSEL
|
2000 MHz·km
|
|
OM4
|
50/125 μm
|
Aqua
|
VCSEL
|
4700 MHz·km
|
|
OM5
|
50/125 μm
|
Lime Green
|
VCSEL
|
28000 MHz·km
|
*Modal bandwidth (MHz·km) indicates signal-carrying capacity over distance.
Performance Specifications
Multimode fiber (MMF) supports different distance ranges depending on data rate. You can select the optimal type based on your application needs. Here's how maximum distances compare across data rates:
|
Category
|
Fast Ethernet (100MbE)
|
1GbE
|
10GbE
|
40GbE
|
100GbE
|
|---|---|---|---|---|---|
|
OM1
|
2000 m (~6562 ft)
|
275 m (902 ft)
|
33 m (108 ft)
|
N/A
|
N/A
|
|
OM2
|
2000 m (~6562 ft)
|
550 m (1804 ft)
|
82 m (269 ft)
|
N/A
|
N/A
|
|
OM3
|
2000 m (~6562 ft)
|
N/A
|
300 m (984 ft)
|
100 m (328 ft)††††††††††††††††††††††
|
|
Differences Between MPO and MTP Connectors
MPO (Multi-fiber Push On) represents Japan's NTT Communications' first-generation multi-fiber connector featuring a spring-loaded latch mechanism, now recognized as the industry-standard term for such connectors produced by multiple manufacturers. In contrast, MTP® (Multi-Fiber Pull Off) is a registered trademark of U.S.-based US Conec, denoting their proprietary enhanced version of MPO connectors.
MTP® connectors maintain full compatibility with standard MPO connectors and seamlessly interconnect with MPO-based infrastructure. However, they incorporate numerous engineered improvements that enhance both mechanical durability and optical performance. The key distinction between MTP® and MPO fiber cables lies in their connectors - MTP® cables feature optimized connector designs with superior mechanical and optical characteristics.
Key Features of MTP® Connectors:
1. Removable outer casing parts for easy maintenance
MT ferrule (precision alignment component) design ensures consistent performance during production rework or repolishing
Field-reversible polarity after assembly, with ferrules passing rigorous interference testing
2. Spring-loaded floating ferrule mechanism improves transmission performance during mating, maintaining consistent physical contact under external stress
3. Stainless steel elliptical guide pins enhance alignment accuracy while minimizing guide hole wear, ensuring sustained high-performance transmission
4. Integrated metal retention clip secures the push-pull ring.
Performance Enhancements:
Prevents guide pin dislodgement
Optimizes spring tension distribution
Eliminates fiber damage from spring contact during mechanical operation
5. Ribbon fiber spacing (clearance) maximization in 12-fiber and multi-fiber applications prevents fiber damage
6. Versatile Compatibility:
MTP® connectors offer four standardized interchangeable components for diverse cable types:
MTP® connectors offer four standardized interchangeable components for diverse cable types:
Round cables with loose-tube construction
Ribbon cables featuring elliptical jackets
Bare ribbon fiber assemblies
Ultra-short boot components (occupying 45% less space) for high-density installations
8. AOC Active Optical Cable:
The abbreviation for Active Optical Cables, known as "有源光缆" in Chinese. AOC active optical cables are integrated solutions combining optical modules with optical fiber, offering plug-and-play simplicity. These cables encapsulate two optical modules with the fiber optic medium. Since the transmission relies on optical fiber, AOC modules incorporate laser components, resulting in higher costs compared to DAC. However, their sealed optical ports ensure exceptional reliability, while customizable lengths up to 100 meters present a key advantage. Essentially, AOC cables are pre-terminated optical fiber patch cords with embedded modules.
Typically limited to several hundred meters, AOC cables feature permanently integrated modules and fiber, reducing production costs by minimizing discrete optical components. While ideal for short-reach applications, they are inherently unsuitable for long-haul transmission given physical length constraints. AOC cables see extensive deployment in IDC data center environments due to their low environmental sensitivity and elimination of fiber connector cleaning requirements. Though cost-optimized without DDM functionality, their fixed transmission distances require pre-configuration during manufacturing.
AOC vs. DAC Comparison:
Direct Attach Cable (DAC) refers to copper-based high-speed cables terminated with optical modules. Widely adopted in storage area networks, data centers, and HPC interconnects, DAC solutions are gaining prominence in network infrastructure. Constructed with silver-plated conductors and foam-insulated cores, these cables employ pair-and-overall shielding for signal integrity.
DAC Cable Advantages:
Interoperability: Copper technology advancements enable hot-swappable compatibility with optical transceivers
Cost Efficiency: Copper infrastructure reduces deployment expenses versus fiber optics
Thermal Performance: Copper cores provide superior heat dissipation
DAC Disadvantages:
Restricted transmission distance
Bulkier form factor and weight complicate cable management
Susceptibility to electromagnetic interference, potentially causing signal degradation
The primary drawback of AOC solutions remains their premium pricing relative to copper alternatives.
9. The Difference Between Optical Fiber and Optical Cable
Diagram: Composition of an Optical Fiber Cable
Optical fiber is a thin, flexible medium for transmitting light beams. Most fibers require multiple protective layers before deployment, becoming what we call optical cables. Thus, the fiber forms the core of the cable-when combined with protective components and layers, it constitutes the complete optical cable. This outer protection safeguards against environmental damage.
A standard optical cable contains three elements: the fiber itself, a buffer layer, and an outer jacket. Structurally similar to coaxial cable (but without mesh shielding), its center contains a glass core that transmits light. Multiple fibers are typically bundled within a protective sheath. The core consists of quartz glass formed into a tiny double-layer concentric cylinder-fragile and prone to breakage, hence requiring protective cladding. This structural composition represents their fundamental difference.
Submarine Optical Cables: The Backbone of Global Connectivity
Submarine cables effectively enable international data transmission. As industries like cloud computing, big data, and IoT rapidly develop, these cables have become critical infrastructure for urgent global data exchange. The growing demand for Internet Data Center (IDC) interconnection and networked communication continues to drive their deployment.
Their advantages-including superior quality, clarity, capacity, security, and cost-effectiveness-make submarine cables the dominant solution. TeleGeography reports they carry over 95% of intercontinental data traffic, outperforming satellite communications in both bandwidth and economic efficiency.
Engineering Marvels Beneath the Waves
Submarine cable cores contain high-purity optical fibers that guide light via internal reflection. During manufacturing:
Fibers are embedded in a jelly-like compound for seawater resistance
The assembly is placed in a steel pipe for pressure protection
High-tensile steel wires and copper tubing are added for structural integrity
Workers finally apply a polyethylene outer layer
Diagram: Submarine Optical Cable Schematic
Part 3: Key Players in the Global Optical Fiber Industry
The top 10 companies in the global optical fiber and cable ranking are represented by four nations: the U.S. (Corning), Italy (Prysmian), Japan (Furukawa/OFS, Sumitomo Electric, Fujikura), and China (YOFC, Hengtong, FiberHome, Futong, ZTT). Chinese firms constitute half of the top 10. YOFC, Hengtong Optic-Electric, and FiberHome command substantial market shares, with YOFC ranking second globally at 12%, followed by Hengtong at 11%. FiberHome, Futong, and ZTT hold 7%, 8%, and 8%, securing fifth, sixth, and ninth places, respectively. Corning leads with 15%, while Furukawa/OFS, Sumitomo, Prysmian, and COBTEL account for 10%, 5%, 6%, and 4%.
Figure: 2019 Global Optical Fiber and Cable Market Share.
10. Major International Manufacturers:
Corning: Its Wilmington, North Carolina fiber plant-the world's first-remains among the largest.
Furukawa Electric: A Tokyo-based multinational and key player in cable systems.
Prysmian: A world-renowned leader in energy and telecom cables, headquartered in Milan, Italy.
Sumitomo Electric: Japan's premier cable producer, part of the "Denki Sanpa" (Big Three Wire & Cable Companies) alongside Furukawa and Fujikura.
Fujikura: Specializes in integrated cable solutions.
11. Leading Chinese Manufacturers:
YOFC (Wuhan, Hubei): Dominates China's optical fiber preform capacity (30+% share) and is the sole exporter of preforms, backed by strong R&D.
Hengtong Optic-Electric (Suzhou, Jiangsu): Pursues dual strategies in fiber and optical modules, leveraging marine communication growth.
ZTT (Jiangsu): Innovates with a "cloud-pipe-terminal" framework and proprietary G.654 fiber technology.
FiberHome (Wuhan, Hubei): Drives growth in optical communication and ICT sectors.
Tongding Interconnection (Suzhou, Jiangsu): Boasts full supply chain capabilities, spanning preforms, fibers, cables, and power cables.
Cobtel Precision Electronics Co., Ltd. (Dongguan): Produces fibers, cables, and semi-finished goods, including related components and raw materials processing.
Part 4: Primary Causes of Optical Fiber Failures
12 Fiber Optic Failure Causes:
1 Excessive optical cable length or bending
2 Optical cable compression or breakage, causing uneven fiber stress. When subjected to pressure or temperature changes, the coated fiber's axis forms slight irregular bends or even fractures. This causes propagation modes to convert into radiation modes, resulting in optical signal loss.
3 Improper optical cable fusion splicing
4 Core diameter mismatch
5 Filler diameter mismatch
6 Connector end-face contamination. Contaminated fiber connectors or moisture in pigtails constitute one of the most prevalent causes of optical communication failures.
7 Poor connector end-face polishing
8 Faulty connector contact, mainly at termination points like optical distribution frames or switches. This can result from operator error, faulty equipment, or aging connectors, causing loose connections that lead to signal reflection loss and leakage attenuation.
