What We Stamp for Termination Points

An RJ45 modular plug is the 8-position, 8-contact (8P8C) connector that terminates a copper patch cord, and this program anchors that contact end for the cords, jacks, and panels it meets. Contact strips stamp and plate on site, cavities mold in transparent PC beside the presses, and every Cat6A plug passes a 100% CCD vision scan plus a transmission test before it earns a bag. One purchase order covers copper, shielded, pass-through, toolless, and accessory builds, so a cord program needs no second vendor. When you buy from a direct RJ45 modular plug manufacturer, you talk to the team that cuts the cavity dies, and a spec change needs a reason, not a mood.

• Fourteen 8P8C builds from Cat5e UTP to Cat8 at 2,000 MHz, plus boots and dust caps
• 3-prong contacts as standard, 2-prong on request, brass or phosphor bronze under nickel
• Six gold grades from flash to 50 microinches over a 60 to 100 microinch nickel barrier
• Cavities for 22 to 28 AWG solid and stranded, cable outer diameters to 9.0 mm
• Pass-through bodies with one-stroke crimp-and-trim, plus toolless IDC caps that reopen

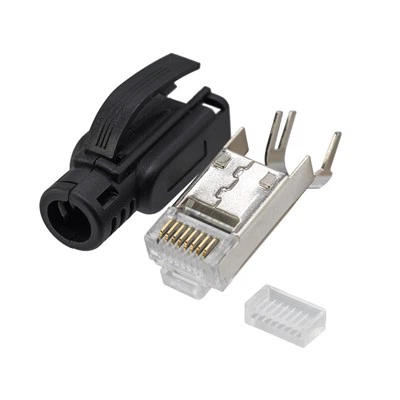

• 360-degree zinc-alloy shields with T-sleeves, tail clamps, and conductive load bars

What Arrives in Every Carton

Standard packing keeps buying simple. Plugs count out at 100 per box and 1,000 per bag, with six bags to the carton and the gold grade on every label. Every carton carries your PO number, model, and gold grade in print, and the barcode ties the bag to the batch record. Private-label programs add your logo on the shell, your bag print, and your barcode from 10,000 pieces, and the plugs terminate the cords in our patch cord line one building over. A photo of the packed pallet reaches you before the truck does.

Where These Plugs Go to Work

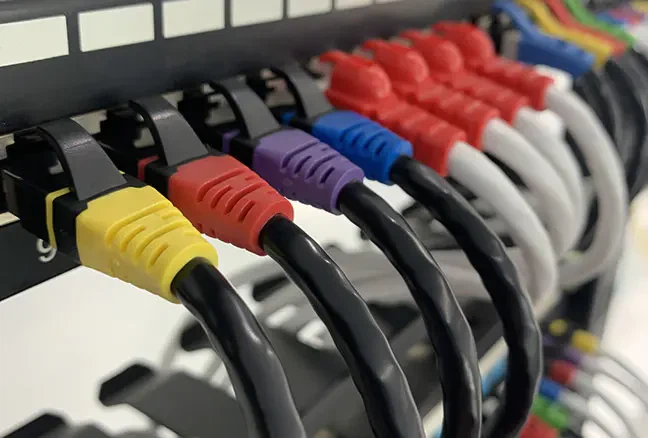

Cord factories feed the standard and pass-through cavities into high-speed crimp lines, where one-stroke trim keeps the pair twist tight to the contacts. Field crews carry the toolless builds, because the hinged cap reopens when a miswire happens on a live wall. Data-center assemblers land the Cat8 360-degree shells on 40G patch rows, and panel shops clip our patch panels full of jacks that mate with these modular connectors all day. Installers close every job with crimp tools whose dies match our cavity geometry, and the boots and caps from the accessory line finish the cord. Distributors in more than 40 countries stock these lines, and every one of them started with a sample pack from this RJ45 modular plug manufacturer.

The Cavity, the Contact, and the CCD Eye

A plug fails in dull ways. The contact wears through a flash-grade gold wash in a month, the shield floats because the shell never bit the braid, and a cavity jams the crimp line every hundred pieces. We attack all three at the design stage. Contacts stamp in phosphor bronze under a 60 to 100 microinch nickel barrier, shields cast in zinc alloy so the 360-degree path lands the braid through metal, not hope, and cavities mold in hard tool steel with a polish that feeds crimp lines all shift.

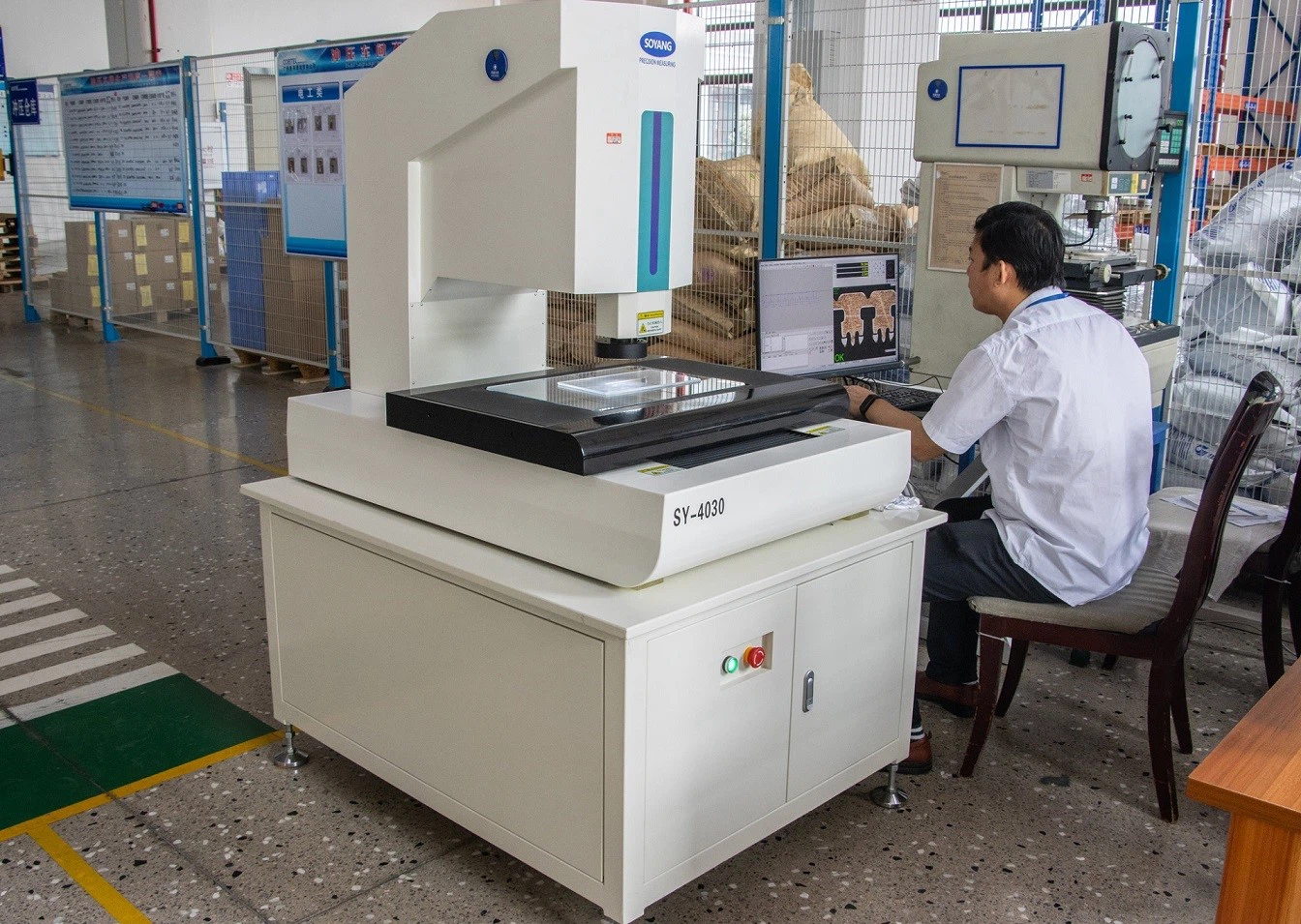

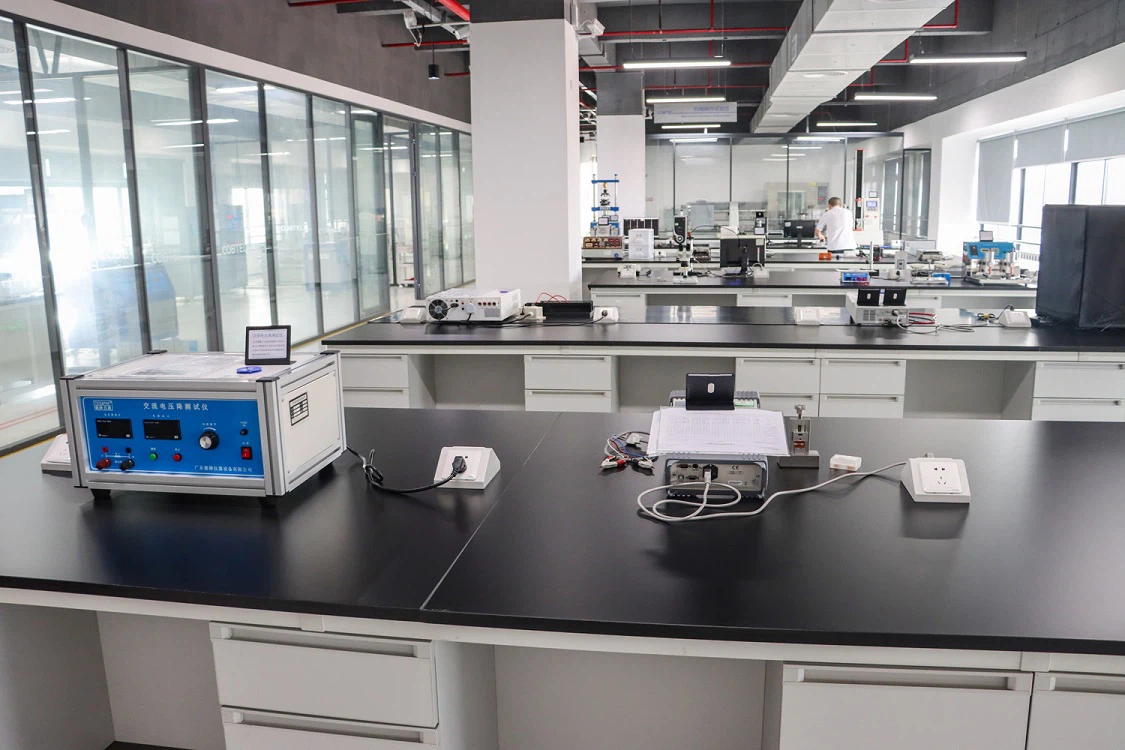

The proof numbers are specs, not slogans. Every Cat6A plug passes a 100% CCD vision scan plus a transmission test, and every batch takes an XRF reading on gold and nickel thickness. Contact resistance holds at or under 20 milliohms through 750 mating cycles, sample builds take an 89 N tensile and a 500 V AC dielectric, and the accessory line runs boots through 3,000-plus swing tests and X-ray wall checks. The batch file carries your PO number from the XRF bench to the carton.

Ask any serious RJ45 modular plug manufacturer for proof, then compare what comes back. We hand you the CCD yield summary for your lot, the XRF gold chart, the mating-cycle records, and the transmission PDFs with your PO number on them. We invite your third-party inspector to stand at the CCD gate, and the results read the same in front of them.

How to Match a Plug to the Cable

Match the plug to the cable, not the other way round. Read the conductor diameter first: 24 to 26 AWG fits the Cat5e and Cat6 cavities, 23 to 26 AWG fits the Cat6A builds, and 22 to 26 AWG fits Cat7 and Cat8. Read the jacket outer diameter second, because a shielded Cat7 jacket at 8.5 mm needs the tail-clamp body, not a short body. Pick the gold grade third: flash grade suits short patch leads in dry racks, and the 50-microinch grade suits industrial lines and coastal sites. One email with the cable drawing settles all three, and the reply carries the cavity drawing back within 5 working days.

Plug Economics, Explained in One Pass

A true-grade plug costs a fraction more and deletes the faults that poison a cord brand. One thin-gold contact turns green in a humid rack. One loose shield fails a 10G certification on camera day. One sticky cavity starves a crimp line and blows a delivery week. Tell us the categories, the AWG, and the gold grade, and this RJ45 modular plug manufacturer locks the contact, the shell, and the cavity into the drawing before you order one carton.

OEM, ODM, and OBM Programs for Your Brand

Custom programs start at 10,000 pieces for OEM shell marks, bag and box printing, and gold-grade mixes. Private-label work covers the whole family: your brand on the shell, your color on the housing, and your barcode on every bag. Deeper ODM covers a custom cavity for an odd cable outer diameter, a pass-through body with your grip shape, toolless caps with your latch feel, and boots in your house colors, delivered under NDA with source-controlled releases. OBM closes the loop for distributors: stock models ship under the COBTEL brand in shelf-ready bags with barcodes, no tooling, and single-carton minimums. Sign an NDA on day one, and our tooling engineers return drawings within 5 working days. The stamping presses, the plating line, and the CCD gates sit under our own roof, so a die revision costs days, not a month. Every RJ45 modular plug manufacturer claims OEM service; we show the CCD gate and the XRF bench that produce it.

Three Orders That Show the Range

Three programs, three labels, one pattern: buyers keep this RJ45 modular plug manufacturer on the next tender list.

What Buyers Say After the First Container

Inside the Plants

Cobtel Precision Electronics runs five manufacturing centers: the Dongguan headquarters, Guangdong Quansheng, bases in Hubei and Guizhou, and the Vietnam plant that opened with our Hong Kong entity in 2025. More than 600 employees work across eight operating centers. The Dongguan campus opened its own industrial park in late 2021, with a 41,731 square meter headquarters building on a 21.18 mu site.

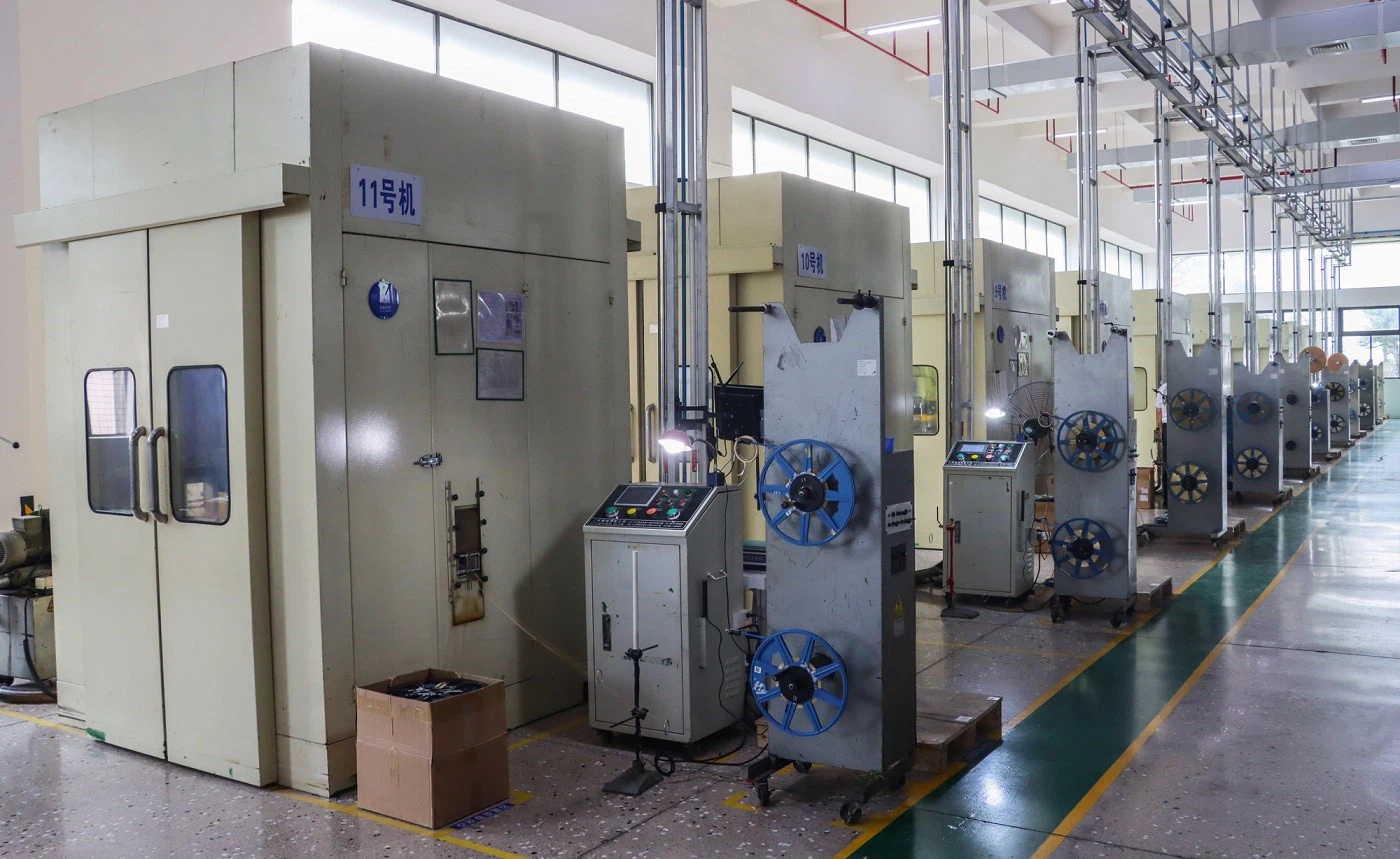

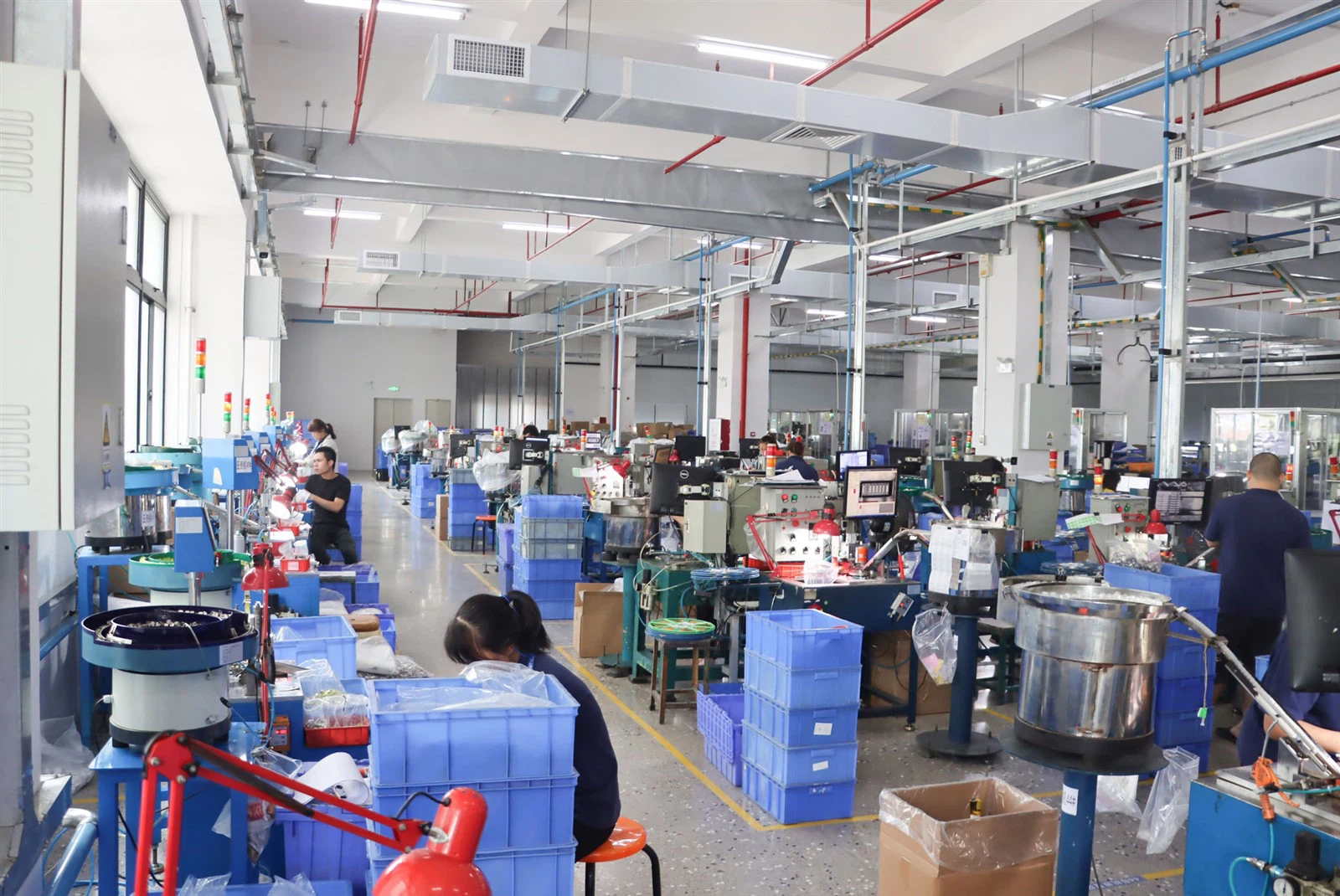

The depth of the shop floor decides what an RJ45 modular plug manufacturer can promise. The plug lines stamp five million pieces a day, with contact stamping, plating, and cavity molding under one roof, beside the 82 injection machines that mold the boots and caps. Machines we designed ourselves insert contacts at 300 pieces per minute, and daily output across the campus counts in the millions of pieces. The CCD gates sit at the end of the Cat6A line, so a cosmetic claim traces to one scan file.

Recognition followed the discipline. The state named us a National High-Tech Enterprise in 2016 and a national Little Giant in 2020, and Guangdong ranked us in its connector industry Top 100. We file 5% of sales into R&D each year, and 265 patents protect the product line, including the hinged toolless cap and the X-separator designs. Six to seven of the world's and China's top ten structured cabling brands buy from our lines directly, and their audits keep our process honest. The short version sits on our company story page; the long version is the floor behind every claim this RJ45 modular plug manufacturer makes.

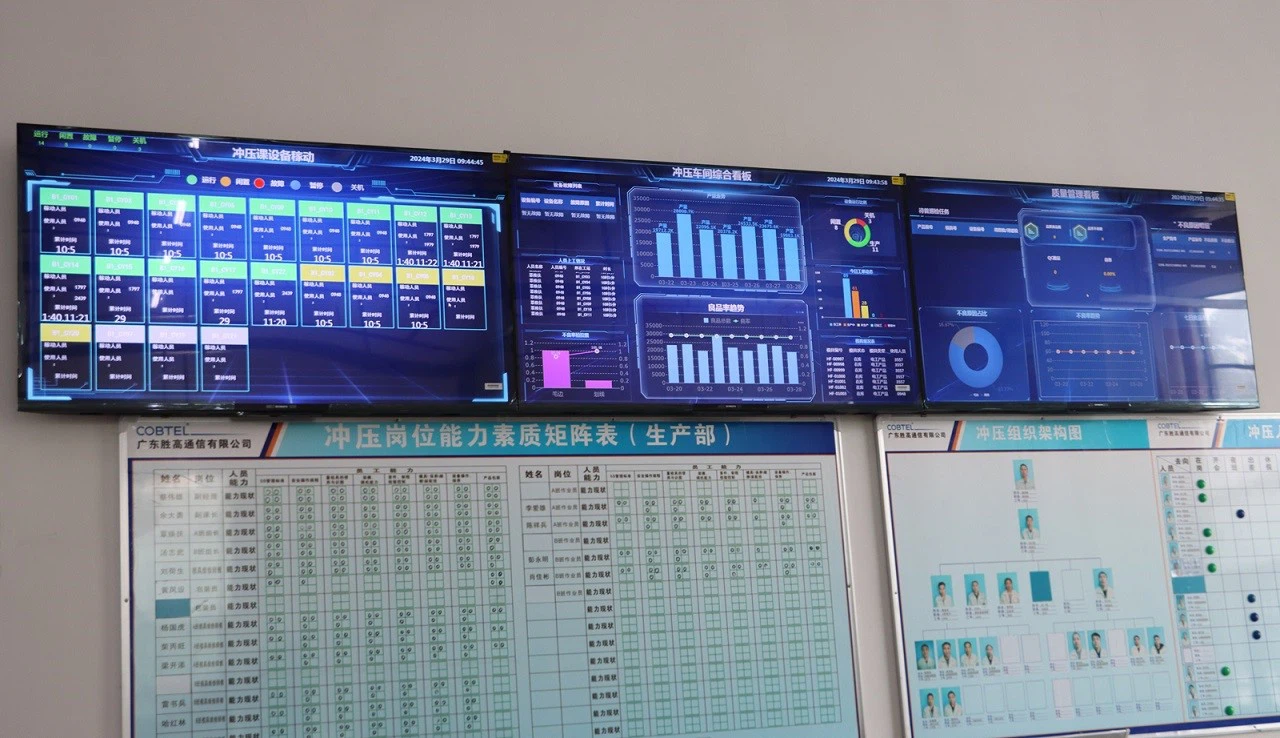

Digital systems run the same floor. ERP, MES, and WMS platforms track each batch from contact strip to sealed carton, and AGV carts move work between cells without idle handling. Workshop dashboards stream output live, and the digital management system links your order to a production plan the same day it lands. When an auditor asks for traceability, we pull the full record for a batch number in minutes, and that is the standard this RJ45 modular plug manufacturer keeps.

Six Checks Before a Carton Ships

Quality control at this RJ45 modular plug manufacturer runs as a fixed sequence, not a slogan. Every lot passes the same six gates, and the records stay on file for five years.

1. Strip incoming. Contact brass verifies against the mill certificate, and a spec break stops the reel at the door.
2. Stamp and plate. Contacts stamp on set dies, and the plating line runs to grade with XRF readings logged per batch.
3. Mold and first shot. Cavities mold on hard tool steel, and the first article checks against the drawing before the batch runs.
4. CCD and transmission gate. Cat6A plugs pass the 100% vision scan and a transmission test, and a failed cup pulls its bin for re-check.
5. Mating and tensile bench. Sample builds run 750 mating cycles, 89 N tensile, and the 500 V AC dielectric, all logged to your PO number.
6. Pre-shipment audit. Sealed cartons pass a drop check, and bags, boxes, gold-grade labels, and counts verify against your packing list.

When a buyer audits this RJ45 modular plug manufacturer, we open the stamping floor, the plating line, and the CCD gate. Bring your checklist and your inspector; nothing here needs a script.

From Inquiry to Container in Four Moves

The path from first email to loaded container follows four fixed moves, and each one has a clock on it.

1. Inquiry to quote. Send the categories, AWG range, and gold grade. A priced sheet lands in your inbox within 12 working hours.
2. Sample. One to five free bags ship in 3 to 5 days with the XRF and CCD records for the exact build.
3. Pilot. A 50,000-piece pilot run in 10 days qualifies the plugs on your own crimp lines before you commit a container.
4. Container. The full order completes in 5 to 25 days by line, with batch photos and test PDFs sent before the truck leaves.

Buyers who follow this path get predictable weeks, not promises. This RJ45 modular plug manufacturer keeps the same clocks in peak season, because the presses, the plating line, and the CCD gates sit under our own roof.

Repeat buyers move to standing rhythms. A blanket PO with monthly releases locks your price and holds press capacity. Safety stock of two to four weeks per model sits in our warehouse and ships within 48 hours of your release order. A quarterly review packs your claim rate, test data, and volume forecast onto one page. The result reads like a supply department you never had to hire.
