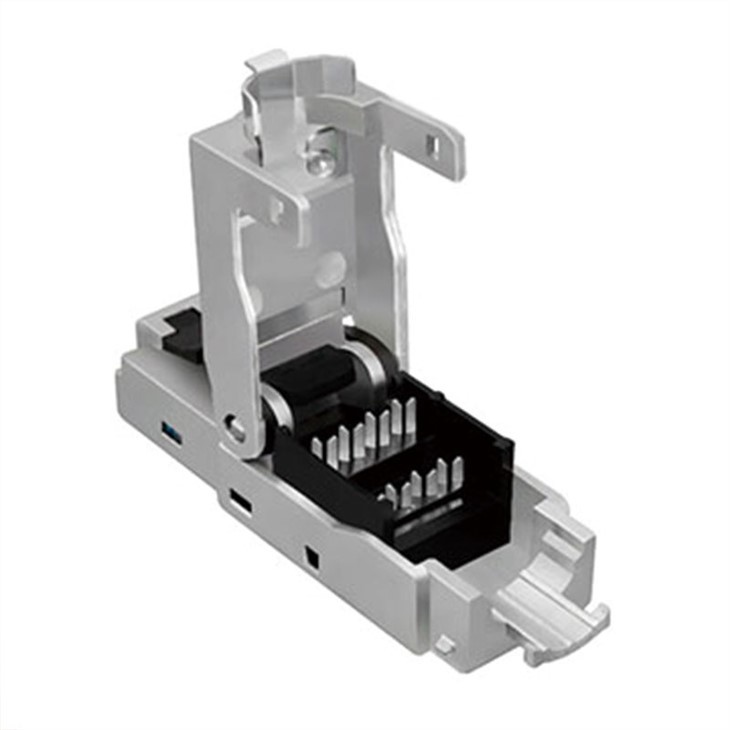

Toolless Plug
Unshielded Toolless Modular PLUG.
COBTEL Toolless plug comply with CAT5E/CAT6 patch cord testing and preformance requriements.
Housing material is plolycarbonate, flammability Rrating UL 94V-0.
The tooless connector for 22~26 AWG solid and strandred cables and can be used many times without crimping tools.
Tooless modular plugs are used for industial applications commply with more than five category patch cord testing.
Terminating cable without tools and supporting 568A/568B wire and easy installation.
Description
General Specification | |
Brand Name: | COBTEL, CNCOB, OEM |
Interface | RJ45 |
Positions/Load Contacts | 8P8C |
Cable Type | Solid/Stranded cable |
Tensile strength | 20kg min |
Housing | 94V-0 |
Material Type | Polycarbonate |
Gold plating | 50U" |
Plug Shield Plating Material | Nickel |
Environmental Specifications | |
Maximum Operating Temperature | 85°C |
Minimum Operating Temperature | -40°C |
Compliance/Certifications | |
RoHS | Compliant |
REACH | Compliant |
IEC | Compliant |
CE | Compliant |
ISO 9001:2015 | Compliant |
UL | Compliant |
Intellinet RJ45 modular plug is 8 positions and 8 conductors and is designed for industrial applications. It is easy to operate without using a crimping tool
It is easy to insert the leads following the color coding and press down the lid.
You will get fast data transfers after finishing the easy installation.
The Toolless plug is manufactured with high-impact clear poly-carbonate 100% imported from Japan Tenjin PC, ensuring a CRYSTAL BRIGHT appearance.
