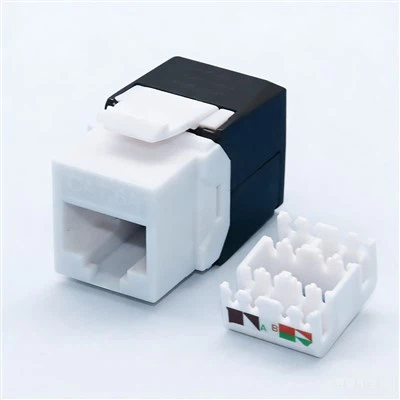

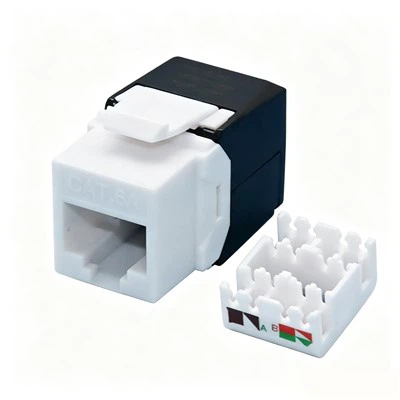

CAT6A UTP Keystone RJ45 Jack Coupler With Dust-proof Door
RJ45 UTP Cat.6A keystone jack, 180-degree Toolless for data center, working area, managing room, equipment room, etc. Structured cabling transmitting data, voice, and video.Applied for Cat.6A Classes. Suitable for working area, central room, managing room, equipment room, and subsystem applications
Send Inquiry
Add To Inquiry
Description
|
Product Name
|
RJ45 UTP Cat.6A keystone jack, 180-degree Toolless
|
|
Material
|
PC UL94V-0
|
|
Place of Origin
|
CHINA
|
|
Brand Name
|
HY-CONNECT
|
|
Model Number
|
HKJ-804M-C6A
|
|
Color
|
white and black
|
|
Usage
|
Data center, working area, managing room, equipment room, etc
|
1. Technique Characteristics
Material of plastic parts: PC UL94V-0
Standard 110 and LSA dual-use punching tools make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics
Phosphor bronze with nickel plated, connector pins with golden plated 3μ
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available
Termination caps material UL94V -2
Working temperature: -25℃~60℃
4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data, voice, video
Applied for Cat.6 and E Classes
Suitable for working area, central room, managing room, equipment room, and subsystem applications
Material of plastic parts: PC UL94V-0
Standard 110 and LSA dual-use punching tools make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics
Phosphor bronze with nickel plated, connector pins with golden plated 3μ
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available
Termination caps material UL94V -2
Working temperature: -25℃~60℃
4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data, voice, video
Applied for Cat.6 and E Classes
Suitable for working area, central room, managing room, equipment room, and subsystem applications
