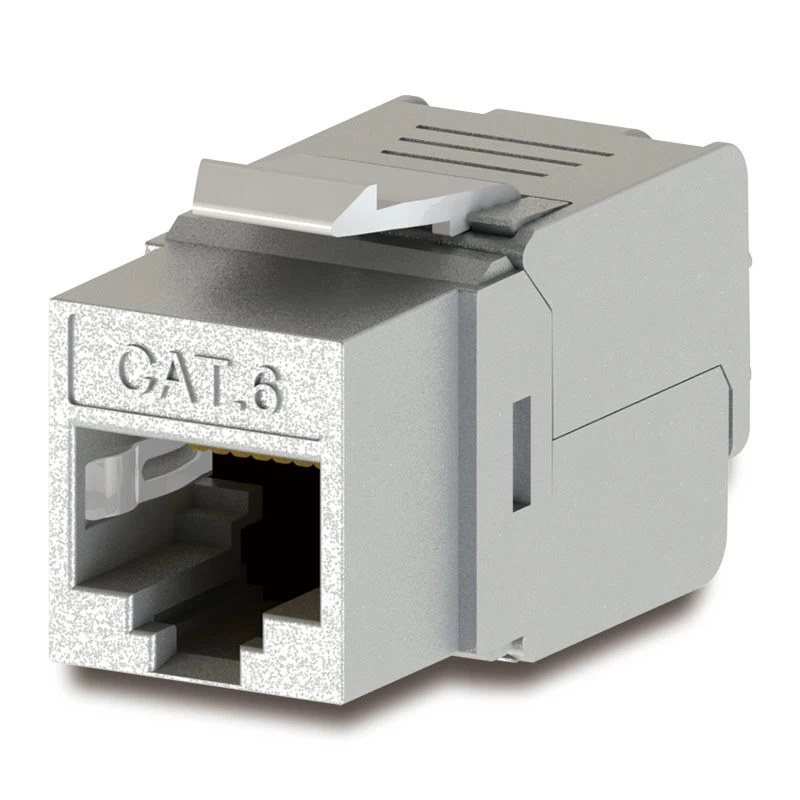

CAT6 Shielded RJ45 female connector
Trusted connections for your network
COBTEL CAT6 Keystone Shielded is a Component Level Jack. It can pass POE test of 60w and 100w, and adapt to shielded Ethernet cables from 26 to 23 AWG. COBTEL CAT6 Keystone Shielded Jacks RJ45 exceeds all performance parameters specified in the Category 6 standard.

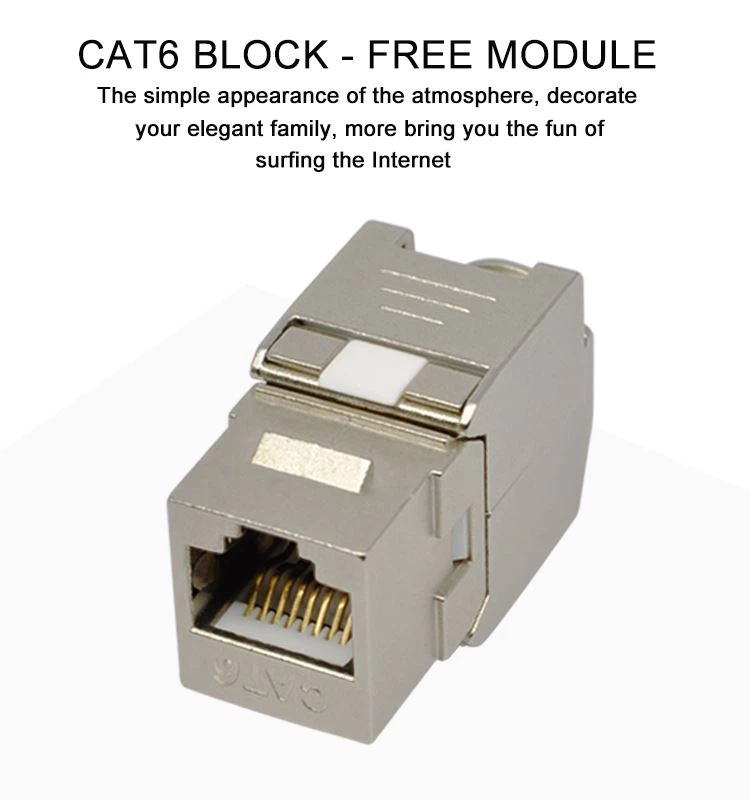

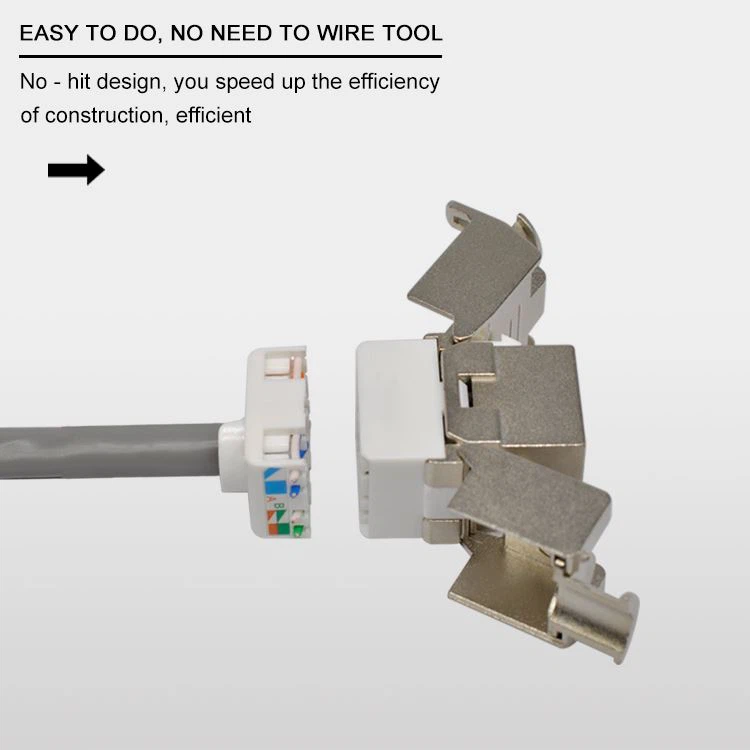

CAT6 Keystone Shielded is a tool free RJ45 Jack. And the assembly degree is 180 degree. It is mainly made of zinc alloy, pc and phosphor bronze. It also has the feature of snap-in to enhance the stability of connection.
Description
Specification
Product Name | CAT6 Keystone Shielded |
Application | Ethernet connection |
Connector Type | RJ45 |
Main Material | Zinc alloy, PC, phosphor bronze |
Bandwidth Support | 250Mhz |
Color | Silver |
Item Size | 35.1x16.5x20.1cm |

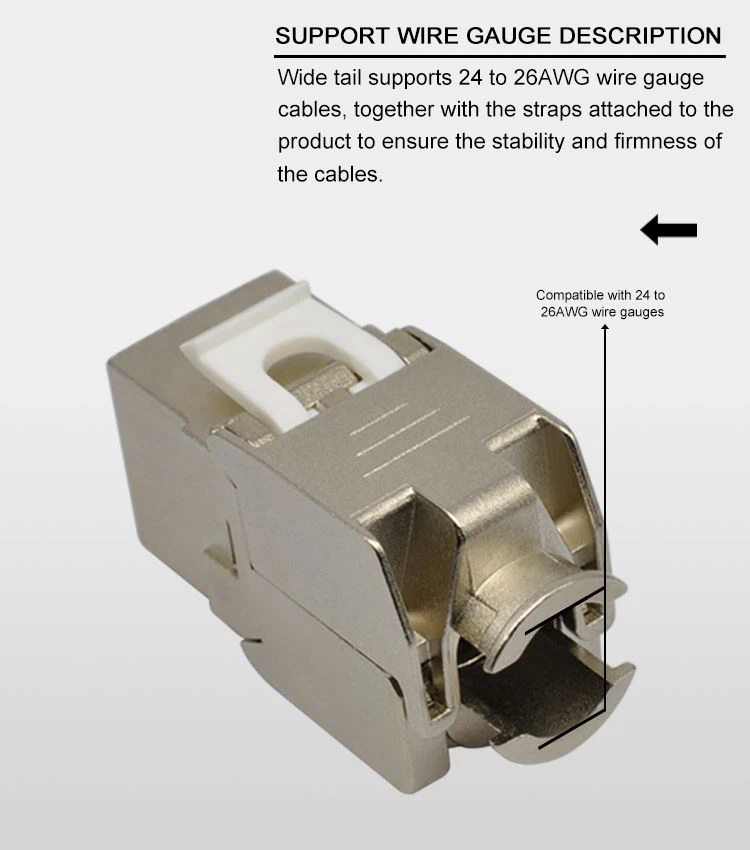

Wire cable | 24~22awg solid or stranded |
Storage Temperature | -40°C to +70°C |
Working Temperature | -10°C to +60°C |
Features

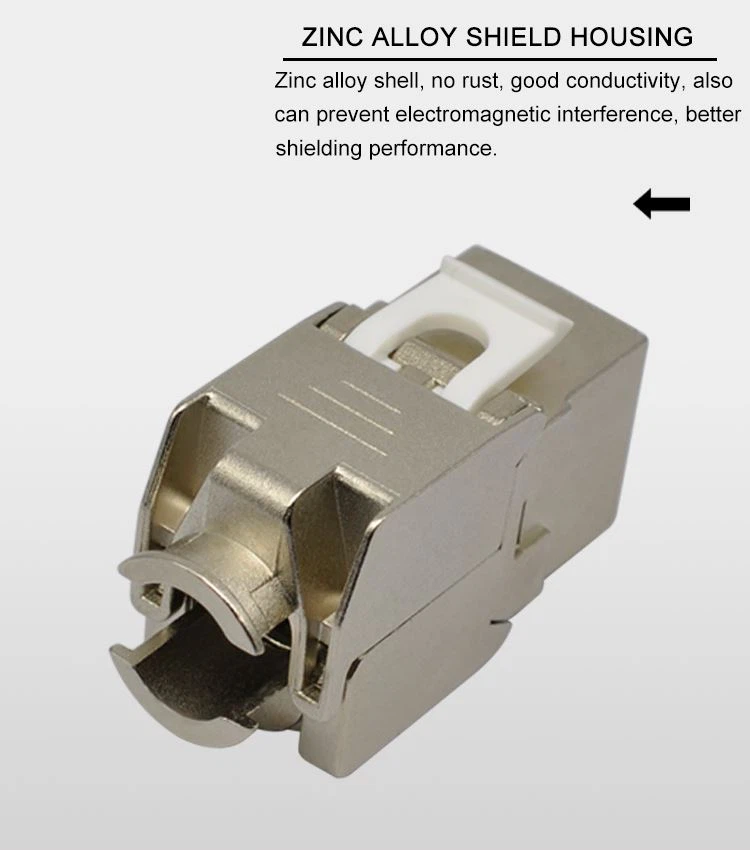

●Full zinc alloy jacket RJ45 Shielded for Category 6 channel network, a robust die-cast casing provides superior shielding and alleviates external crosstalk;
●Support Cat6 automatic negotiation to be compatible with hybrid network server bandwidth from 10Mhz to 250Mhz;
●DC modules can be wired for T568A or T568B wiring;
●Cat6 Jack allows cable diameter 0.57 0.01/-0.03MM;
●Fit all 86 face plate.
