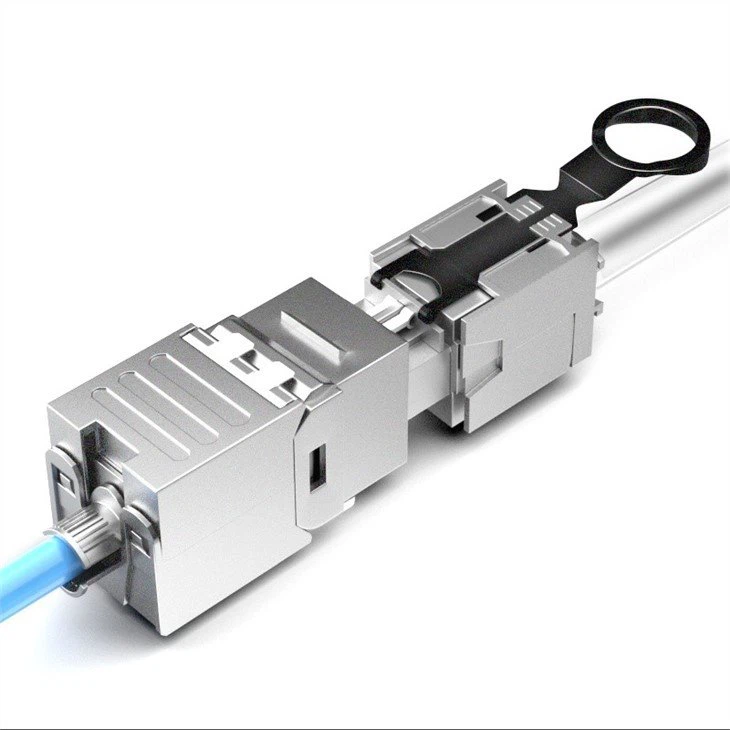

CAT6A Tool Free Shielded Keystone Jack
Trusted connections for your network
COBTEL CAT6A shielded keystone jack is tested up to 500MHZ,10Gbps.
Housing of our CAT6A shielded keystone jack is zinc die-casting with nickel plated, and RJ45 contact of our CAT6A shielded keystone jack is made of phosphor bronze and its contact area with 50 micro-inch gold plated. Our jack is perfect for both solid and stranded Ethernet cables from 26 to 23 AWG.
Description
Specification
Product Name | CAT6A Shielded Keystone Jack |
Application | Ethernet connection |
Connector Type | RJ45 |
Main Material | Zinc alloy, PC, phosphor bronze |
Support | 500Mhz,10Gbps |
Color | Silver |
Product Size | 37.8x16.3x19.1cm |
Wire Range | 26 to 23 AWG solid or stranded Ethernet cable |
Sheath Range | 0.19~0.35 inches (4.9~9.0mm) |
Working Temperature | -10°C to +60°C |
Storage Temperature | -40°C to +70°C |
Features
●Full zinc alloy CAT6A Shielded Keystone Jack for Category 6A channel network, a robust die-cast casing provides superior shielding and alleviates external crosstalk;
●50 micro-inch gold plated on plug contact area;
●Support Cat6A automatic negotiation to be compatible with hybrid network server speeds from 1gig to 10gig;
●IDC modules can be wired for T568A or T568B wiring;
●CAT6A shielded keystone jack allows cable diameter 0.64 0.01/-0.03MM
●Fit all 86 face plate.
