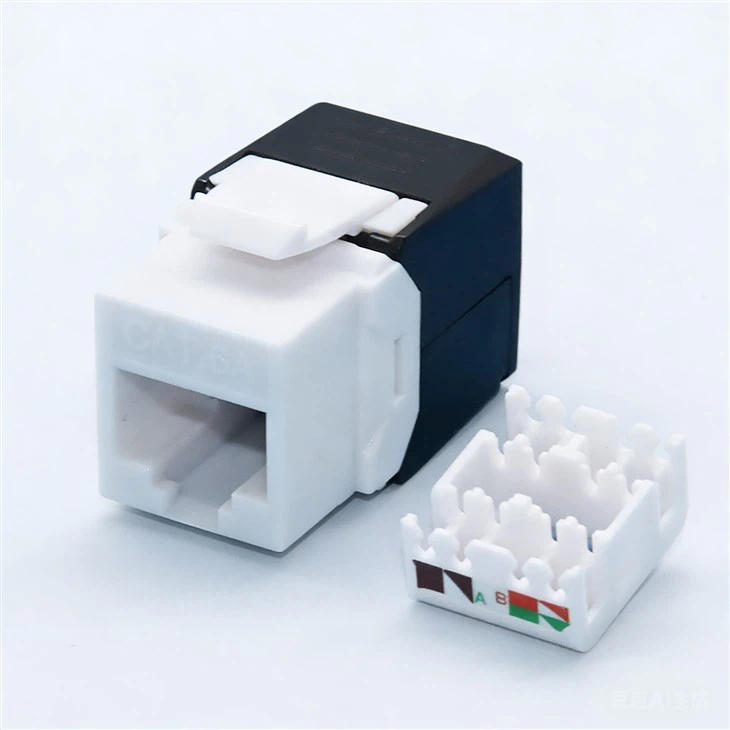

CAT6A UTP Keystone Jack
COBTEL CAT6A UTP keystone Jack toolless for RJ45 network connections. It is a reduced size tool-less terminated RJ45 jack that allows multiple cable entry orientations when the jack is installed in a standard depth back box. It supports options both flush shutters at the outlet and angled...
Description
COBTEL CAT6A UTP keystone Jack toolless for RJ45 network connections.
It is a reduced-size tool-less terminated RJ45 jack that allows multiple cable entry orientations when the jack is installed in a standard depth back box. It supports options for both flush shutters at the outlet and angled shutters often used with keystone jacks.
The low-profit design is suitable to install a 0.5U 24-port patch panel and a 1U 48 Port.
The housing is easy to be opened like a butterfly to reveal the IDC termination points.
Specification | |
Product Name | CAT6A UTP Keystone Jack |
Housing Material | ABS High-impact |
RJ45 Contacts : | 50U Micro-inch Gold Plating |
Category | 6A(IEC) |
IDC Terminals | Nickel Plated Phosphor Bronze Alloy |
Fire Safety | UL94V-0 |
Connector Type | RJ45 8(8) |
Conductor Type | Solid or Stranded cable |
Suitable Conductor | 23 to 26 AWG |
Operation Temperature | -10°C~60°C |
Storage Temperature | -40°C~70°C |
RJ45 Life | 750cycles min |
ANSI/TIA 568-2.D | Balanced Twisted Pair Telecommunications Cabling and Assembly Standard |
UL94V-0 | Burning stops within 10 seconds after two applications of 10 seconds each of a flame to a test bar. |
RoHS | Compliant with the Restriction of Hazardous |
Features:
l Supports 10 Gigabit Ethernet applications.
l Tool-free termination design.
l ISO/IEC, ANSI/TIA, RoHS, UL compliant.
l UL94V-0 rated flame retardant plastic.
l Available in several colors to match housing.
l 50 micro-inch gold plating on the jack contacts
The Drawing of CAT6A UTP Keystone Jack
Click and browse more Cat6A keystone jack
To see our factory's production capacity and domestic and international certification. Click About Us
