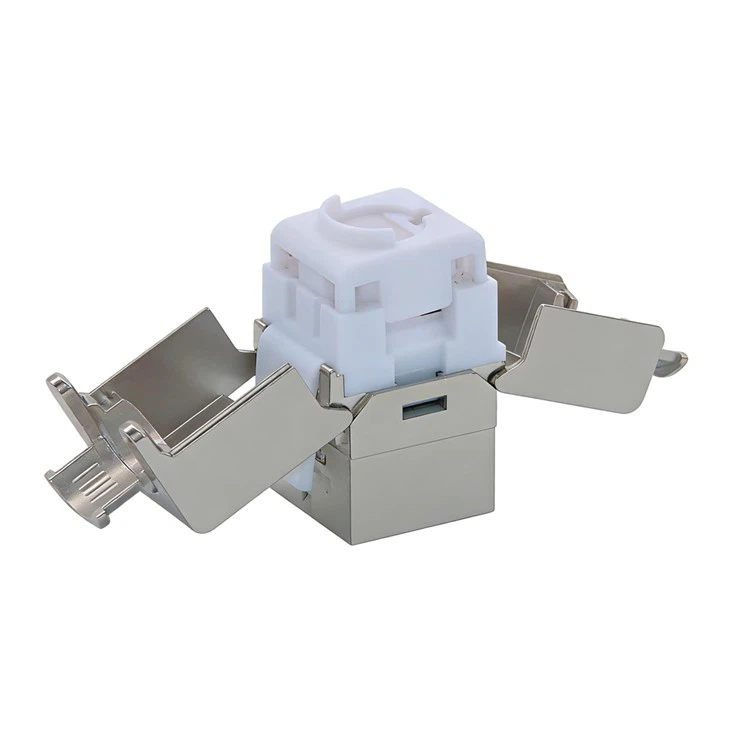

Cat6A FTP RJ45 Keystone Jack

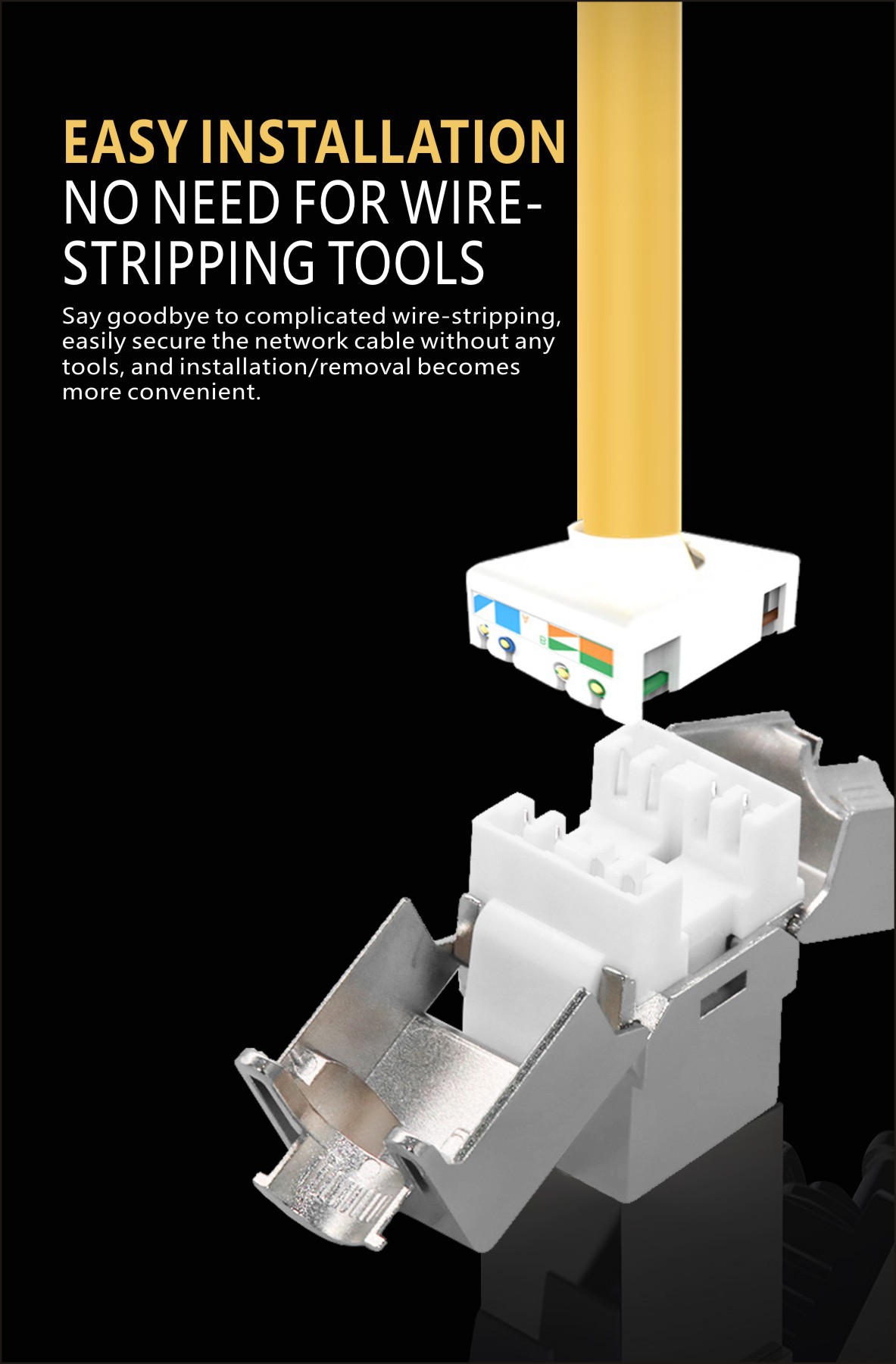

COBTEL Cat 6A Keystone Jack exceeds the requirements of ANSI/TIA 568-C.2, and the quality is guaranteed and trustworthy. It supports the construction of Gigabit Ethernet (1000Mbps) and supports the upcoming 2.5Gbps network requirements. In a specific wiring environment, it can support a maximum transmission rate of 10Gbps. The built-in crosstalk compensation PCB greatly improves the NEXT (near-end crosstalk) margin, and the transmission frequency is increased to 250MHz. Tool-free structure design, easy and fast installation without any wiring tools, installation can be completed with bare hands, and network wiring is simple and fast; universal standard design, supports T568A/B terminal wiring sequence, and the wiring terminal is compatible with 22-26AWG cables.

Features:

1. Using the phosphor bronze continuous gold plating process, the thickness of 24K gold plating is up to 50u〃, and the plugging life is more than 800 times. Corrosion-resistant and plug-resistant, while effectively extending the service life of the keystone jack, it ensures the stability of data transmission.

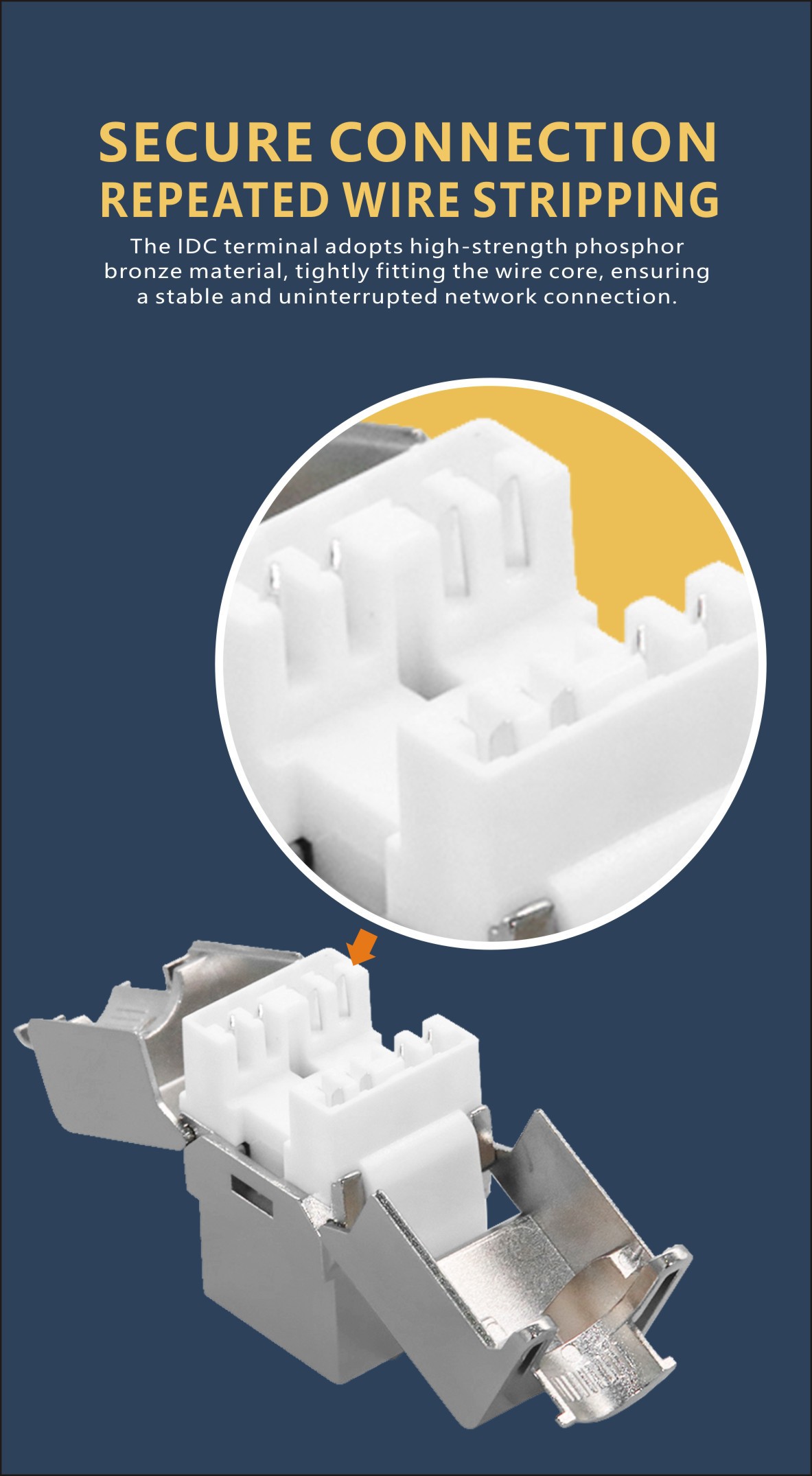

2. High-hardness phosphor bronze wire-bonding terminals, plated with soft nickel 100u〃 and plated with matte tin 200u〃, can pierce the insulating layer strongly, and at the same time effectively prevent the contact surface of the terminal from oxidizing and reduce the contact resistance of the wire. The terminal is compatible with 22-26AWG cables, and the number of wire-bonding is > 200 times.

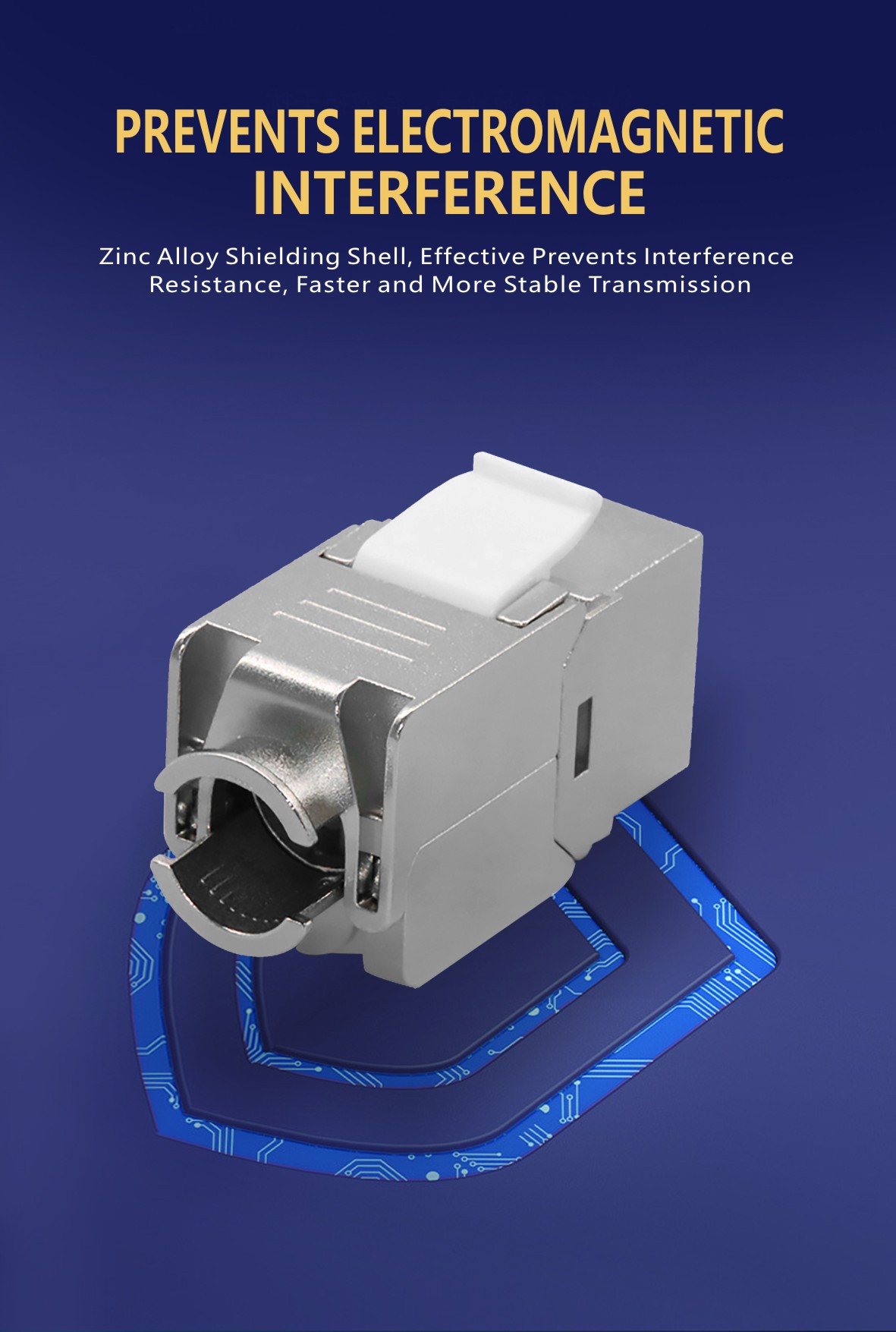

3. The shell adopts a zinc alloy integral molding process, which is more tightly packaged and shielded more thoroughly. The interior is made of new high-pressure flame-retardant materials, which have good impact resistance, high and low-temperature resistance; safe and flame-retardant, with a fire rating of UL94V-0.

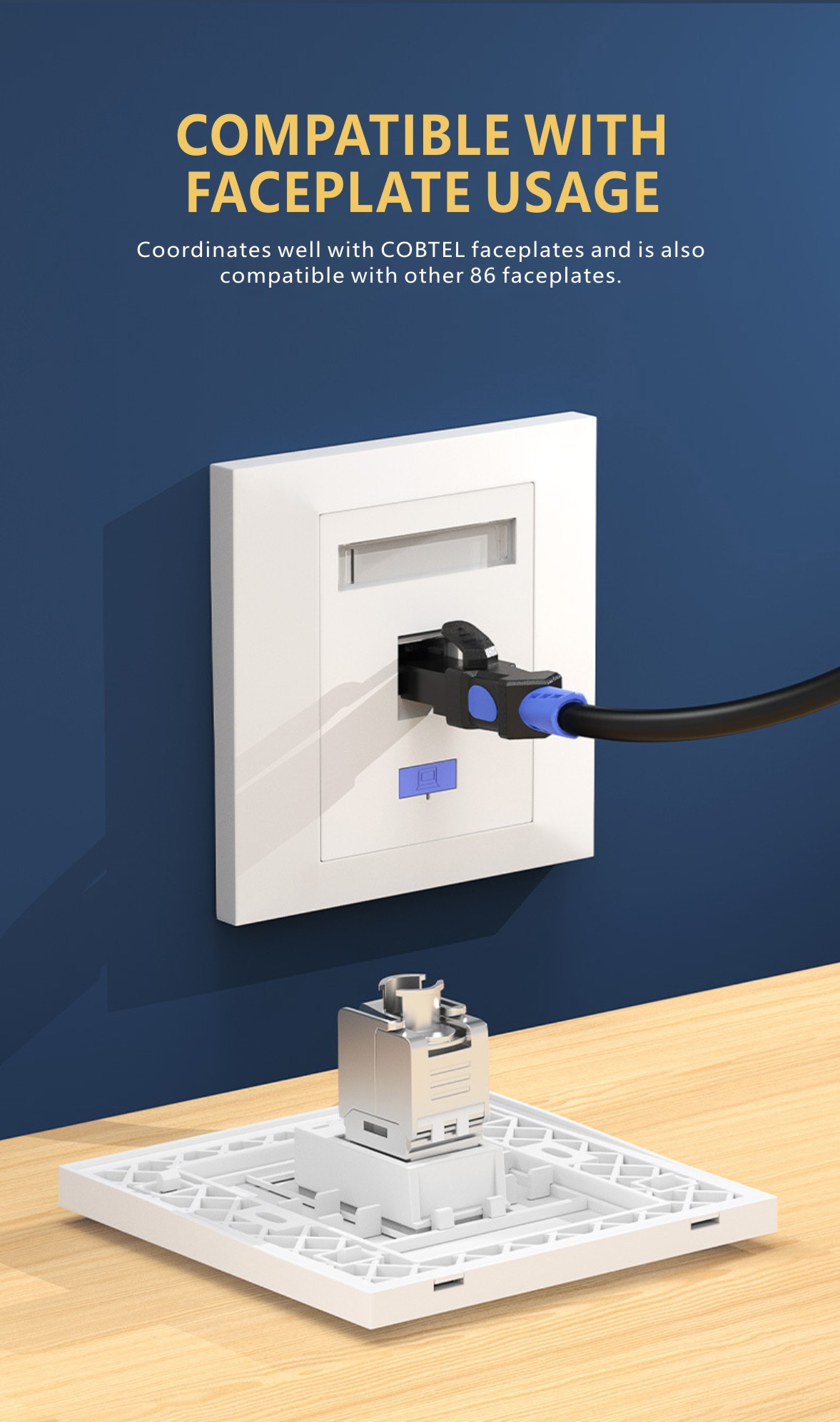

Effectively compatible

can be matched with 86 type panel and empty distribution frame,

with strong compatibility, stable and efficient

Click and browse more Cat6A Keystone Jacks

To see our factory's production capacity and domestic and international certification. Click About Us
