CAT5E UTP Rj45 Socket Dust-proof Door Coupler
RJ45 UTP Cat.5e keystone jack, 180-degree Toolless for data center, working area, managing room, equipment room, etc. Structured cabling transmitting data, voice, and video.Applied for Cat.6 and E Classes. Suitable for working area, central room, managing room, equipment room, and subsystem applications
Send Inquiry
Add To Inquiry
Description
|
Product Name
|
Cat5e rj45 keystone jack
|
|
Material
|
PC, Phosphor Bronze, Circuit Board
|
|
IDC material
|
Phosphor bronze contact
|
|
Package
|
1 Pcs /bag
|
|
OEM/ODM
|
Yes
|
|
Application
|
Networking/cabling system
|
|
Certificate
|
CE, ROHS
|
|
Pin
|
8 Pin
|
Product Characteristics and Packaging :

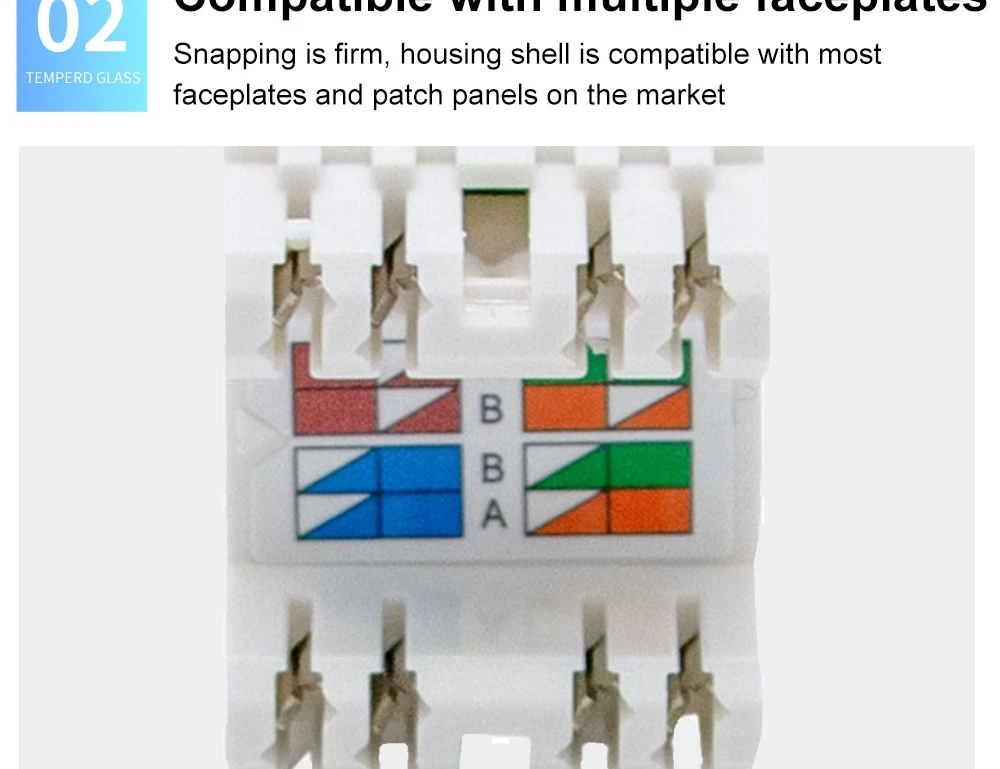

Housing: high-temperature thermoplastic Covered with metal that provides well anti-EMI performance Contract: phosphor bronze, phosphor bronze with 6 to 50 u " gold-plate. Available in Cat 5e,T568A, T568B wiring .meeting every cabling requirement Accept 22-26 AWG solid with an insulation diameter of 0.4-0.6 mm Easy to be terminated Low attenuation loss and high return loss . High reliability and superior performance.
|

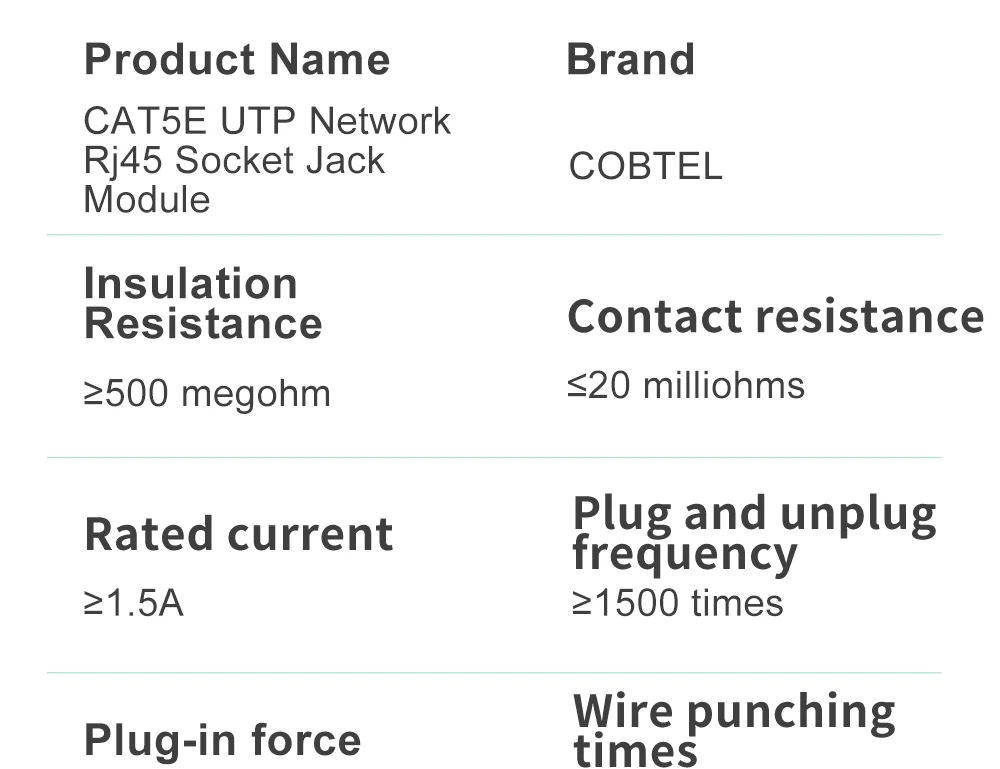

Electrical
|
Current Rating: 1.5 Amps
Insulation Resistance: ≥ 500 MΩ
Contact Resistance: ≤ 20 mΩ DC Resistance: ≤ 0.3Ω DC/AC Volt Endurance: DC 1000V /AC 750V 1min |
|
Mechanical
|
Mating cycles: 750 cycles minimum
IDC mating cycles: 200 cycles minimum
Operating temperature: -10~60℃ Operating humidity: 10%~90%RH Storage temperature: -40~68℃ |
|
Physical
|
Plastic Parts: High-quality engineering plastic
PCB: FR-4, 1.2mm thickness Jack Wire: 0.35 mm phosphor bronze gold over nickel plating IDC Conductor: 0.5 mm phosphor bronze, tin-plating Contact compatibility: Accommodate 23 to 26 AWG solid TIA Cat.5e Perm.Link Test: Worst Pair NEXT Headroom ≥ 5.0 dB |
|
Standards Verification
|
ANSI/TIA-568.2-D;
ISO/IEC TR 11801-9901-2014;
YD/T 926.3-2009; ISO/IEC 60603-7-41 |
