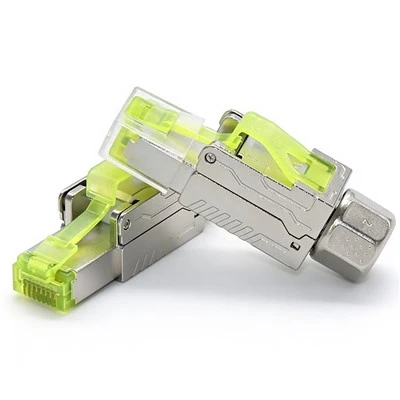

Angled Toolless RJ45 Plug
COBTEL CAT8 360° STP Toolless RJ45 Connector could easily be connected to all common LAN cable types. It is designed for field assembly without special tools and suitable for for Power over Ethernet (PoE, PoE plus, UPoE and 4PPoE), HDBaseT or other multimedia applications as well as for industry...
Description
COBTEL CAT8 360° STP Toolless RJ45 Connector could easily be connected to all common LAN cable types. It is designed for field assembly without special tools and suitable for for Power over Ethernet (PoE, PoE plus, UPoE and 4PPoE), HDBaseT or other multimedia applications as well as for industry standards such as PROFINET and EtherNet/IP.
Specification | |
Product Name | CAT8 360° STP Toolless RJ45 Connector |
Contact Holder | PC, UL94V-0 |
Interface | RJ45,8P8C |
Contacts | Phosphor Bronze |
Contact plating | 50 micro-inch Gold |
IDC | Phosphor Broze |
Housing | Zinc Die Casting |
Mating Cycles | ≧750 |
Transfer Speeds | Up to 40 Gbps |
Max Operating Frequency | 2000MHz |
Contact Compatibility | Accommodates 22 to 24 AWG |
| Cable Type | Solid or Stranded |
Cable Sheath OD | 6.5mm to 8.5mm |
Operation Temperature | -10°C~60°C (-40 - 140°F) |
Storage Temperature | -40°C~70°C (-40 - 158°F) |
Operating Humidity | 10% to 85% RH |
Current Rating | 1.5A |
Insulation Resistance | 500mΩ Minimum |
Dielectric withstanding voltage | 1,000 VDC/700 VAC |
Contact Resistance | 20mΩ Maximum |
Standards | CE/ROHS/REACH/UL |
Features:
CAT8 RJ45 plug connector is suitable for wire 22~24AWG;
Fits cable sheath diameter 6.5mm ~ 9.0mm;
Supports network applications up to 25Gbase-T and 40Gbase-T;
It is suitable for PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE;
Without need of any special tools, the LAN cable can easily be assembled;
Wire connection stranded wire and solid wire CAT8 22~24AWG, cable jacket O.D 7.5~8.5mm;
Wire connection stranded wire and solid wire CAT6A/CAT7 23~26AWG, cable jacket O.D 7.5~8.5mm;
CAT8 360° STP Toolless RJ45 Connector Guide
