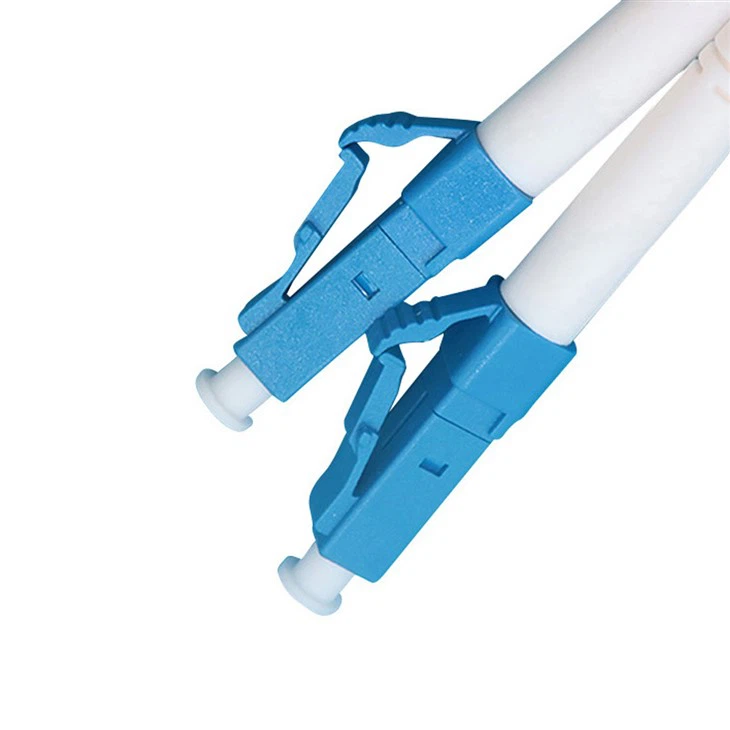

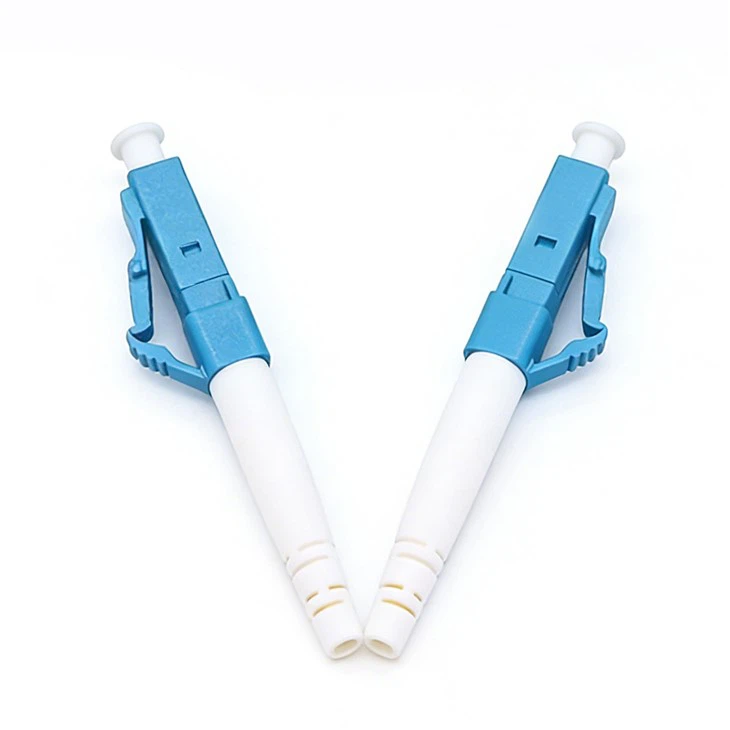

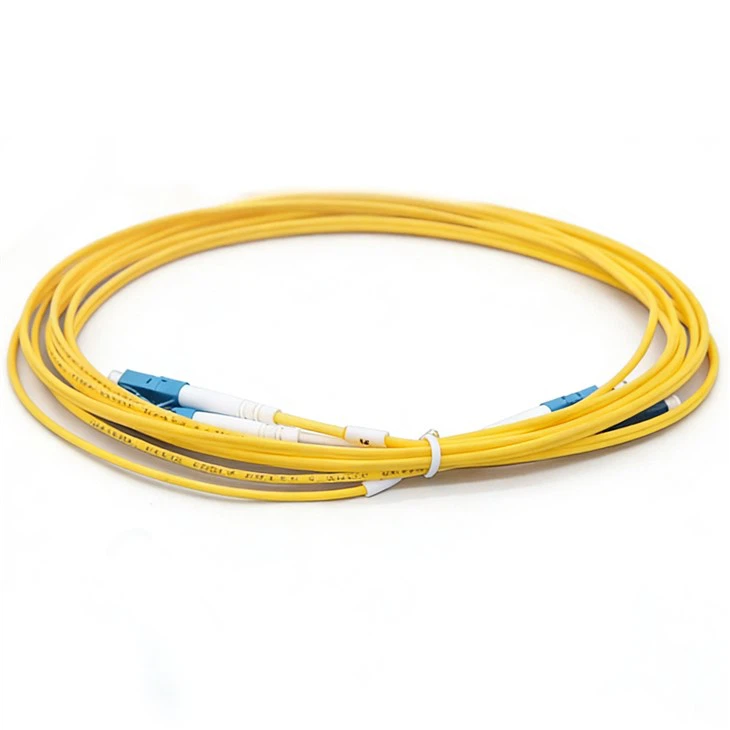

LC/LC Fiber Optic Cable Patch Cord Drop Cable

Basic Info:



Model NO.:  MPO/MTP LC/SC/ST/FC

Core:  Multicore

Certification:  RoHS, ISO9001

Brand:  ODM

Sheath Material:  PVC.LSZH

IEC 61754-7 Compliant

Compact Design, up to 24 Fiber Ribbon

Cable Jacket Color:  Blue, Green, Aqua, Red, Magenta, and Beige

Adapter Type:  MPO

Channel:  2 /4/6/8/10/12/16/ 24

Housing Color:  Aqua, Green, Beige, Yellow, Magenta

Boot Color:  Black

Boot Type:  Round, Flat

Polishing:  APC, PC

Cable Jacket Material:  PVC, LSZH, Ofnr, Ofnp, PE

Hybrid Connector:  LC/FC/SC/ST

Cable Type:  Round/Ribbon

Cable Diameter:  3.0mm/4.5m/6.0mm

Fanout Length:  0.5m/1m/2m

Transport Package:  Single Pack

Specification:  CE, RoHS, SGS

Origin:  Made in Shenzhen China

HS Code:  85447000

Production Capacity:  500/Prt Month



Product Description:



With 35 years of history, COBTEL is a well-established brand popularly accepted in the worldwide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connectors, adapters, attenuators, splitters, and WDM serious. For more detail, please check our website cobtel.com.

In case of need, please do not hesitate in contacting us.



SPECIFICATIONS:

	Single-mode	Multimode
Insertion Loss	Low Los ≤ 0.35dB	Low Los ≤ 0.35dB
	Standard Loss ≤ 0.7dB	Standard Loss ≤ 0.5dB
Return Loss	≥ 55dB	≥ 30dB
Durability	<0.3dB typical change, 200 matings	-
Operating Temperature	-40 to +85 ºC	-40 to +85 ºC





MPO Optical Patch-Cord


COBTEL MPO solution is designed for high-density fiber

connections and high-speed data center cabling.

We provide an economical highly reliable solution for

your fiber network systems.


APPLICATIONS:

- CATV, and Multimedia

- Gigabit Ethernet

- Industrial and medical

- Active device interface

- Premise installations

- Interconnection for O/E modules

- Data processing networks

- Telecommunication networks

- Optical switch interframe connection

- Asynchronous Transmission Mode (ATM)


FEATURES:

- IEC 61754-7 Compliant

- Compact design, up to 24 fiber ribbon

- Polishing does not require diamond film

- Precision molded MT ferrule

- Telcordia GR-1435-CORE compliant

- Low insertion loss and back reflection loss

- High-precision guide pins for exact alignment
