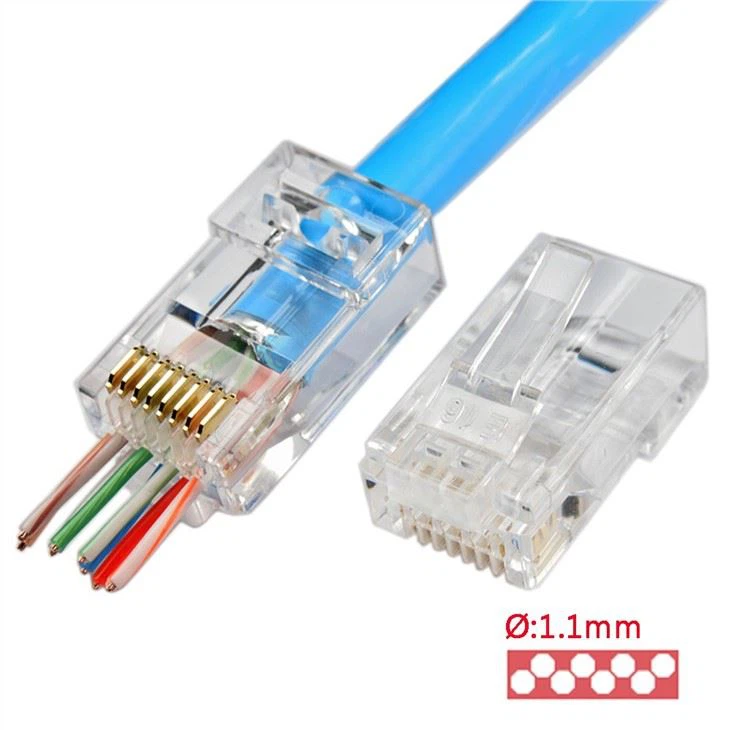

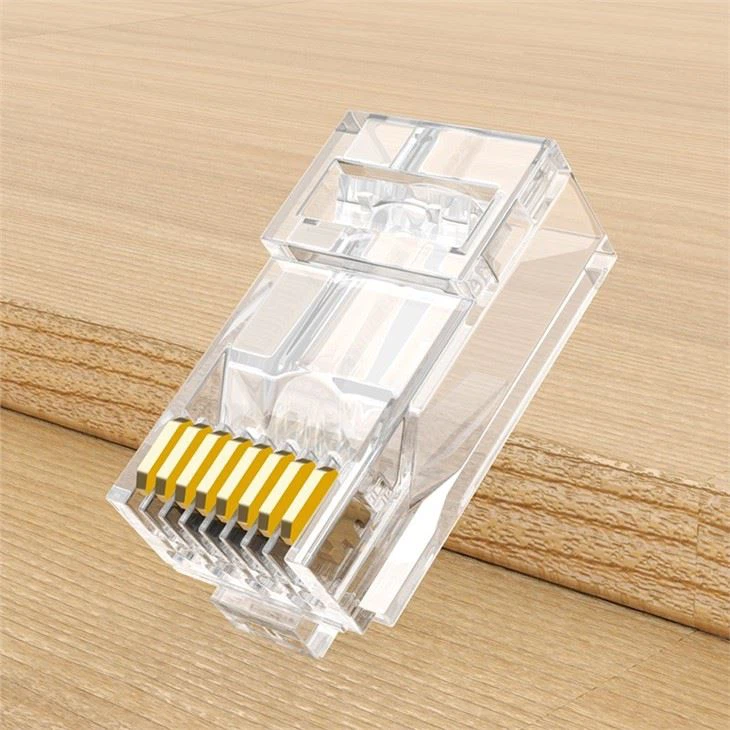

Cat6 Pass Through RJ45 Connector
COBTEL Cat6 Pass Through RJ45 Connectors allows push-pull method to hold the cable jacket in the plug as much as possible to minimize crosstalk. Triple prong gold plated contacts will improve the performance by 33% because the contact with wire core is more sufficient, and the high-speed...
Description

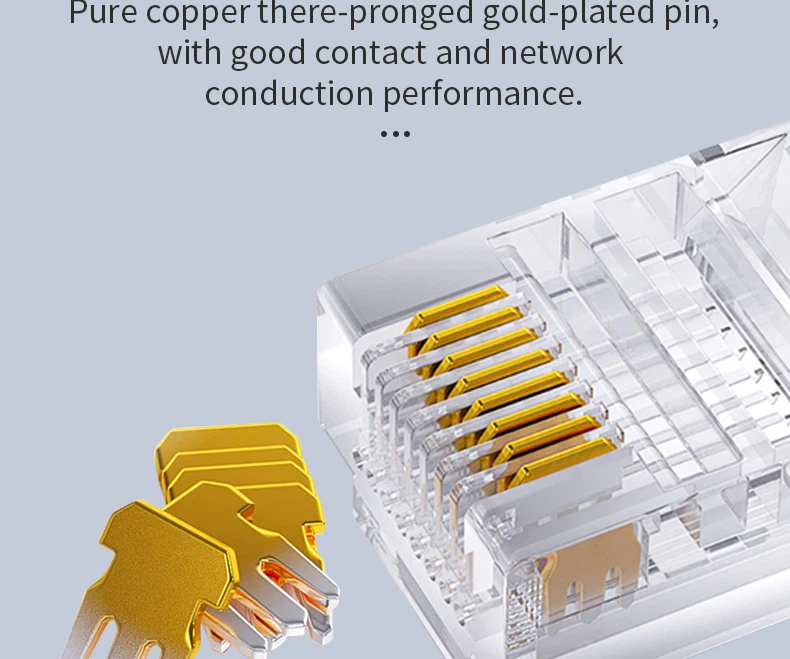

COBTEL Cat6 Pass Through RJ45 Connectors allows the push-pull method to hold the cable jacket in the plug as much as possible to minimize crosstalk. Triple-prong gold-plated contacts will improve the performance by 33% because the contact with the wire core is more sufficient, and the high-speed transmission is faster and more stable.
Suitable for conductor insulation diameters from Ø1.0mm-1.1mm(0.03937''-0.0433'')
Compatible with 23~26AWG stranded or solid conductors.
Suitable for max cable jacket diameter up to: 7.0mm(0.2756")

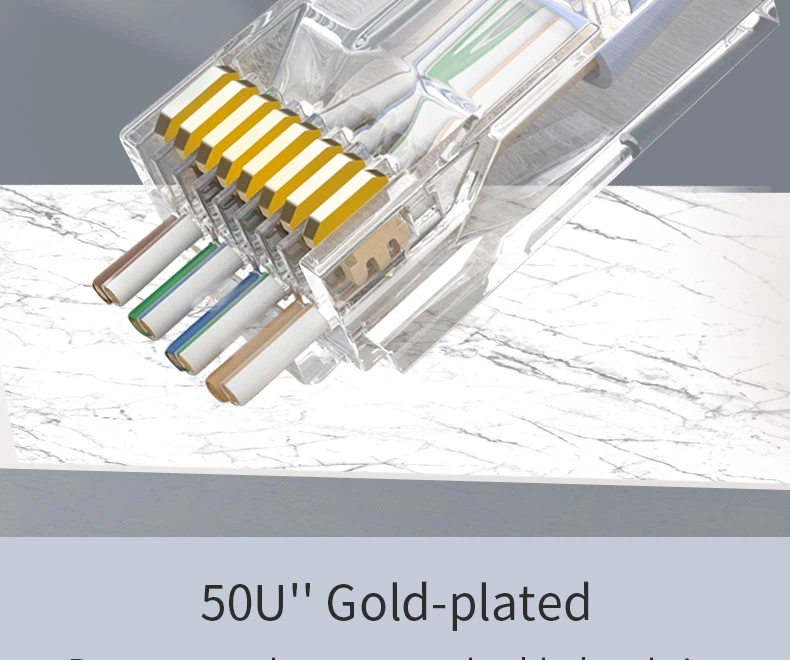

50U'', 30U'', 15U'', 6U'', 3U'', Flash
Specification | |
Product Name | Cat6 Pass Through RJ45 Connector |
Gold Plating: | 50U", 30U', 15U'', 6U", 3U", flash |
Plug Housing | Polycarbonate, UL94V-0 or UL94V-2 |
Color | Transparent or another color |
Interface | RJ45 |
Positions/Loaded Contacts | 8/8 |
Contacts | 3prongs brass |
Contact Base Material | Brass |
Conductor Type | Solid or Stranded cable |

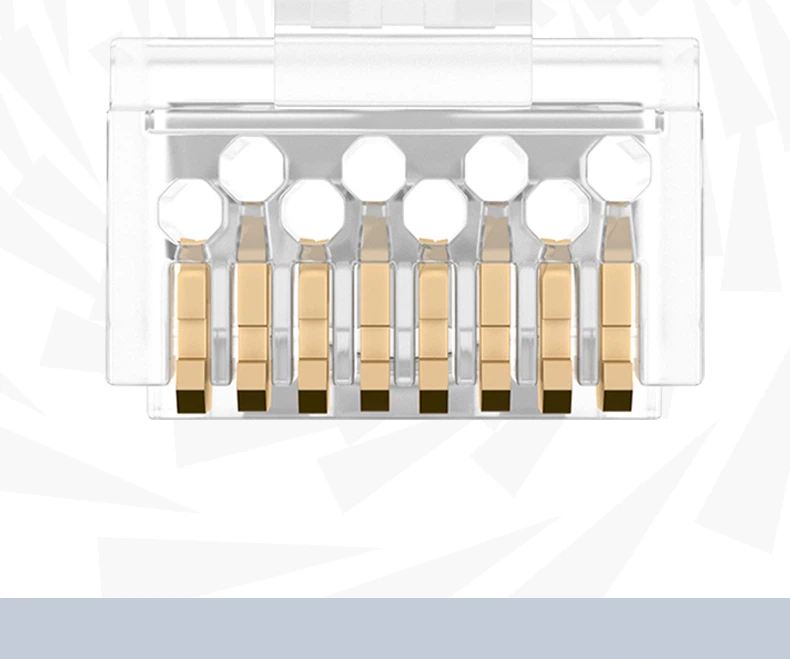

Contact Type | Triple prong |
Cable Wire Guage | Compatible with 23AWG to 26 AWG |
Max Cable Jacket OD | 7.0mm(0.2756") |
Conductor Insulation OD | Ø1.0mm-1.1mm(0.03937''-0.0433'') |
Operation Temperature | -10°C~60°C |
Storage Temperature | -40°C~85°C |
Humidity | 10% to 90% RH(Non-condensing) |
Durability | 750cycles min |
Pulling Force | 20N Max |
Rated Current | 125V AC, 1.5A |
Insulation Resistance | 500mΩ/at least 100V DC/min |
Features:
The test results are compiled with RoHS and REACH;
100 microns of nickel under plated and gold selected BSI EN60603-7/IEC60603-7;
50 microns of 24ct gold plating on top of the nickel plating;
Safety Standard UL1863 NO.E137614(DUXR2);
CSA approval No.LR90513;
Package:
Packaging quantity: 2500pcs
Packaging Type: Bag/Box/Carton

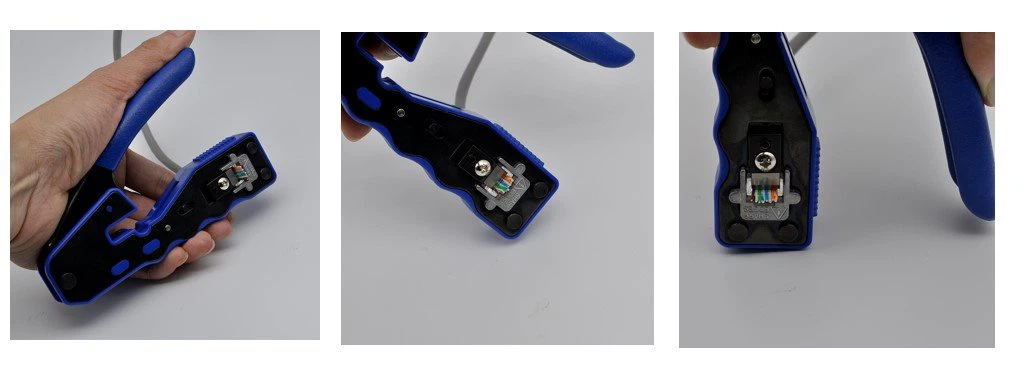

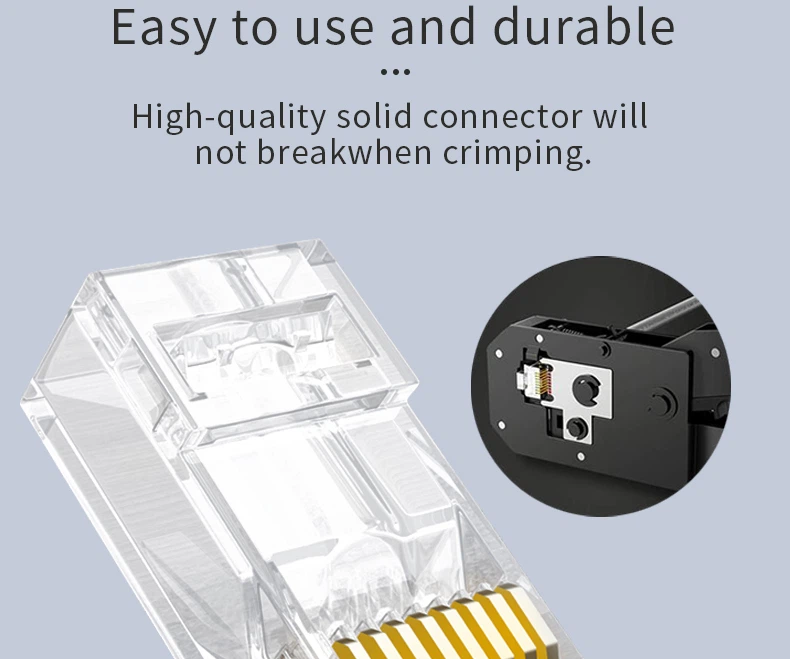

Crimping Tools
The crimping tool for the RJ45 pass-through connector is an all-in-one crimp and termination tool. It performs multiple functions simultaneously and keeps your tools running optimally with minimal maintenance and it will serve you for many years.
