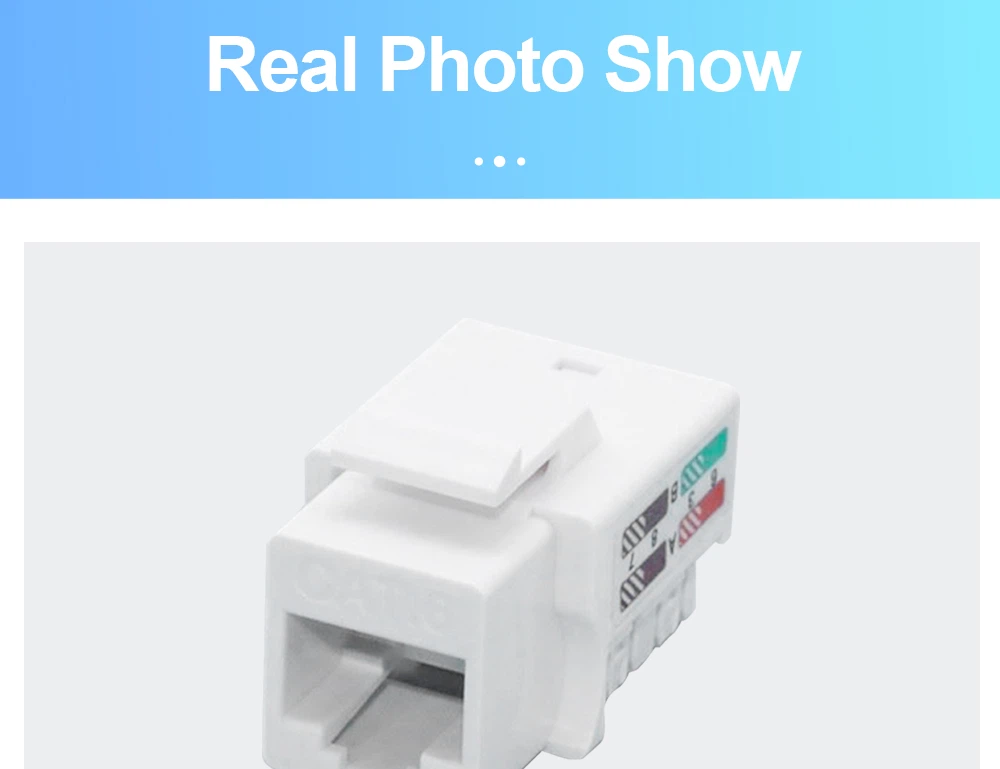

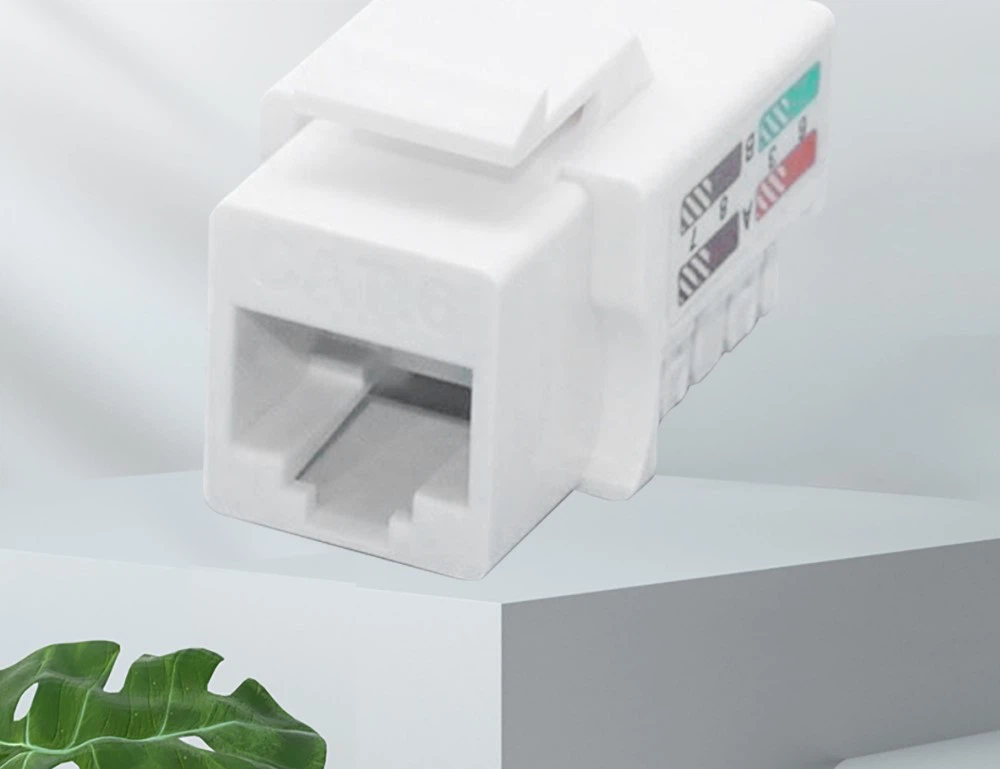

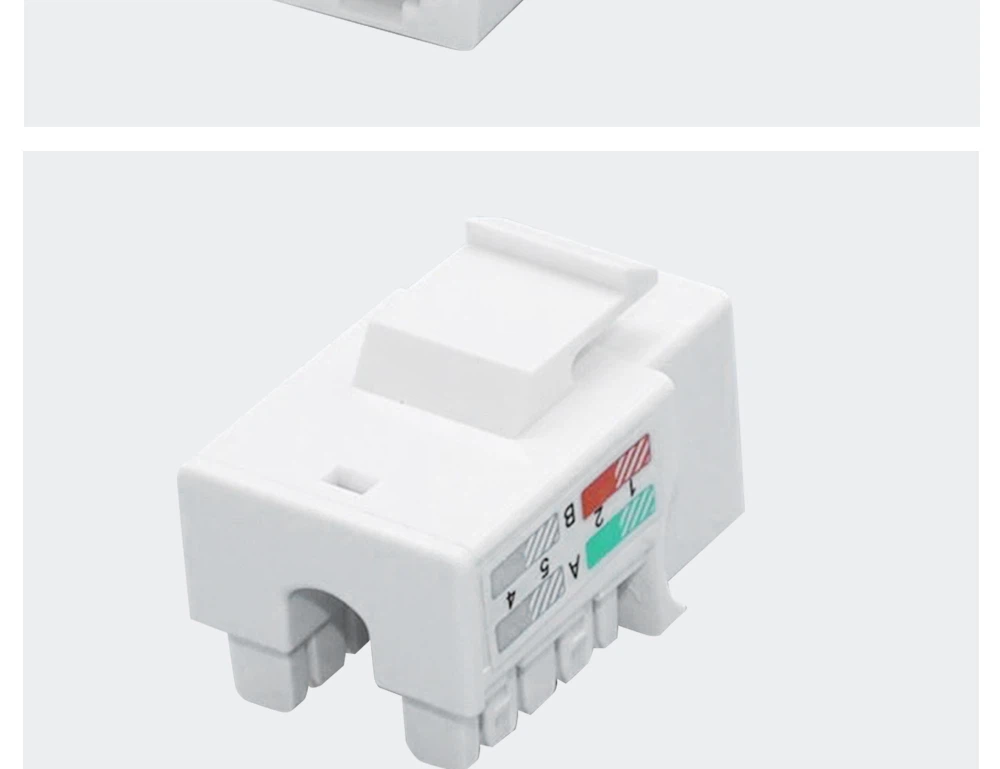

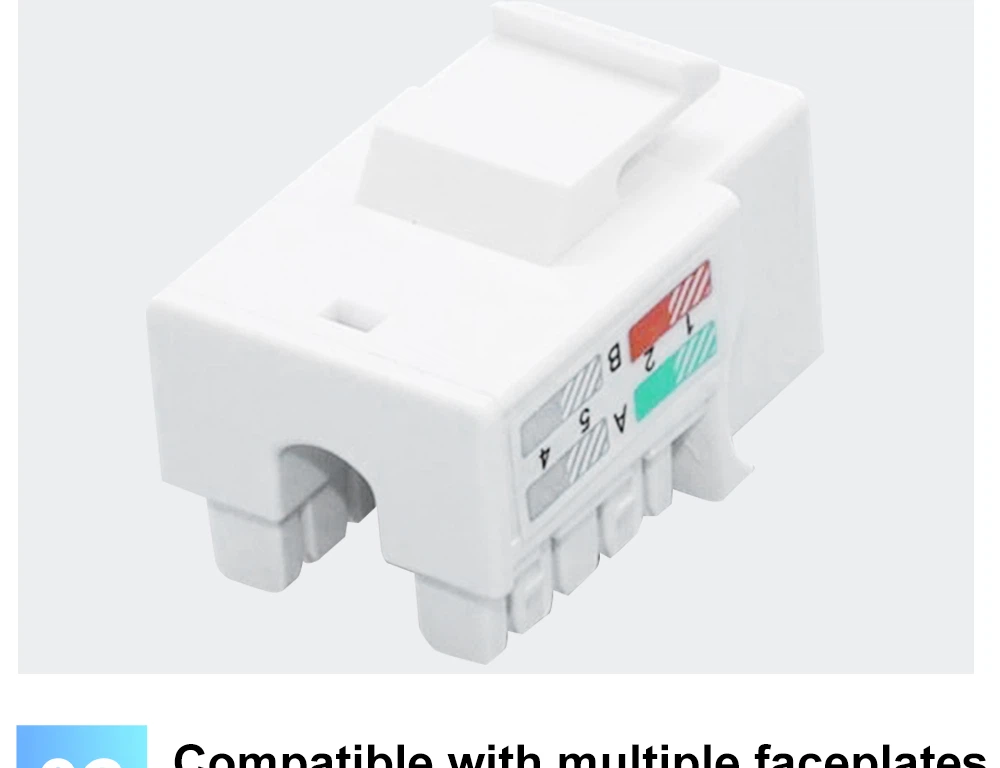

Cat6 Wall RJ45 Jack

COBTEL Cat6 Wall Jack has passed TIA/EIA and ISO standards and uses COBTEL network cables. The test value of permanent links exceeds the requirements of ANSI/TIA568-C.2, and the straightness is guaranteed, which is trustworthy.

Compared with the super five categories, all parameters have been greatly improved. It supports the construction of Gigabit Ethernet (1000Mbps) and supports the upcoming 2.5Gbps network requirements. In a specific wiring environment, it supports a maximum transmission rate of 10Gbps. Built-in crosstalk compensation PCB, improve the NEXT (near-end crosstalk) margin and increase the transmission frequency to 250MHz.

Specification

Features:

1. Using the phosphor bronze continuous gold plating process, the thickness of 24K gold plating is up to 50U, and the plugging life is more than 800 times. Corrosion resistance, plug resistance, and effectively prolong the service life of the module while ensuring the stability of data transmission; High hardness phosphor bronze shrapnel; 24K 50U gold-plated; plug life more than 800 times

2. High hardness phosphor bronze wire terminal, plated with soft nickel 100U", plated with matte tin 200U", can pierce the insulating layer strongly, and at the same time effectively prevent the contact surface of the terminal from oxidizing and reduce the contact resistance of the wire. The terminals are compatible with 22~26AWG cables, and the number of times of wiring is greater than 200.

3. New high-pressure flame retardant material, with good impact resistance and high-temperature resistance. Brand new environmentally friendly plastic, non-toxic and harmless. Safe and flame retardant, the fire rating reaches UL94V-0.

Click and browse more Cat 6 Keystone Jacks
