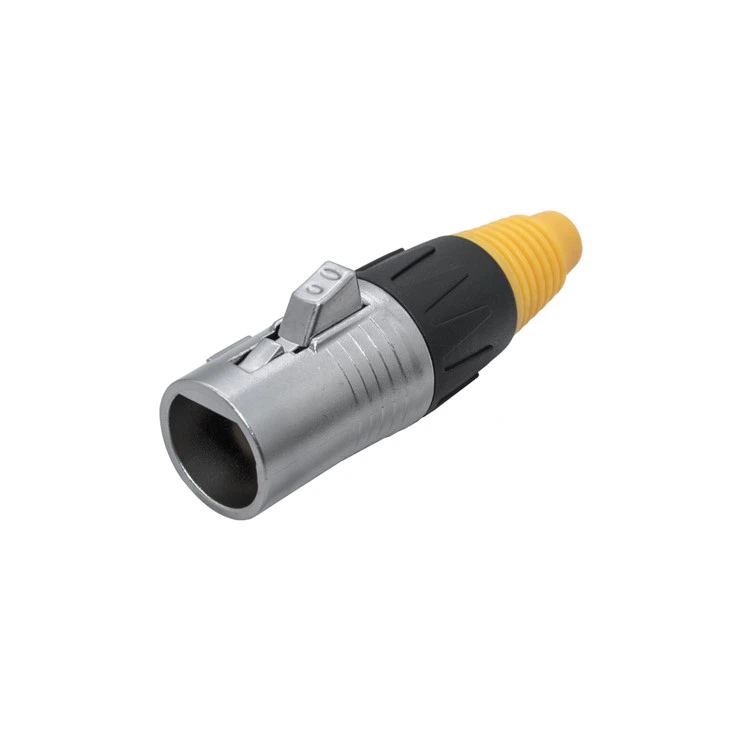

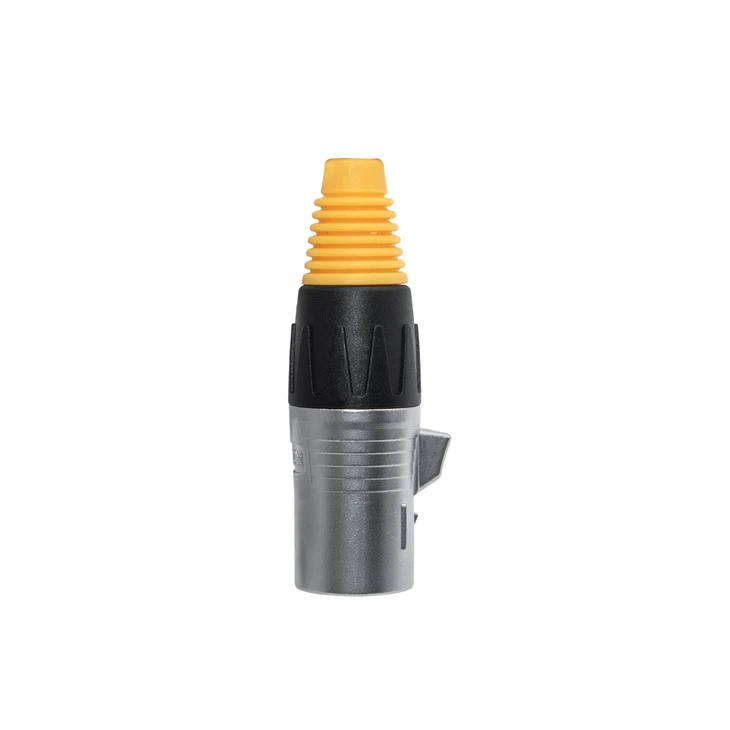

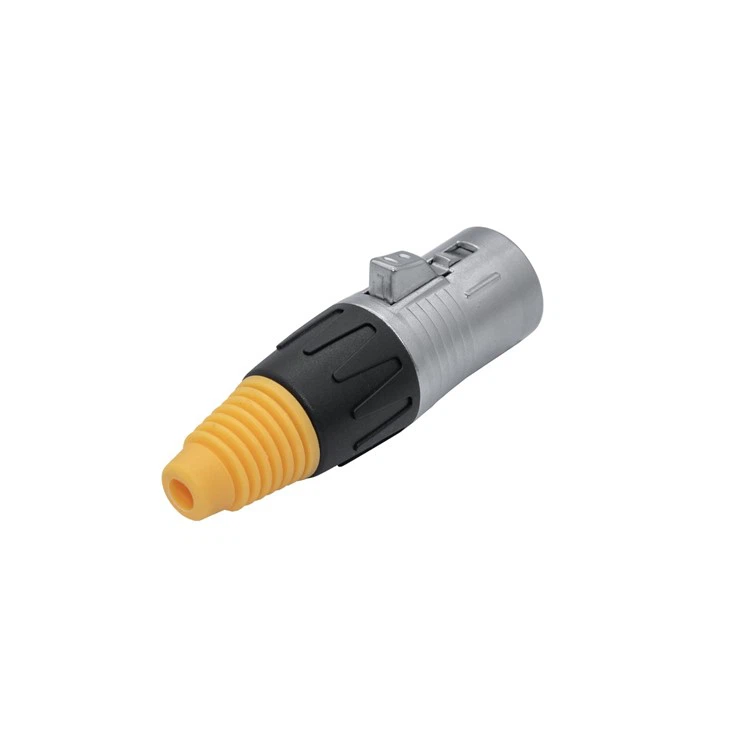

IP65 Waterproof RJ45 Waterproof Male Plug With Button

This waterproof RJ45 system is an upgrade from the SE8MC-02-NEW, featuring an IP65 waterproof rating. RJ45 cable connector with chrome housing. This RJ45 plug is only compatible with our 05 series connectors and is not compatible with other RJ45 connectors. The cable connector carrier does not include the RJ45 plug. Cable outer diameter 5-7 mm. Single-handed operation allows for exceptionally fast plugging and unplugging, saving time compared to traditional waterproof RJ45 cable connectors on the market. The plug is designed with a button lock and a robust internal spring. Even if the spring breaks, it can still be unlocked, making it more stable than traditional signal connectors on the market. Sturdy die-cast housing and unique cable clamp. The sleek design protects Ethernet connections in most commercial type applications and standard RJ45 plug assemblies.



Generate Audio Overview

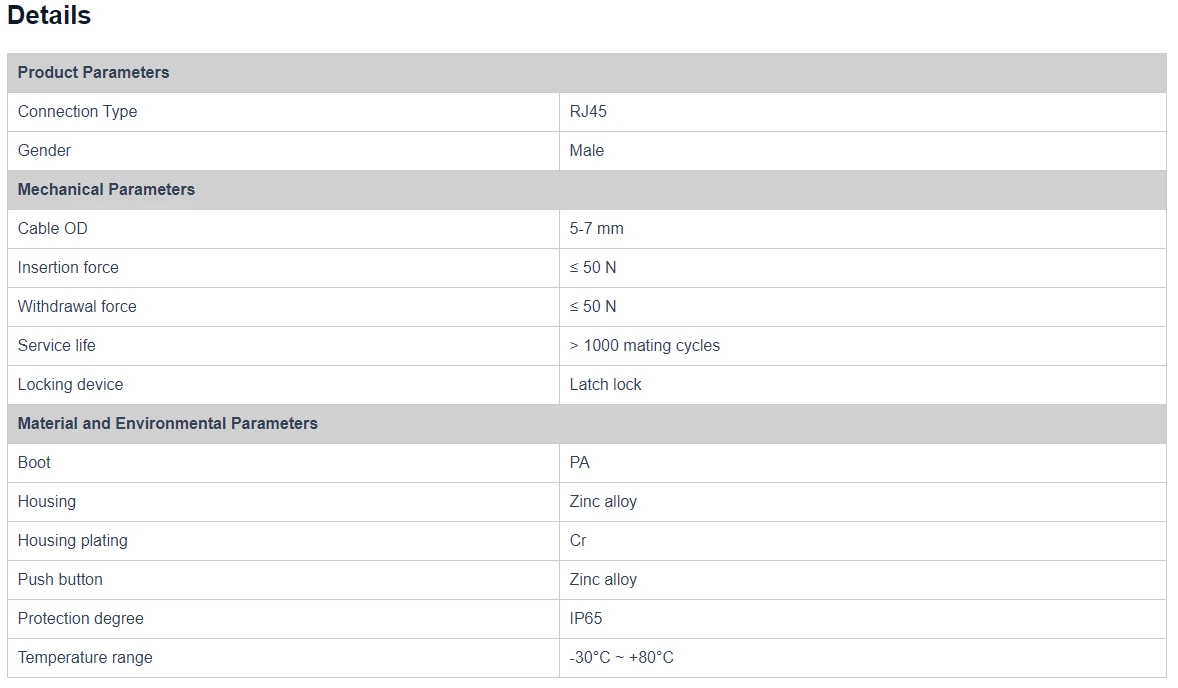

Product Parameters
Connection Type RJ45
Gender Male

Mechanical Parameters
Cable OD 5-7 mm
Insertion force ≤ 50 N
Withdrawal force ≤ 50 N
Service life > 1000 mating cycles
Locking device Latch lock

Boot PA
Housing Zinc alloy
Housing plating Cr
Push button Zinc alloy
Protection degree IP65
Temperature range -30°C ~ +80°C
