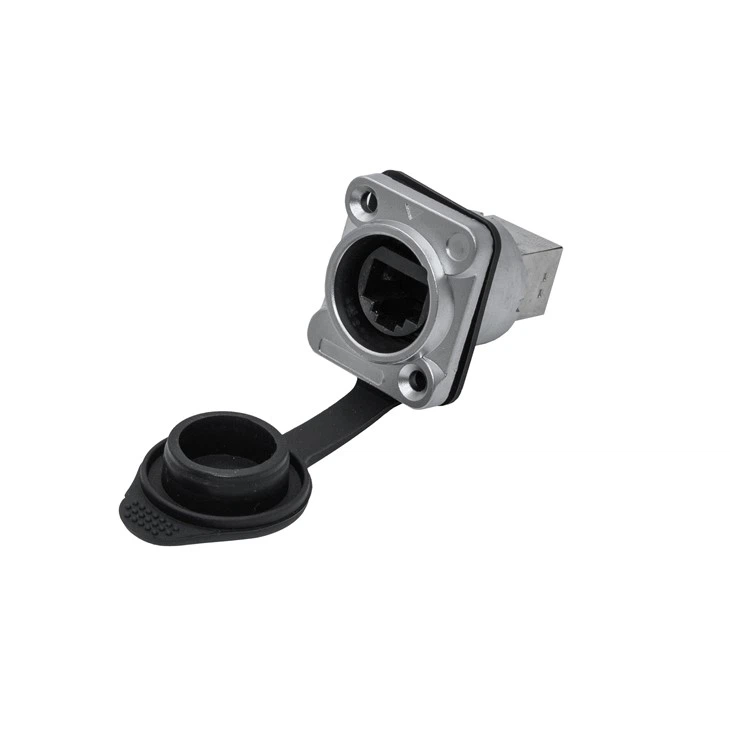

D-shape Panel Waterproof Connector | Uniform Metal Flange | D-style Installation Size

Product Features

D-shape panel connector with uniform metal flange and standard D-style installation size
Install from the front of the panel

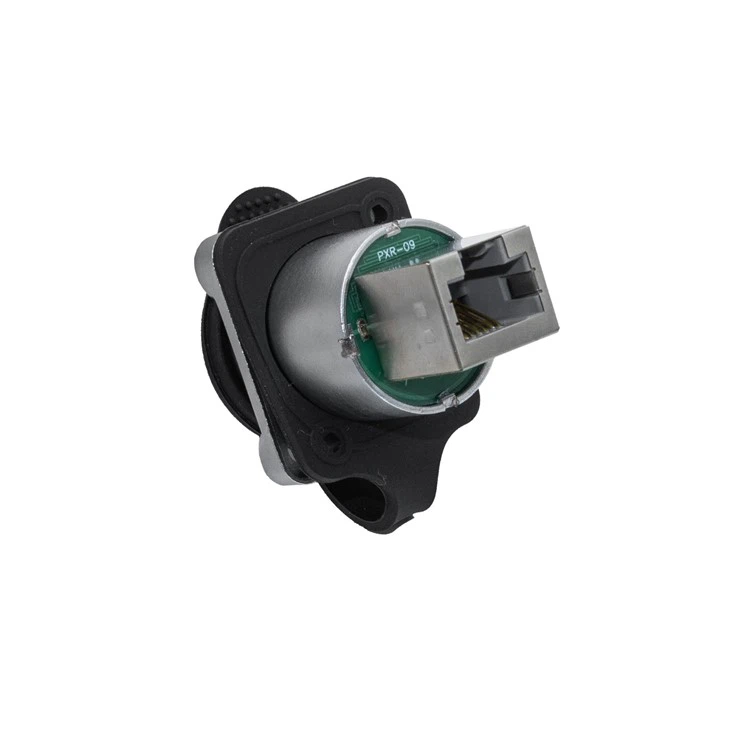

The back end is a feedthrough RJ45
Match onlywith SE8MC-05
Can reach protection level of IP65 when used with waterproof cap which fully meets long-lasting and stable signal transmission under severe outdoor conditions
Complies with CAT 5e according to TIA/EIA 568B and ISO/IEC 11801 standard
Fast locking and unlocking for the front and rear feedthrough type, providing a guaranteed reliability for continuous and stable signal transmission under moving conditions
Categories: RJ45 Connectors, 05 Series IP65

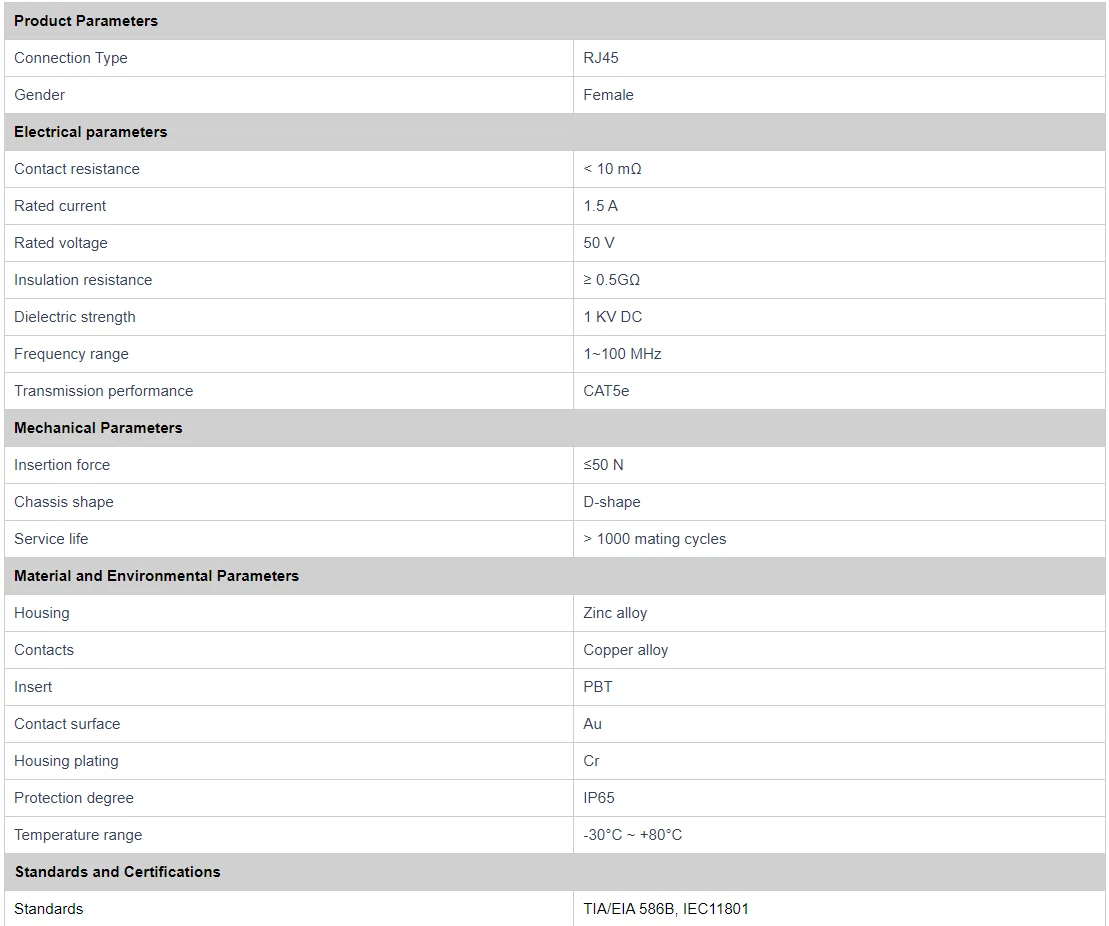

Product Parameters

Connection Type RJ45
Gender Female

Electrical parameters
Contact resistance < 10 mΩ
Rated current 1.5 A
Rated voltage 50 V
Insulation resistance ≥ 0.5GΩ
Dielectric strength 1 KV DC
Frequency range 1~100 MHz
Transmission performance CAT5e

Mechanical Parameters

Insertion force ≤50 N
Chassis shape D-shape
Service life > 1000 mating cycles

Material and Environmental Parameters
Housing Zinc alloy
Contacts Copper alloy
Insert PBT
Contact surface Au
Housing plating Cr
Protection degree IP65
Temperature range -30°C ~ +80°C

Standards and Certifications
Standards TIA/EIA 586B, IEC11801
