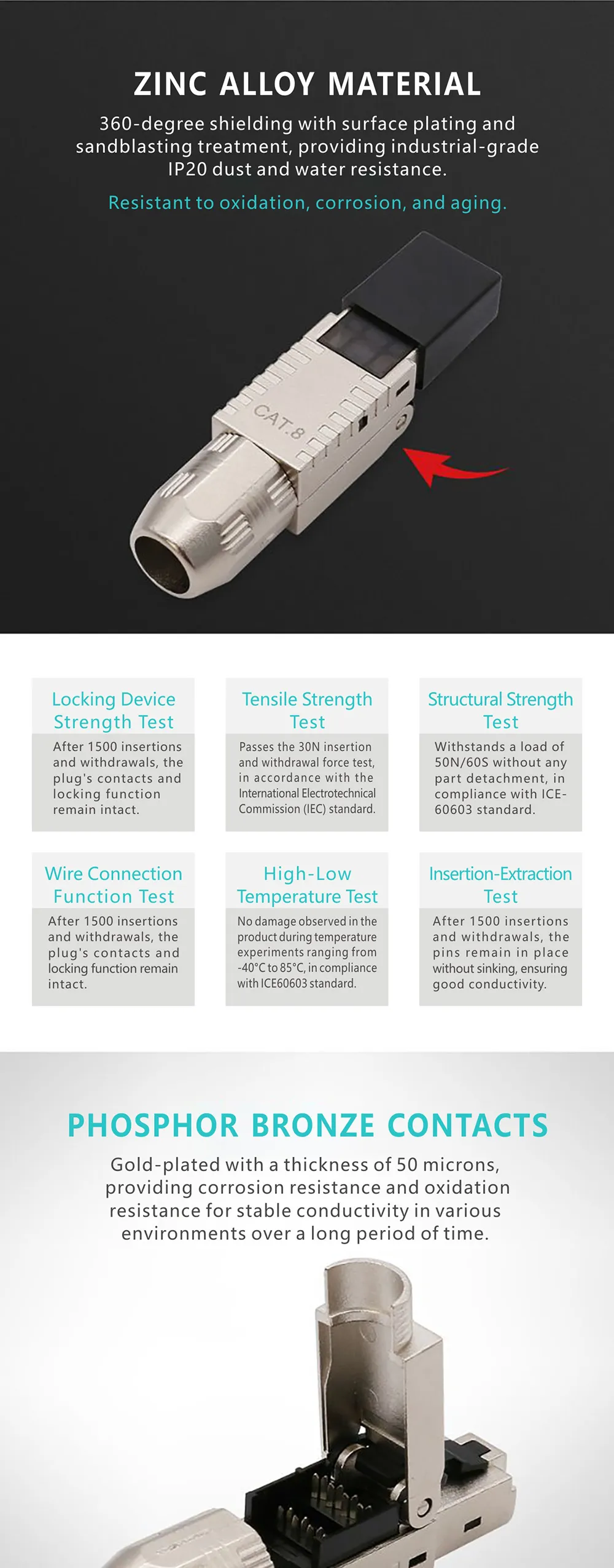

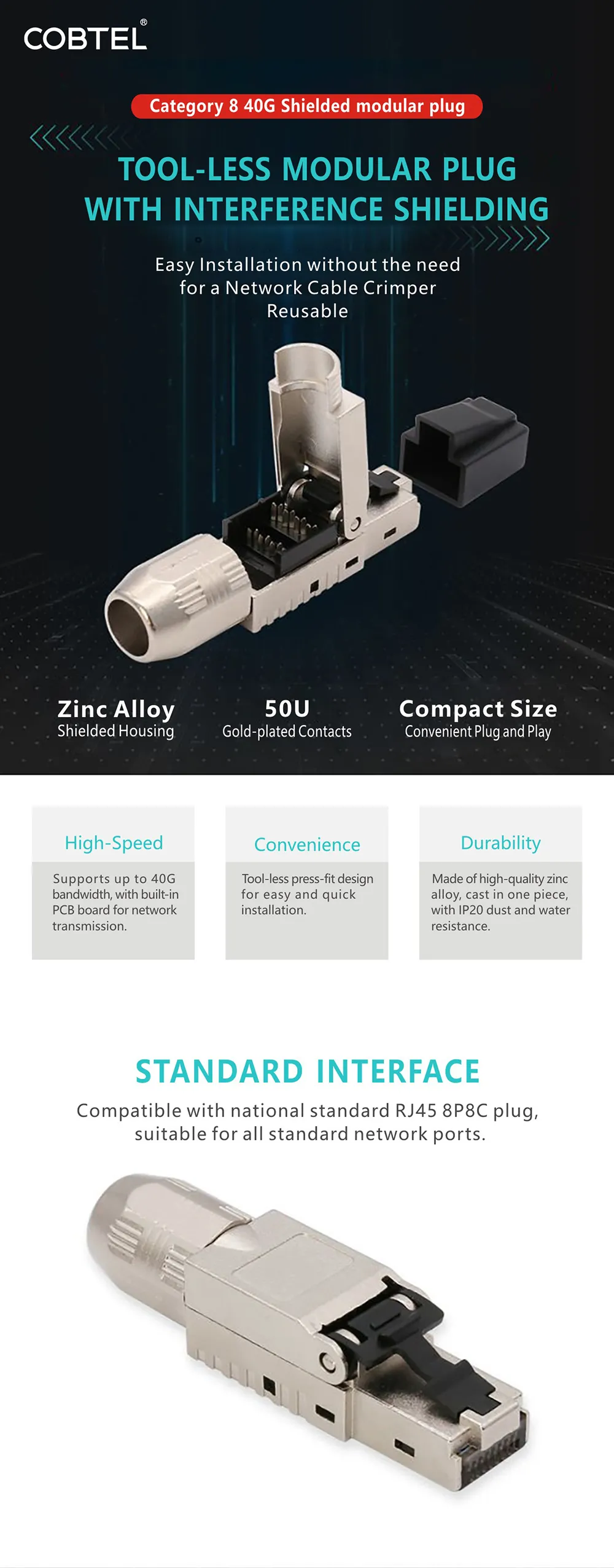

Cat8 shielded tool-free rj45 connector for 40G networks. No need for a crimping tool, making installation more convenient. It is reusable and features a zinc alloy 360-degree shielded housing (surface plating + sandblasting treatment) with an industrial IP20 waterproof rating and corrosion-resistant properties. The 50U gold-plated three-pronged contact provides a compact size and easy plug-and-play. It is equipped with a waterproof and dustproof sleeve, and an integrated PCB board to enhance network speed and reduce latency during transmission, minimizing signal loss.
Cat8 shielded tool-free rj45 connector for 40G networks. No need for a crimping tool, making installation more convenient. It is reusable and features a zinc alloy 360-degree shielded housing (surface plating + sandblasting treatment) with an industrial IP20 waterproof rating and corrosion-resistant properties. The 50U gold-plated three-pronged contact provides a compact size and easy plug-and-play. It is equipped with a waterproof and dustproof sleeve, and an integrated PCB board to enhance network speed and reduce latency during transmission, minimizing signal loss.
1. Compliant with the performance requirements of the Cat8 Cables network, providing a usable bandwidth of 600MHz or higher.
2. RJ45 sockets support both T568A and T568B universal wiring sequences. Clear universal wiring sequence labels are marked on the module, enabling accurate and fast termination.
3. The housing material of the termination interface is made of ABS/PC engineering plastic, complying with ROHS and REACH environmental requirements. It has stable color consistency and UV resistance.
4. The IDC wire clamps are made of phosphor bronze (grade 8-03) and can withstand termination for 300 times or more. They are suitable for 22-26 AWG cables.
5. The termination punch-down slots are designed with 110 and 45-degree angled fixed positions, providing good airtight protection and ensuring tight contact points.
6. PCB wiring is designed for balanced lines and employs excellent manufacturing processes to reduce interference. With high margin compliance, it is backward compatible and can be used with CAT7 and lower category systems, reducing investment loss for users.
7. The contact pins are designed with high and low pins to achieve maximum balance between wire pairs.
8. The contact pins have a 50μm gold-plated layer on the contact points, rated for 1000 plug and unplug cycles.
