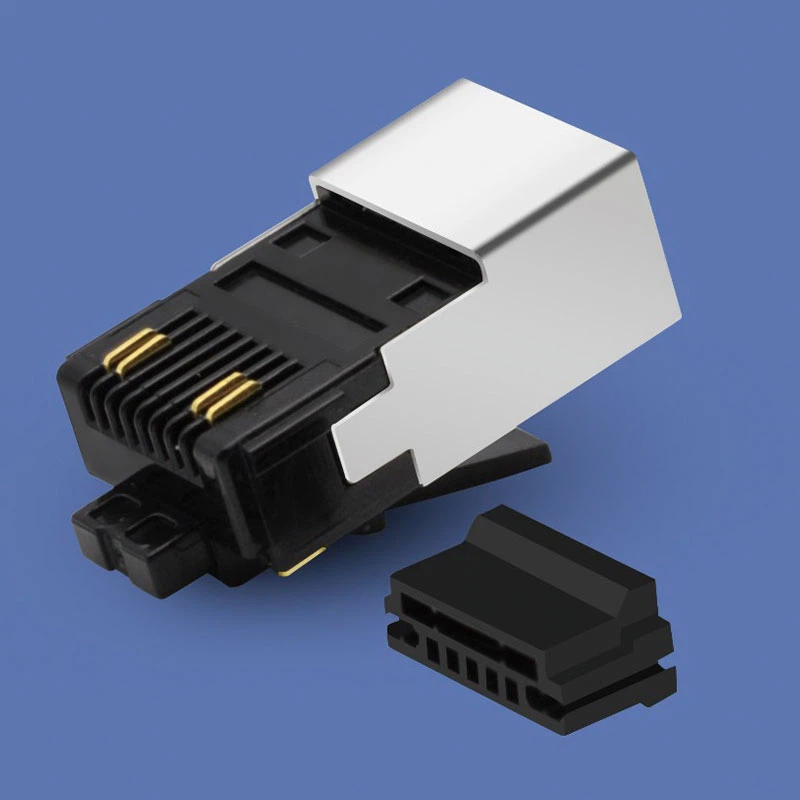

Cat 8 Termination Plug
FTP CAT8 RJ45 PLUG TWO-PIECE with boot
Shielded CAT8 RJ45 Plug connector, 8P8C modular plug two pieces for cable wire gauge 22AWG to 26AWG. Integrated strain reliefs and over-modeld strain reliefs.
This CAT8 UPT connector fits solid or stranded unshielded twisted pair wire with cable outlet diametar 6.0mm to 8.5mm.
50U“ gold plating over the RJ45 pins will improve signal conductivity.
This 8 pin 8 conductor RJ45 modular plug fits Ethernet cable with both solid and stranded conductors.
Ultimately the shileded RJ45 modular plug will save time and money through maximizing efficiency.
Description
General Specification | |
Brand Name: | COBTEL, CNCOB, OEM |
Interface | RJ45 |
Positions/Load Contacts | 8P8C |
Cable Type | Solid/Stranded cable |
Color | Black |
Dimension | |
Cable outlet diameter | Ø6.0mm~8.5mm |
Material Specification | |
Housing | 94V-0 or 94V-2 |
Contacts | 3prongs Brass or Phosphor copper |
Material Type | Nylon |
Gold plating | FU, 3U", 6U", 15U", 30U", 50U" |
Plug Shield Plating Material | Nickel |
Environmental Specifications | |
Maximum Operating Temperature | 85°C |
Minimum Operating Temperature | -40°C |
Compliance/Certifications | |
RoHS | Compliant |
REACH | Compliant |
IEC | Compliant |
CE | Compliant |
ISO 9001:2015 | Compliant |
UL | Compliant |
CAT8 is significantly more powerful than even the CAT7.
CAT8 has substantially greater performance and is very attractive to large enterprises and driving high demand.
CAT8 modular plug is a viable solution for supporting large networks.
