Create effortless connections with our Short-Body Cat5e Industrial RJ45 Connector. This shielded plug features 50μ gold contacts for stable gigabit speed.
Send Inquiry
Add To Inquiry
Description
Cat5e Short-Body 8P8C Industrial RJ Connector
01. COMPACT POWERHOUSE: The Short-Body Advantage
Subheading Focus: Form Factor & Space Efficiency
Space is scarce in modern industrial cabinets. Standard connectors stick out too far. They get bumped. They break. Our Cat5e Short-Body Industrial RJ Connector solves this. We engineered a compact, "short-body" design that fits where others fail. This reduced length is critical for tight enclosures, robotics, and crowded patch panels.
Despite the smaller size, we sacrificed nothing. You get full Gigabit Transmission speed. The compact form factor allows for tighter bend radii behind equipment. It reduces leverage on the port, preventing damage to expensive switches and PLCs.
This isn't just a connector; it's a space-saving solution. It is Ideal for structured cabling projects where every millimeter counts. Whether you are wiring a dense server rack or a compact IoT device, this short-body plug delivers big performance in a small package.
02. INDUSTRIAL SHIELDING: Pure Copper Nickel-Plated Defense
Subheading Focus: Shielding & EMI Protection
Factories are noisy. Motors, welders, and drives create a storm of Electromagnetic Interference (EMI). Standard plastic plugs leave your data exposed. Our connector features a Pure Copper Nickel-Plated Housing. This metal shell acts as a fortress.
This shielding effectively blocks external electromagnetic interference. It creates a Faraday cage around your signal. It ensures more stable data transmission even in the harshest electrical environments. The nickel plating adds a second layer of defense. It resists corrosion. It stays conductive.
We built this for the real world. The metal body resists crushing. It provides a solid ground connection. This Shielded and Resist Interference design keeps your network running smooth when others fail. Don't let noise corrupt your data. Shield it with Cobtel.

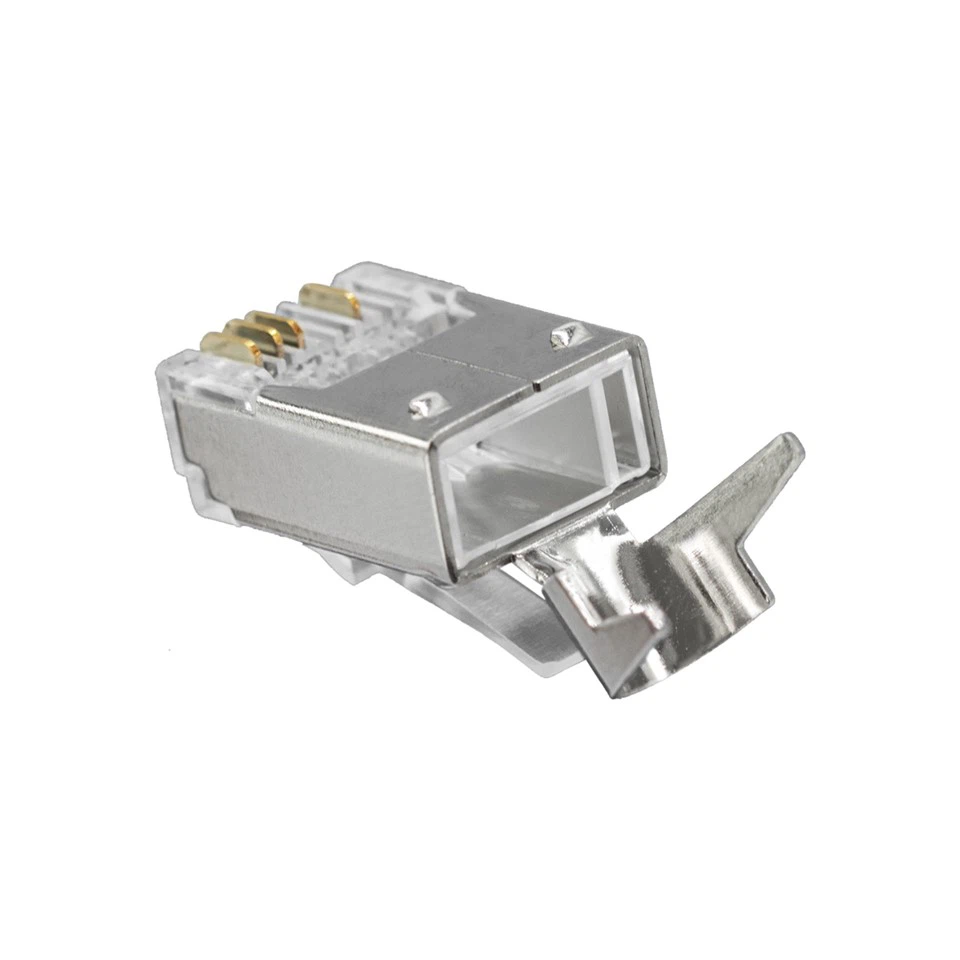

03. GRIP OF STEEL: Integrated Strain-Relief Clamp
Subheading Focus: Mechanical Strength & Strain Relief
Cables get pulled. Vibration loosens connections. A standard crimp often isn't enough for industrial use. Our connector includes an Integrated Strain-Relief Clamp. This is a game-changer for reliability.
This metal tail wraps securely around the cable jacket. You crimp it down. It bites into the sheath. It locks the cable to the connector body. This Prevents cable loosening. It absorbs the pulling force. It protects the delicate wire terminations inside.
This feature is vital for machinery that moves. It ensures Grounding Continuity by connecting the cable shield to the connector shell. It stops the shake from reaching the contacts. Your connection stays solid. We engineered this for Industrial durability. You can install it on heavy-duty cables. You can install it in vibrating vehicles. The clamp holds tight.

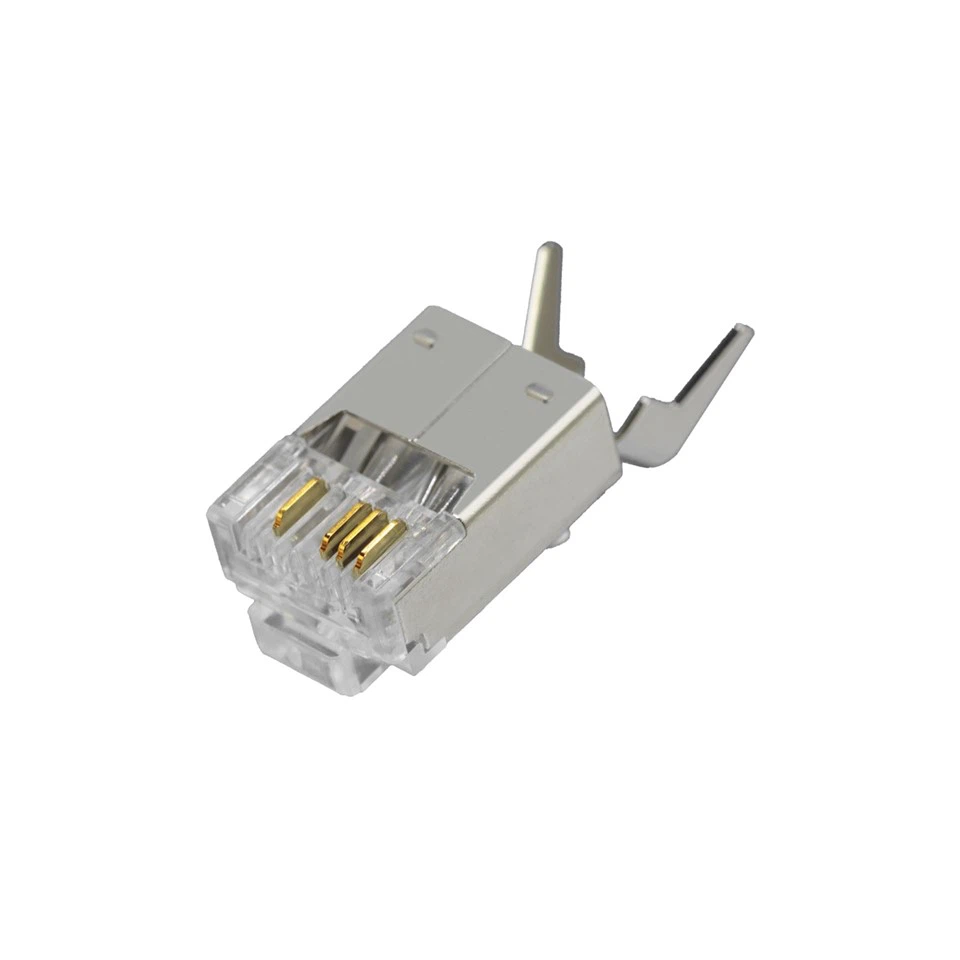

04. GOLD STANDARD: 50μ Gold-Plated Triple-Fork Contacts
Subheading Focus: Conductivity & Contact Design
The heart of any connector is the contact point. If the contact fails, the network dies. We use 50μ (micron) thickened gold plating on our contacts. This is industry-leading thickness.
Gold is a noble metal. It doesn't rust. It conducts electricity perfectly. The thick 50μ Gold-Plated layer resists aging and oxidation. It ensures low contact resistance for the life of the installation. You get maximum speed. You get Gigabit Transmission without errors.
We also use a superior shape: Triple-Fork Contacts. Standard plugs use two prongs. We use three. These prongs bite into the copper wire from multiple angles. They create a gas-tight seal. This design works with both solid and stranded wire. It enhances conductivity. It ensures a solid link even if the wire moves slightly.

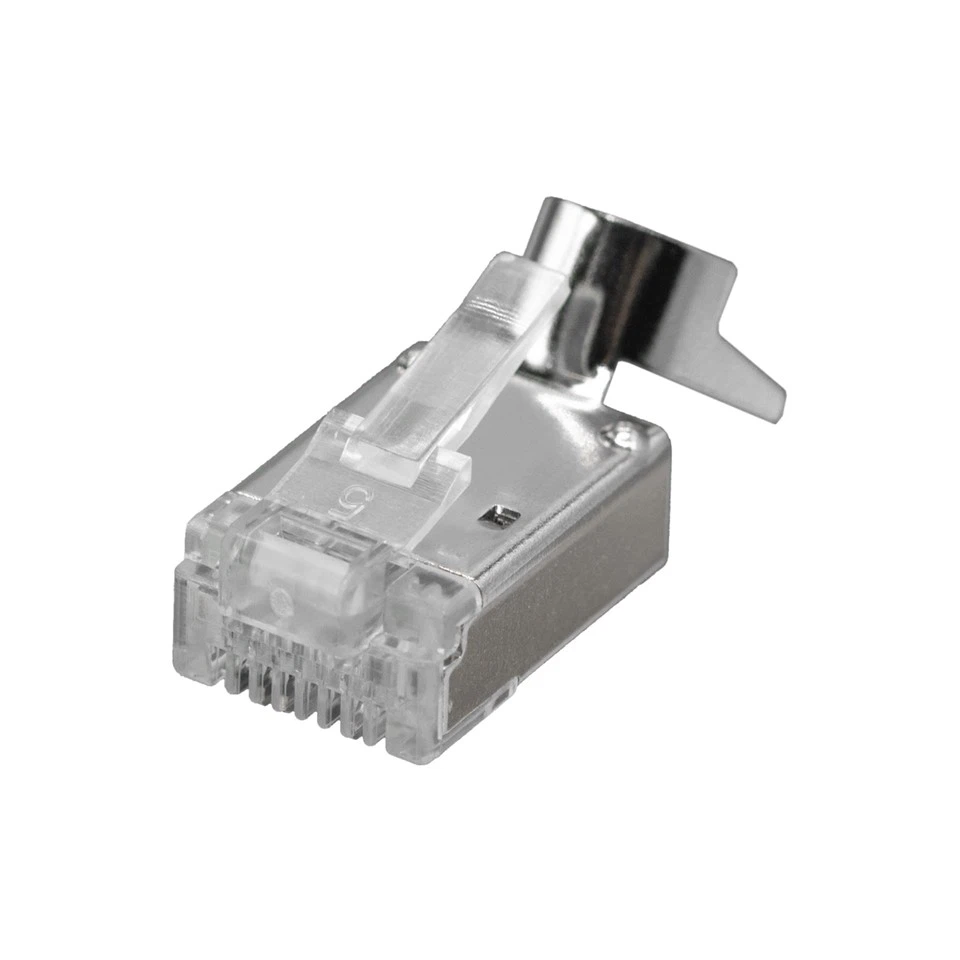

05. UNBREAKABLE LATCH: Reinforced Polycarbonate Design
Subheading Focus: Latch Durability & Materials
The plastic latch is the weak point of most RJ45 plugs. It snaps off. Then the cable falls out. We fixed this. We use a Reinforced Flexible Latch Arm. We engineered it to handle abuse.
We use superior materials. The latch is made from reinforced, eco-friendly flame-retardant PC material. Polycarbonate (PC) is tough. It is flexible. It is not brittle like cheap ABS.
We tested it to the extreme. It Passes 180-degree bend test. You can bend the latch flat backward. It springs back. It doesn't snap. This ensures the connector stays locked in the port. It provides superior bend resistance. Safety is also key. The material has a fire rating UL94-V0. It is safe for plenum spaces.
06. INSTALLATION SIMPLICITY: One-Piece Design for Speed
Subheading Focus: Ease of Use & Efficiency
Time is money. You need to terminate cables fast. Our One-piece RJ45 Gigabit Connector is designed for Quick, Easy Installation. There are no loose parts to lose. No complex load bars to fiddle with.
You strip the cable. You arrange the wires. You slide them in. The internal channels guide the wires into place. The Wire Hole OD of 1.0mm accommodates standard Cat5e conductors easily.
This simplicity reduces errors. It speeds up big jobs. A technician can terminate hundreds of these in a day. It is perfect for field repairs where you might not have a clean workbench. You get a professional termination every time, with less hassle. It is the efficient choice for high-volume installers.
07. PROVEN PERFORMANCE: Fluke Test Certified
Subheading Focus: Testing & Quality Assurance
You need speed. You need reliability. We guarantee it. All COBTEL connectors meet performance standards. We don't guess. We test.
Our connector Passes Fluke Testing. Fluke is the gold standard in network testing. A Fluke pass means the connector meets strict signal quality rules. It meets the NEXT (Near-End Crosstalk) limits. It meets the Return Loss limits.
This certification proves our quality. You can trust this connector for Gigabit Transmission. It handles high-speed data effortlessly. It supports PoE applications. When you install a Cobtel connector, you know the link will work. You avoid callbacks. You satisfy your clients. It is Standard Testing you can rely on.
08. WIDE COMPATIBILITY: Fits All Your Devices
Subheading Focus: Use Cases & Application
Who needs this connector? Everyone. It is Compatible with all RJ45 interface devices. It fits perfectly into the modern digital ecosystem.
Use it for Desktops and Laptops in the office. Use it for Routers and Switches in the server room. It connects Smart TVs and Set-top boxes at home. It terminates cables for Patch panels.
The industrial build makes it perfect for factories. The shielding makes it perfect for interference-heavy zones. The durability makes it perfect for schools. From ADSL devices to TV boxes, this connector delivers. It is the professional's choice for any Product Application Range.
Extended Educational Resource: Mastering Industrial Connectivity
Deep Dive: The Importance of Shielding in Industrial Environments
In the world of professional networking, Shielded cabling is not a luxury; it is a necessity. Our Cat5e Industrial RJ Connector is designed specifically for these demanding environments.
What is EMI/RFI? Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) are invisible forces. They come from heavy machinery, fluorescent lights, power lines, and wireless transmitters. In a factory or a crowded server room, this noise is everywhere. When this noise hits an unshielded ethernet cable, it creates data errors. The network slows down. It drops packets.
The Faraday Cage Solution Our connector uses a Pure Copper Nickel-Plated Housing. This metal shell creates a "Faraday Cage" around the signal wires.
Reflects Noise: External noise hits the metal and bounces off.
Absorbs Noise: Any noise that penetrates is absorbed by the metal and drained to the ground.
Contains Signal: It also keeps your high-speed data signals inside the cable, preventing them from interfering with other devices.
By using this Shielded Housing, you ensure stable data transmission regardless of the electrical environment.
The Science of Gold Plating: Why 50μ Matters
You will see many connectors advertised as "Gold Plated." But not all gold plating is equal. The industry standard varies from "Flash" plating (very thin) to 50μ (micron) plating. Our connector uses 50μ Gold-Plated Pure Copper Contacts.
Why Thickness Counts
Corrosion Resistance: Copper oxidizes (turns green). Oxidation blocks electricity. Gold does not oxidize. A thick layer of gold ensures the oxygen never reaches the copper underneath.
Mating Cycles: Every time you plug and unplug a cable, you scrape the contacts. Thin gold wears off quickly. 50μ plating withstands hundreds of mating cycles.
Contact Resistance: Thicker gold provides a flatter, smoother surface on a microscopic level. This reduces resistance. Lower resistance means better signal quality and less heat generation (crucial for PoE).
This thickened gold plating is why our connectors resist aging and maintain Gigabit Transmission for decades.
Triple-Fork Contacts: The Grip That Never Slips
Look closely at the contact blades in cheap connectors. They usually have two teeth (prongs). Our Industrial RJ45 Connector uses Triple-Fork Contacts.
The 3-Point Advantage
More Surface Area: Three points of contact provide better electrical conductivity than two.
Universal Fit:
Solid Wire: The prongs straddle the solid copper wire, creating a secure grip.
Stranded Wire: The prongs pierce the strands, ensuring contact with multiple filaments.
Vibration Resistance: With three points of contact, the wire is held firmly. Even if the cable vibrates, the electrical connection remains unbroken.
This design is a key part of our Anti-Oxidation strategy. It ensures a gas-tight seal that keeps corrosion out.
Short-Body Design: Why Smaller is Better
While standard RJ45 plugs are functional, they can be cumbersome in tight spaces.
Bend Radius: A long connector forces the cable to stick straight out for an inch or more before it can bend. In a shallow cabinet, this forces you to mash the door closed against the cable. This damages the cable and the port.
Leverage: A long connector acts as a lever. If the cable is pulled sideways, it puts massive torque on the jack.
Our Solution: The Short-Body design reduces this leverage. It allows the cable to bend sooner. It protects your equipment.
Strain Relief: The Forgotten Hero
Most connector failures happen at the back of the plug. The cable gets pulled. The jacket pulls out of the connector. The wires are exposed. The connection breaks. Standard connectors use a plastic wedge to push on the jacket. This often fails with thick, shielded Cat5e/6 cables.
Our connector uses an Integrated Strain-Relief Clamp. This is a metal extension of the shield.
How it works: After terminating the wires, you use pliers to wrap this metal tail around the cable jacket.
The Result: The cable is mechanically locked to the connector. Pulling on the cable pulls on the metal body, not the delicate wires.
Grounding: This clamp also connects the cable shield (foil/braid) to the connector shell, ensuring Grounding Continuity.
Understanding Fluke Certification
We claim our product Passes Fluke Testing. What does this mean? A Fluke Network Analyzer tests the physics of the connection.
NEXT (Near-End Crosstalk): Does the signal from Pair 1 bleed into Pair 2? Our precise wire alignment minimizes this.
Return Loss: Does the signal hit the connector and bounce back? Our impedance-matched design prevents this.
Insertion Loss: Does the signal lose power going through the plug? Our 50μ Gold contacts minimize this.
A passing Fluke test is the ultimate proof of quality. It means the connector effectively disappears electrically. It lets the full speed of the cable pass through.
The Durability of Polycarbonate (PC)
We use eco-friendly flame-retardant PC material for the plastic parts (specifically the latch). Cheap connectors use ABS plastic. ABS gets brittle. It snaps. It yellows in the sun. Polycarbonate is different.
Transparency: It is clear and strong.
Flexibility: It bends without breaking. This allows our Reinforced Flexible Latch Arm to pass the 180-degree bend test.
Safety: It is self-extinguishing (UL94-V0). If a fire starts, this connector will not spread it.
Application Scenarios
1. The Automated Factory
Robots move. Arms swing. Cables flex.
Need: A connector that handles vibration.
Solution: Our Integrated Strain-Relief Clamp locks the cable in place. The Shielding protects against motor noise.
2. The Outdoor Surveillance Camera
Cameras are mounted high up. Maintenance is difficult.
Need: A connector that resists corrosion and does not fail.
Solution: The Nickel-Plated Housing and Gold Contacts resist the humid outdoor air.
3. The High-Speed Office
Designers transfer massive files.
Need: Maximum speed.
Solution: The Cat5e Industrial rating guarantees Gigabit Transmission.

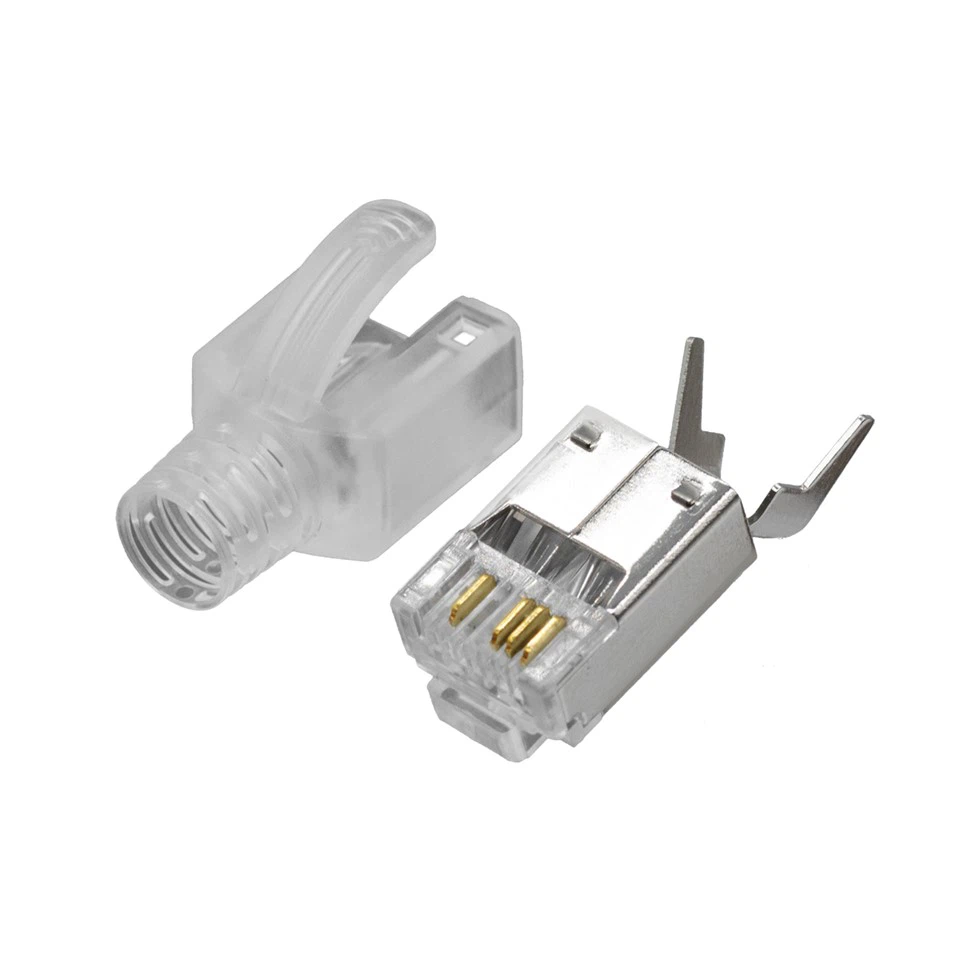

Boot Compatibility Guide
A "boot" is the rubber cover that goes over the connector. Our connector includes a Polycarbonate (PC) Boot.
Matched Design: It fits the short body perfectly.
Protection: It protects the release tab from snagging.
Strain Relief: It helps control the cable bend radius. The connector is also compatible with various other boot types, giving you flexibility.
Installation Best Practices
Slide the Boot On: Always put the boot on the cable before you strip it!
Strip Carefully: Remove the jacket. Fold back the shield (braid/foil).
Untwist: Untwist the pairs as little as possible (less than 0.5 inches).
Align: Flatten the wires in standard T568B order.
Trim Flush: Use flush cutters to cut the wire ends perfectly straight.
Insert and Crimp: Push the wires into the connector body until they hit the front. Crimp with a standard RJ45 tool.
Clamp: Squeeze the Strain Relief Clamp tightly around the cable jacket/shield.
Technical Specifications Summary
Product Name: Cat.5E 8P4C Industrial RJ45 Plug.
Interface: Standard RJ45 (8P8C/8P4C compatible).
Category: Cat 5e (Gigabit).
Shielding: Pure Copper Nickel-Plated Housing.
Contacts: 50μ Gold-Plated Phosphor Bronze.
Contact Type: Triple-Fork (3-Prong).
Latch Material: Polycarbonate (PC) UL94-V0.
Wire Hole OD: 1.0mm.
Strain Relief: Integrated Metal Clamp.
Compatibility: Solid and Stranded Cable.
Standards: Meets TIA/EIA-568, ISO/IEC 11801.
Why Choose Cobtel?
We are experts in physical layer connectivity. We engineer our products for the real world.
We Test: We use Fluke labs to verify performance.
We Build Strong: We use metal where others use plastic.
We Innovate: We use short-body designs to solve space problems.
When you buy the Cat5E Short-Body 8p8c Industrial RJ Connector, you are buying peace of mind. You are buying a network that works today, tomorrow, and ten years from now. Secure your connections. Shield your data. Choose Cobtel.
