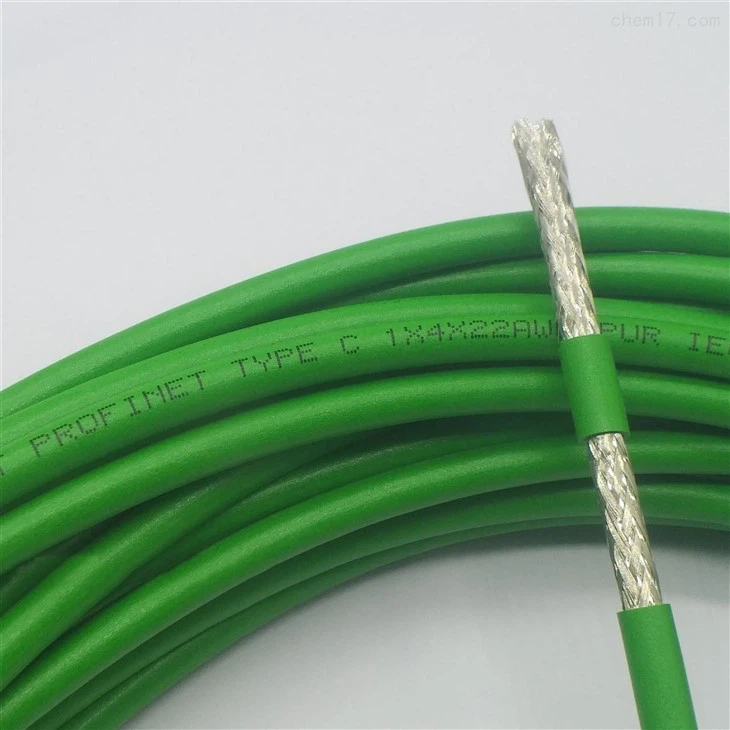

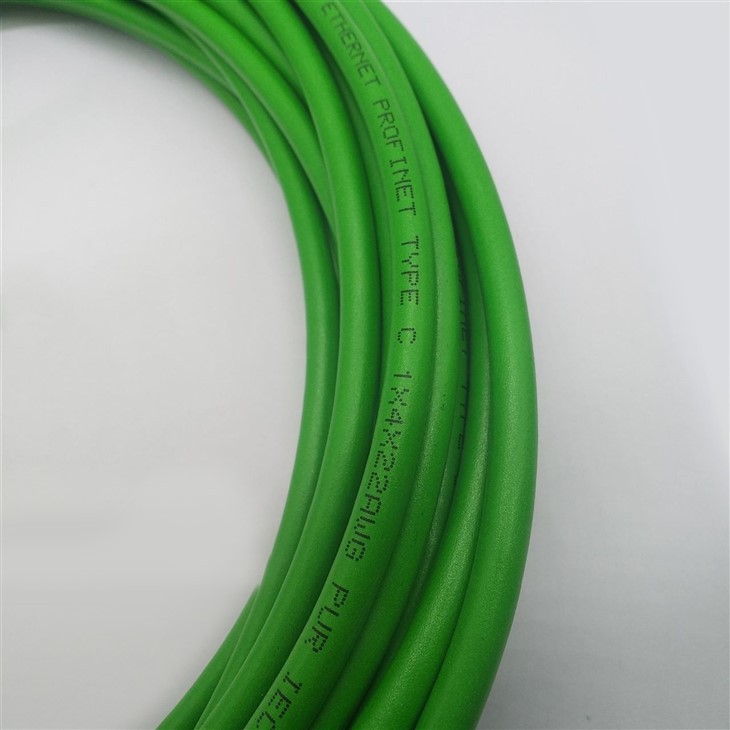

Shielded Towline Industrial Ethernet Cable For Profinet/PN Communication

Application	Dynamic motion scenarios	Number of cores:	4 cores
Protocol compatibility	Industrial Ethernet Profinet protocol	Temperature resistance:	-20-70℃
Shielding:	Aluminum foil with tin-plated copper shielding, double shielding, and anti-interference.	Model	profinet type C 4*22awg/19 PUR



Dynamic towline cable, industrial Ethernet Profinet/PN communication cable with a temperature resistance range of -20 to 70℃. It is suitable for use in environments requiring higher temperature resistance, and its superior performance ensures stable communication. It is compatible with RJ45 pressure-free metal connectors, allowing for repeated use.



Other product names:

Dynamic towline industrial Ethernet Profinet/PN communication cable, dynamic towline industrial communication cable, dynamic Profinet communication cable, dynamic PN communication cable, towline Profinet cable, towline PN cable, 4-core industrial cable, 4-core industrial towline cable, dynamic high-flex industrial communication cable, dynamic towline high-flex communication cable, towline cable/communication cable, Profinet protocol towline cable, towline cable for Ethernet communication, green towline cable for Ethernet.



PROFINET Towline Cable, PROFINET Bus Cable, PROFINET Industrial Ethernet Cable, PROFINET Robot Cable, PROFINET Cable

Highly Flexible and Bending Resistant Towline Industrial Ethernet Communication Cable with Shielded Twisted Pair

ETHERNET PROFINET TYPE C 4X22AWG/19, 100ohm, Transfer Rate 100Mhz



Advantages and Parameters:

Suitable for towline applications, dynamic installations, frequent movement, wear, and torsion resistance. Compatible with Cat5e, EtherCAT, and Ethernet/IP.

It consists of 4 cores, each core is composed of 19 tinned copper conductors, with a total cross-sectional area of 0.34mm².

The inner sheath insulation material is low-smoke and halogen-free LSZH. To determine whether an insulation layer of a cable is made of low-smoke and halogen-free material, there is a simple identification method: strip off a small amount of insulation layer and place it in water. If the insulation layer sinks to the bottom due to the lower density of LSZH material than water, then it is LSZH; otherwise, it is not.



Product Application：

PROFINET protocol is widely used in industrial Ethernet applications, such as wiring for machines, equipment, instruments, and control cabinets. Its performance meets CAT5e standards. It is suitable for towline applications or frequent movement. It is applicable in motion control scenarios and can be used for EtherCAT and EtherNet/IP applications.

Temperature Range

Fixed Application: PUR: -40℃ to 80℃

Mobile Application: PUR: -20℃ to 70℃

Test Voltage

2000V/min (AC)

Characteristic Impedance

100±15Ω

Conductor DC Resistance (20℃)

≤60Ω/km

Bending Radius

Fixed Application:

8D (D= Cable Diameter)

Mobile Application:

15D (D= Cable Diameter)

Cable Structure

Conductor: Twisted tinned copper conductor 22AWG/19 with a cross-sectional area of 0.34mm²

Insulation: PE

Colors: White, Yellow, Blue, Orange

Inner Sheath: PVC/FRNC

Shield: Aluminum foil wrapped with tinned copper braid

Outer Sheath: PUR/PVC

Color: Green (similar to RAL6018)

Approximate Outer Diameter: 6.5mm



Product Name	Specification	Inner Jacket	Outer Jacket	Outer Diameter mm	Characteristic Impedance ohm	Copper Weight Approx KG/KM	Cable Weight Approx. KG/KM
PROFINET TYPE C	1*4*22AWG/19	FRNC	PUR	6.5	100	28.5	62.6
PROFINET TYPE C	1*4*22AWG/19	PVC	PVC	6.5	100	28.5	60.5
