Ethercat/IP Industrial High-flex Cat5e Shielded Towline Ethernet Cable

Shielding:	Braided Copper Mesh	Certification:	CE
Model:	Cat5e (Category 5e)	Specification:	Sf/UTP 4*2*26AWG/19
Packaging:	100 meters, 200 meters, 500 meters	Approx. OD of Industrial Towline Ethernet Cable:	6.2mm
The feature of Industrial Towline Ethernet Cable:	Specialized for towline use, high flexibility, shielded, Cat5e	Spec. of Industrial Towline Ethernet Cable:	Sf/UTP 4*2*26AWG/19 pur
Transmission of Industrial Towline Ethernet Cable:	100 Mbit/s for Industrial Ethernet	Jacket of Industrial Towline Ethernet Cable:	Blue Polyurethane (PUR)
Application of Industrial Towline Ethernet Cable:	Suitable for dynamic towline applications, compatible with EtherCAT and Ethernet/IP.

Support OEM	OEM Custom processing is available	core conductor material	bare copper
The number of cores:	8	Application:	Suitable for frequent motion occasions, tow lines, tank chains, and servo drive occasions.



Other product names:

Cat5e SF/UTP 4x2x26AWG/19 PUR polyurethane blue industrial high-flex shielded towline Ethernet cable, towline cable, shielded towline cable, industrial towline cable, high-flexibility cable, high-flex cable, high-flex towline cable, 8-core towline cable, PUR towline cable, polyurethane towline cable, COBTEL towline cable, towline cable with RJ45 plug, high-flexibility industrial Ethernet cable.







Basic Description:

High-flexibility industrial Ethernet towline bus cable, Category 5e (Cat5e) SF/UTP PUR, 4x2x26AWG/19, blue color. Industrial high-flex towline Ethernet cable, Cat5e 4-pair 26AWG/19 towline cable, suitable for high-flexibility and frequent motion control wiring in towline applications. It has 4 pairs of 8-core shielded wires and a PUR outer sheath in clear water blue color. The cable has a cross-sectional area of 0.14 mm and an approximate outer diameter of 6.2mm.







Performance & Features:

High-flexibility industrial Ethernet communication shielded cable towline.



Industrial Ethernet high-flex CAT5e SF/UTP 4x2x26AWG/19 with PUR (Polyurethane) sheath in blue color, with an approximate outer diameter of 6.2mm.

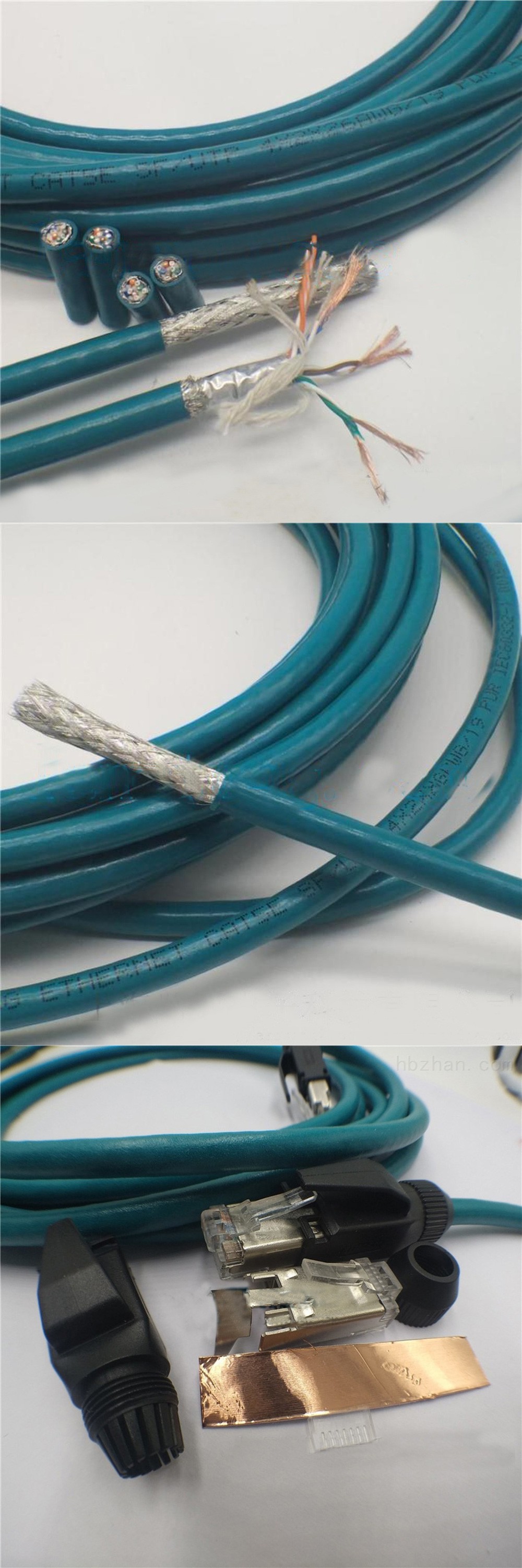

Cable Structure:

Conductor: Multi-stranded copper conductors, 26AWG, 0.14mm (19/0.1).

Pairs: Four pairs of eight-core twisted wires.

Insulation: PE (Polyethylene).

Wire colors: 1. White/Blue, Blue color 2. White/Orange, Orange color 3. White/Green, Green color 4. White/Brown, Brown color.

SF/UTP: Aluminum foil shielded with tinned copper braid.

Sheath: PUR (Polyurethane).

Color: Blue, approximate RAL5021.

Approximate Outer Diameter: 6.2mm.

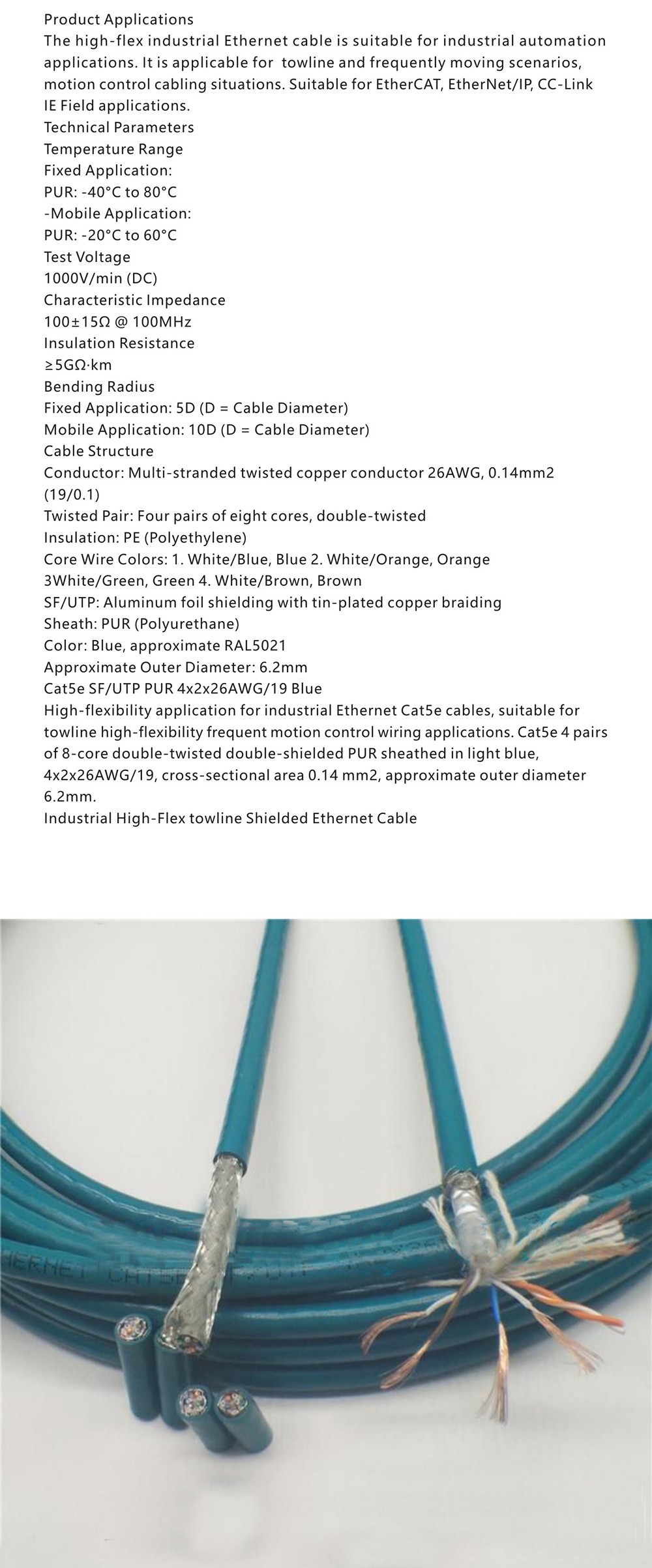

Technical Parameters:

Temperature Range:

Fixed Application: PUR: -40°C to 80°C

Mobile Application: PUR: -20°C to 60°C



Test Voltage:

1000V/min (DC)



Characteristic Impedance:

100±15Ω at 100MHz



Insulation Resistance:

≥5GΩ·km



Bending Radius:

Fixed Application: 5D (D= Cable Diameter)

Mobile Application: 10D (D= Cable Diameter)



Applications:

High-flexibility industrial Ethernet cables can be used in industrial automation settings. They are suitable for use in towline applications or scenarios with frequent movement, as well as in motion control wiring applications. They are also suitable for EtherCAT, EtherNet/IP, and CC-Link IE Field applications.



The packaging method：

100 meters per roll, 200 meters per roll, and 500 meters per roll of CAT5e SF/UTP 4x2x26awg/19 with PUR (Polyurethane) sheath.
