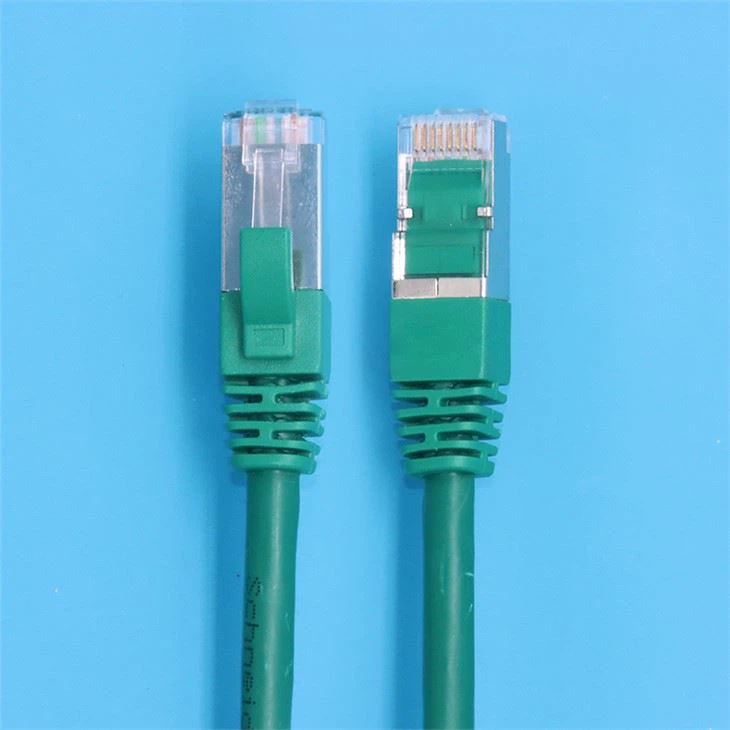

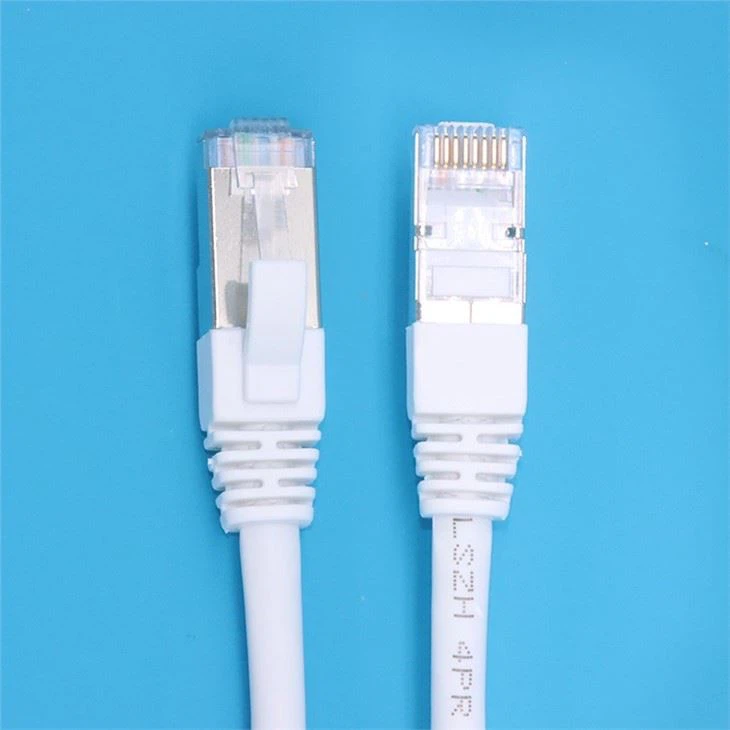

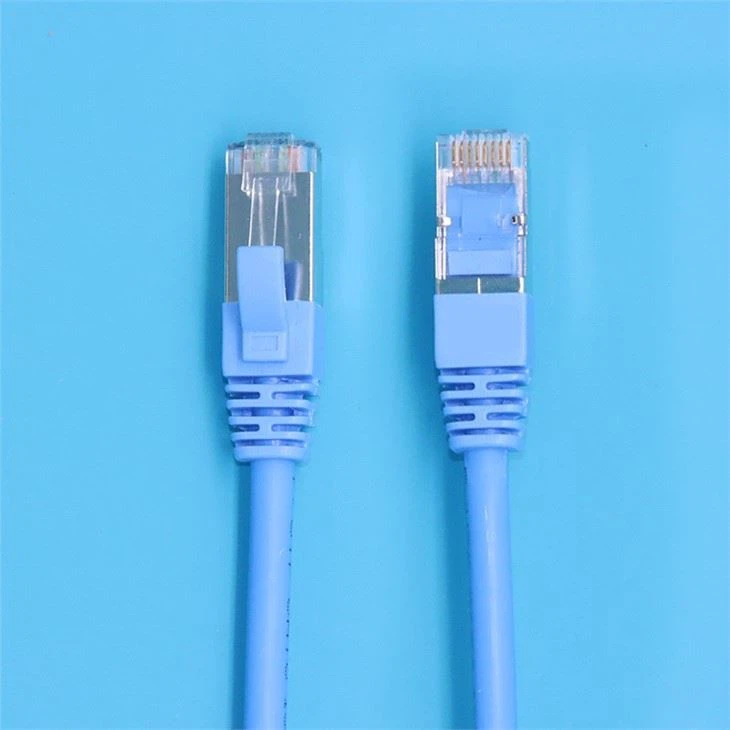

CAT6A Shielded Patch Cord
Cobtel CAT6A Shielded Patch Cords significantly enhances a cord’s alien performance. It use the combination of RJ45 termination, strain relief boot, grounding assurance and balance cabling to manufacture shielded patch cords that consistently support high performance. This performance is further...
Description
Cobtel CAT6A Shielded Patch Cords significantly enhance a cord's alien performance. It uses the combination of RJ45 termination, strain relief boot, grounding assurance, and balance cabling to manufacture shielded patch cords that consistently support high performance. This performance is further enhanced when connected to Cobtel keystone jacks or patch panels. To achieve better performance, the plug termination must provide target transfer impedance with an optimal shield termination meanwhile not changing the LAN cable's impedance characteristics.
Specification:
Product Name | CAT6A Shielded Patch Cord |
Shielding Type | Shielded (FTP) |
Termination End | RJ45 plug |
Reference Standard | ISO/IEC 11801, ANSI/TIA-568-C.2 |
Conductor Type | Stranded |
Conductor Material | Pure Bare Copper |
Wire Gauge (AWG) | 28AWG 4-pair precision twisted cables. |
Conductor Qty | 4 Twisted Pairs |
Connector Type | Strain Relief Boot |
Jacket Materials | PVC(CM)/LSZH |
Standard Compliance | RoHS/REACH compliant, UL, IEC |
Core Color | A. White-Blue, B. White-Orange, C. White-Green, D. White-Brown |
Features:
Support 10Gbase-T Ethernet to get more reliable data transmission.
The patch cord speeds up to bandwidth 500MHz communications.
Mini Category 6A 28AWG patch cords are 100% tested for performance, reliability, and long life.
The 28AWG design improves LAN cable density with a reduced cross-sectional area, promoting increased air flow and rack ventilation.
RJ45 plugs with 50 microinches gold-plated connectors are ideal for high-density applications.
A variety of lengths for all CAT6A FTP cables.
Product Highlights:

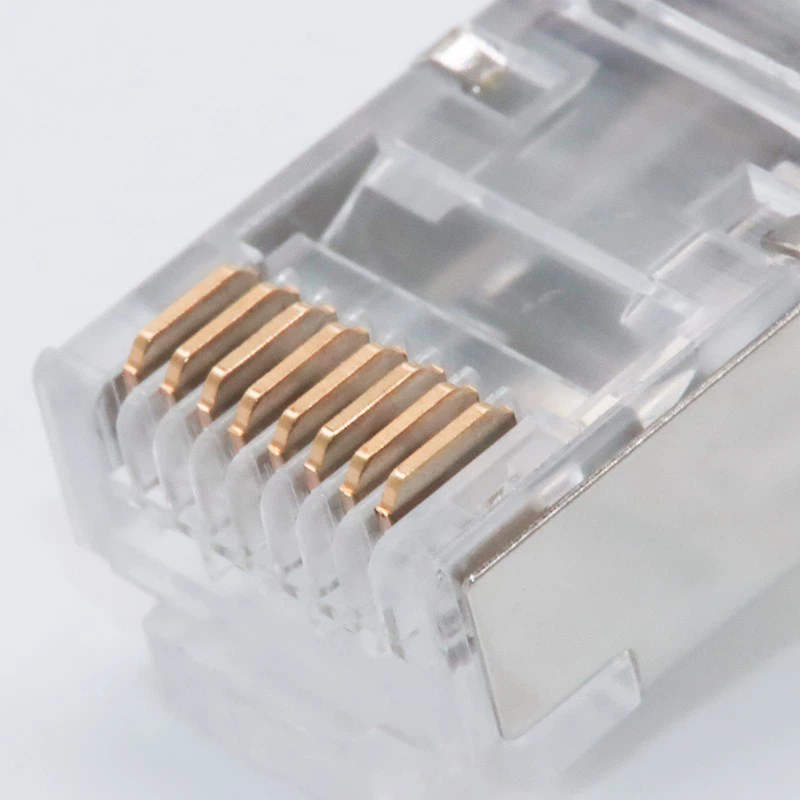

RJ45 Modular Plug
The modular plugs apply 50" golding plating to provide the highest level of electrical signal performance.

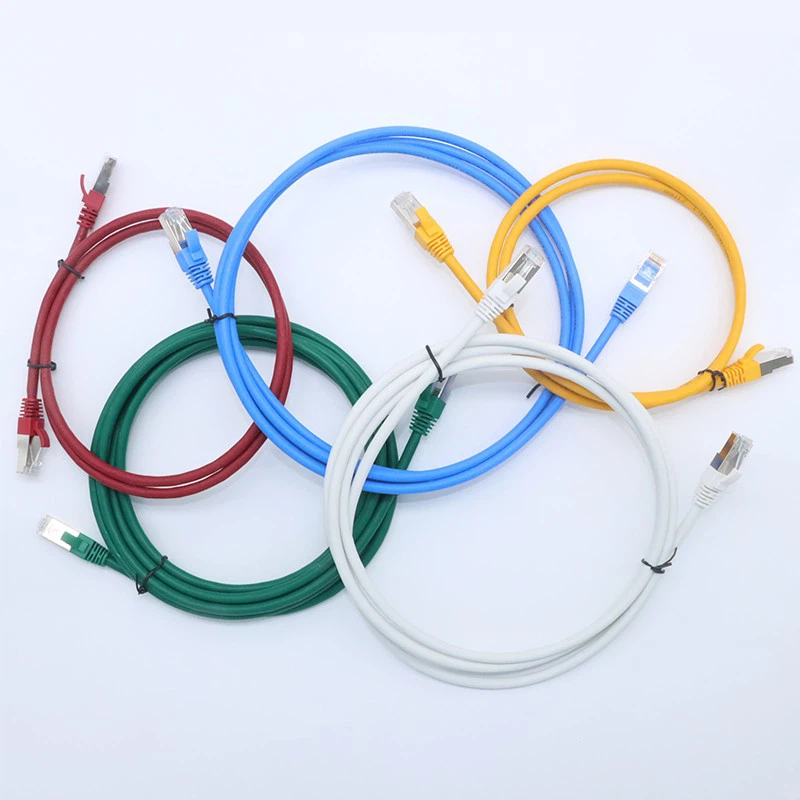

Various Colors Jacket
White ( RAL9016)/Blue ( RAL5017 )/Grey ( RAL7042 )/Red ( RAL3020 )/Orange ( RAL 2003 )/Yellow ( RAL1018 )/Green ( RAL6016 )
Strain Relief Boot
The boot increases the friction for sliding
Fluke Networks-Cable Testing
CAT6A Shielded Patch Cord passes the Fluke patch cord test, for example, 100% Cat.6A Component Test, NEXT, PS NEXT, ACR-F, PS ACR-F, ACR-N, PS ACR-N as well as RL.
Click and browse more Cat6a patch cord
To see our factory's production capacity and domestic and international certification. Click About Us
