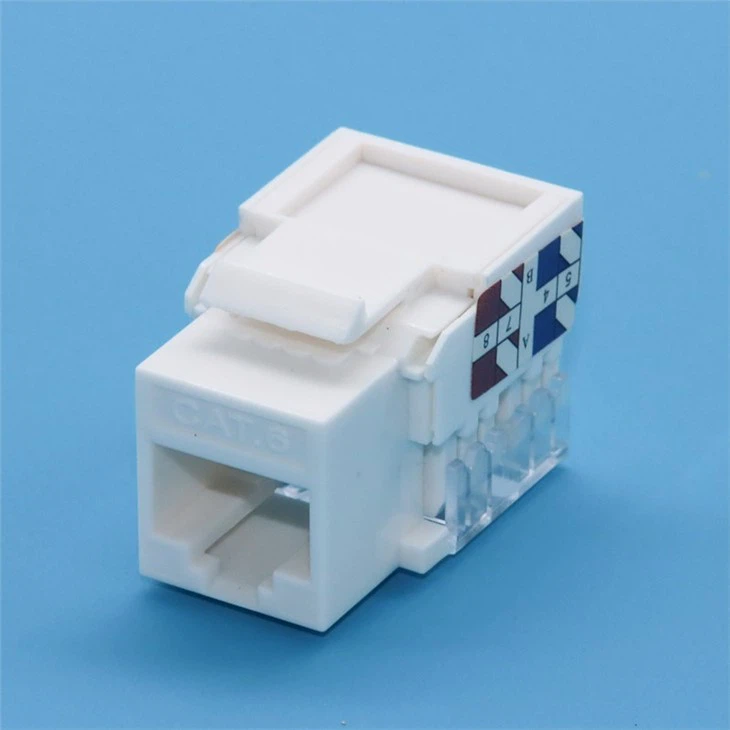

Cat6 Unshielded RJ45 Keystone Coupler
It is a Punch Down Cat6 Unshielded RJ45 Ethernet Keystone Jack with 90 degree teminating. Cobtel Cat6 RJ45 keystone jack also known as the network female connector, is usually used together with panels and distribution panels for equipment and work rooms. Cat6 Unshielded RJ45 Ethernet Keystone Jack can connect to the network cable at the same time, and the connection is very flexible, in addition to protect the equipment interface from damage, but also can beautify the entire network wiring environment. The Cat6 Unshielded RJ45 Ethernet Keystone Jack is generally used in the enterprise network or the home network.
Description
Product Material: Phosphor Bronze contacts, environmentally friendly PC plastic
Applicable System: Category 6 Unshielded System, capable of transmitting 1000Mbps data flow
Compliance Standards: ANSI/TIA 568.2-D, ISO/IEC 11801-1:2017, IEC 60603-7-4, YD/T 926.3-2009
Compatible Cable: 23-26AWG (0.52mm-0.57mm)
Process Features: Bent pin design, nickel-plated contacts, gold-plated spring contacts
Plug/Unplug Cycles: ≥1000 times, Termination Cycles: ≥250 times
Operating Temperature: -20 to 75℃
Termination Method: 180° tool termination
Quality Inspection Requirements: Pass Fluke 90-meter Permanent Link test
Product Certification: Certified by the Information Industry Data Communication Product Quality Supervision and Inspection Center
Quality Assurance: 25-year warranty and replacement guarantee
Features:
* Ethernet Jacket RJ45 for Category 6 channel network, provides superior function and alleviates external crosstalk.
* 45-degree angled port for an easy connection to network cables.
* Support Cat6 automatic negotiation to be compatible with hybrid network server bandwidth from 10Mhz to 250Mhz.
* IDC modules compatible with both T568A and T568B wiring patterns.
* Work with any wall plate, patch panel, or surface-mount box.
* Min 750 times plugging and unplugging.
* Meet UL1863, IEC60603-7 and ANSI/TIA-568C.2
Product Name | Cat6 UTP Keystone Jack |
Angel | Degree 90 |
Compatible Devices | Faceplate, panels |
Connector Type | RJ45 |
Feature | Punch Down |
Performance | Fluke OK |
Housing | ABS |
Contacts | bronze |
Bandwidth Support | 250Mhz |
Color | black, white, grey... |
Cable Dimension | solid or stranded copper conductors 23-26AWG |
Storage Temperature | -40°C to +70°C |
Working Temperature | -10°C to +60°C |
