YH6216GS-M Managed Ethernet Switch

YH6216GS-M is a managed industrial Ethernet switch that complies with FCC, CE, and RoHS standards. It supports 2 fiber optical ports and 16 gigabit RJ45 ports, and supports Ethernet layer 2 protocols required in industrial environments, ensuring network stability. This series of switches adopts a low-power, fanless design, ensuring no noise interference, while supporting a working temperature range of -40 to 80℃ and good EMC electromagnetic compatibility performance, ensuring stable operation in harsh industrial environments, providing secure and reliable solutions for building fast and stable network terminal access networks in industrial applications such as factory automation, intelligent transportation, video surveillance, and other industrial fields.



Technical Specifications

Product Name: Managed Industrial Ethernet Switch with 2 Fiber Optical Ports and 16 RJ45 Ports Product Model: YH6216GS-M-SFP

Product Description: Managed industrial Ethernet switch with 16 Gigabit RJ45 ports and 2 fiber optical ports.

Port Description: 16 RJ45 ports, 2 fiber optic ports, and 1 management port

Network Protocol:

IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1ab-Link Layer Discovery Protocol, IEEE802.1D-Spanning Tree Protocol, IEEE802.1w-Rapid Spanning Tree Protocol, APS, IEEE802.1Q-VLAN Tagging, IEEE802.1p-Class of Service, IEEE802.1X-Port  Based Network Access Control



RJ45 Ports: 10/100/1000M auto-sensing, full/half duplex MDI/MDI-X adaptive

Fiber Optic Ports: 1000BaseFX port (SFP slot)

Switch Properties Application Layer: Layer 2

Switching Capacity: 56G

Packet Forwarding Rate: 42Mpps

MAC Table: 8K

Buffer: 12Mbit

Latency: <3μs

Switching Method: Store-and-Forward

Power Consumption: <10W

Protection Grade: IP40



LED Indicators

Power Indicator: PWR

Interface Indicators: RJ45, Fiber (Link/ACT)

Power

Input Voltage: DC12-57V (dual redundant backup power)

Terminal Block: Phoenix Terminal (Industrial Terminal)

Lightning and Surge Protection (Power): 5000A (8/20μs)

Supports dual power redundancy

Supports built-in overcurrent protection of 4.0A

Protection supports reverse connection protection



Other Specifications

Operating Environment

Operating Temperature: -40°C to 85°C (-40°F to 185°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)



Management and Maintenance

Supports Console, WEB management modes

Supports SNMP v1/v2/v3

Redundancy Technology: Supports YH-ring network technology, self-healing time <50ms

Supports STP/RSTP/MSTP

Multicast Technology: Supports IGMP v1/v2/v3, IGMP snooping

Supports GMRP, supports static multicast



Switching Functionality

Supports port rate limiting, port aggregation, and port flow control

Supports port VLAN, IEEE 802.1Q VLAN

Supports broadcast storm suppression

Has identification and access control functions for front-end cameras, unauthorized camera recognition and rejection functions, and terminal impersonation recognition functions



Network Attack Prevention: IP scan protection, zombie protection, UDP port scan protection, TCP port scan protection, worm virus transmission protection



Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m (80-1000MHz)

IEC(EN)61000-4-4(EFT): Power line: ±4kV; Data line: ±2kV

IEC(EN)61000-4-5(Surge): Power line: ±4kV CM/±2kV DM; Data line: ±2kV

IEC(EN)61000-4-6(Radio-frequency conduction): 3V (10kHz-150kHz), 10V (150kHz-80MHz)

IEC(EN)61000-4-16(Common-mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Enclosure: IP40 protection level, metal enclosure

Size: 175.6 × 135 × 45.5mm

Weight: 0.82Kg

Mean time between failures: 300,000 hours

Warranty: 5 years

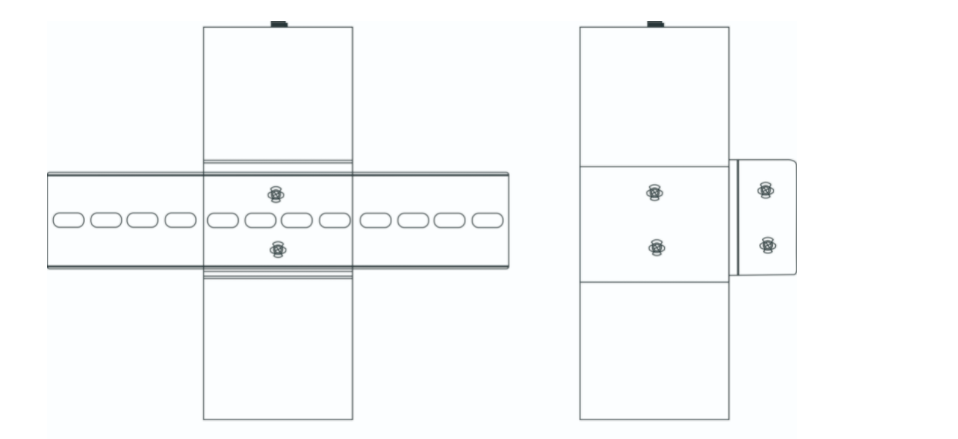

Installation Methods



                                                          Guide rail type installation              Wall-mounted installation

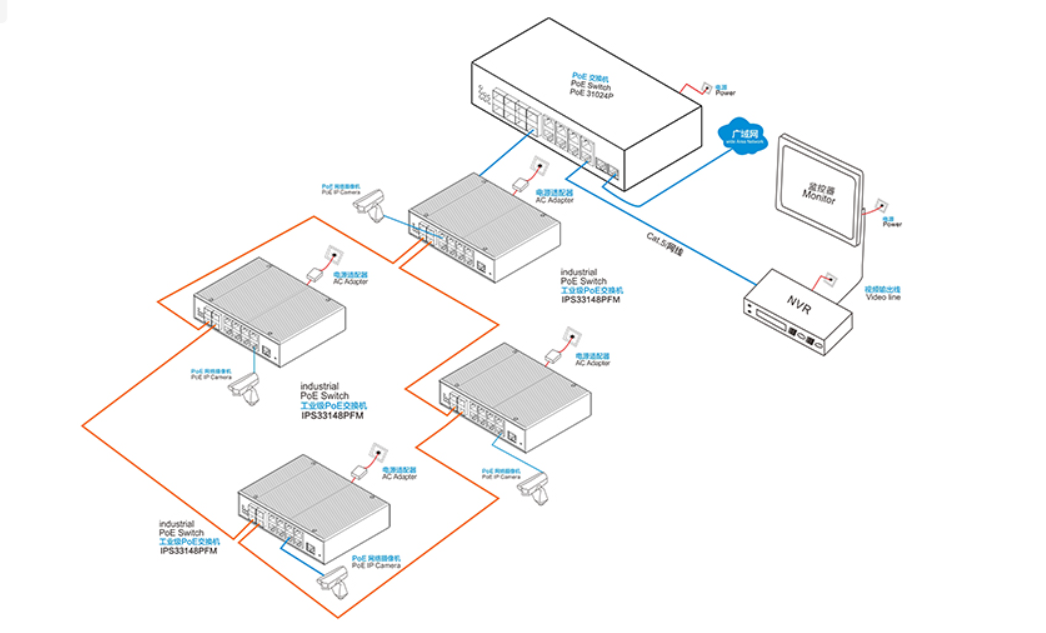

Connection diagram
