OEM Cat7 10G Shielded Ethernet RJ45 Plug

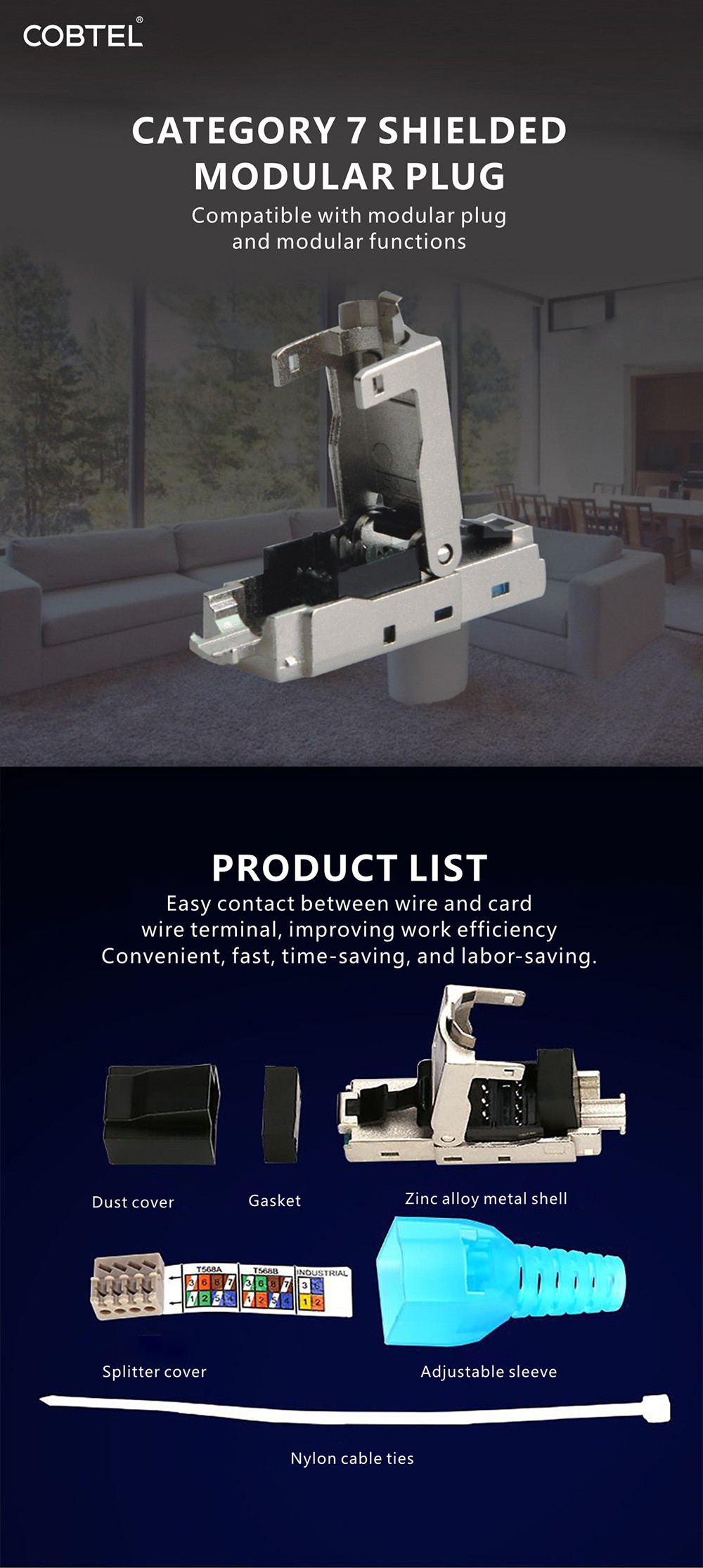

Cat7 shielded RJ45 Plug, compatible with rj45 plug and keystone module functions. The complete set of products includes a zinc alloy metal shell crystal head, dust cover, gasket, separator cover, adjustable sleeve, and nylon cable tie. It is suitable for Cat7/6A shielded Ethernet cables, suitable for 23-24AWG wire gauge cables, or large diameter Ethernet cables with a single-strand copper conductor of 0.5-0.58mm diameter (1.3-1.5mm outer diameter of the core). Experience 10G Ethernet speed with high-speed transmission without packet loss.

1. Suitable for communication socket connections between equipment in the data center and work areas.

2. Compact design with clear universal wiring sequence labels on the module, enabling accurate termination.

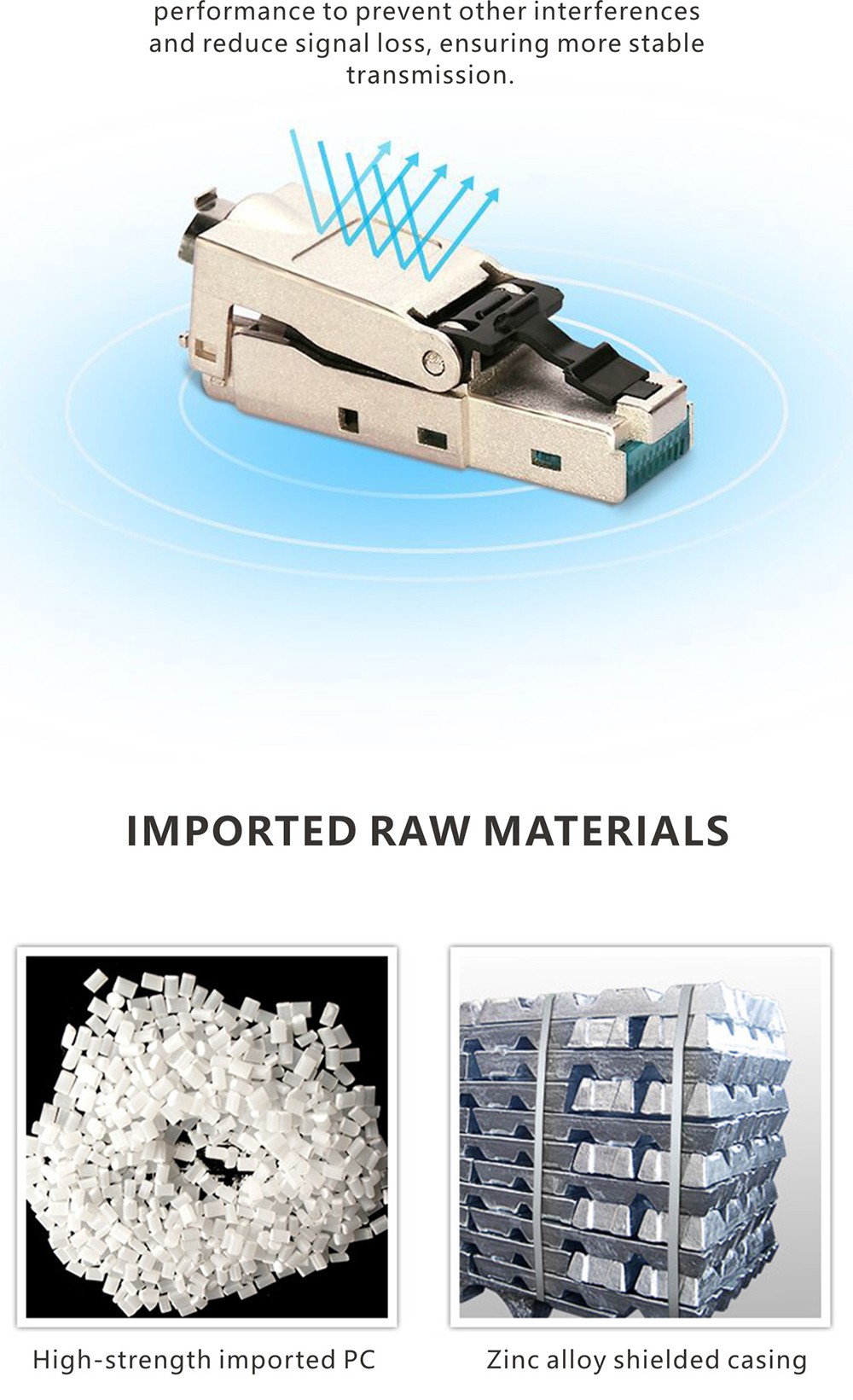

3. The shielded housing adopts an integral die-casting process with a fully enclosed shielding structure, reducing electromagnetic interference.

4. Compliant with Category 7 transmission standards, achieving transmission performance of 10GB per second (ETL-tested with certification), and modules from the same series have passed Category 8 testing.

5. The housing material of the termination interface is made of PC material, and the IDC wire clamps are made of phosphor bronze. They support termination 300 times or more. The eight contact pins are made of phosphor bronze with a gold plating of 6-50U", rated for 1500 or more plug and unplug cycles.

6. Tool-free design for easy installation. The circular protective groove at the rear end protects the cable, reducing excessive bending and detachment after termination.

7. Backward compatible and can be used with lower category systems, reducing investment loss for users.
