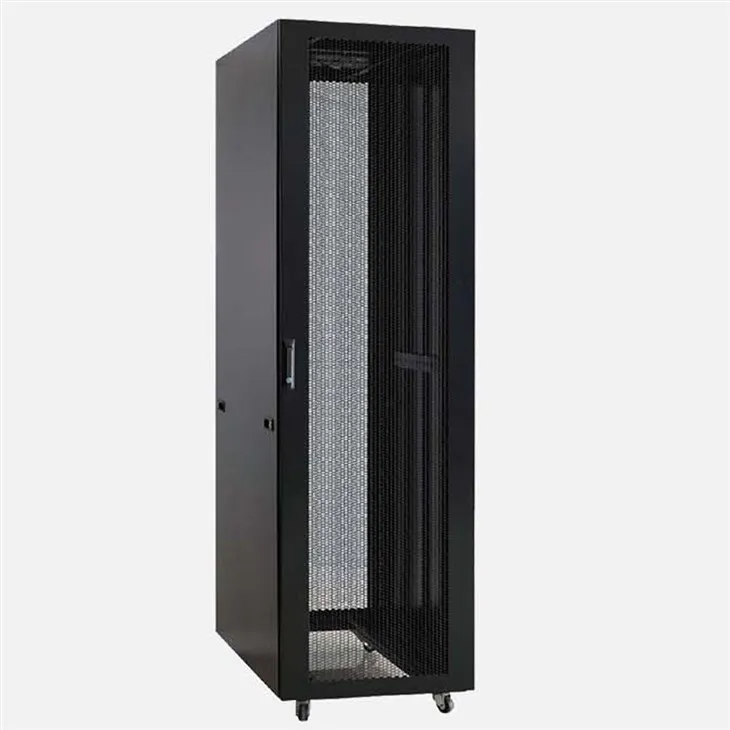

16-folded Frame Section Server Rackmout Cabinet
Product Description: The high-density hexagonal flat single-open mesh front door and high-density hexagonal flat double-open mesh rear door feature a flat hexagonal hole design with a ventilation rate of over 80%. This effectively solves issues related to server heat dissipation, mechanical...
Send Inquiry
Add To Inquiry
Description
Product Description:
The high-density hexagonal flat single-open mesh front door and high-density hexagonal flat double-open mesh rear door feature a flat hexagonal hole design with a ventilation rate of over 80%. This effectively solves issues related to server heat dissipation, mechanical protection, and external observation of machine operation status.
Product Features:
Sixteen-fold steel frame sectional welded frame with a static load-bearing capacity of 1600KG, equipped with brackets.
Symmetrical section design of the steel frame for increased flexibility.
Built-in three-way ground connection for easy fixation with the base.
Convenient adjustment of the height of the support feet from the inside of the cabinet during installation.
Multiple closable cable routing holes for easy cable management.
Angle ruler with scale for quick equipment positioning, installation, and grounding.
High-density mesh front door with single-open design and high-density mesh rear door with double-open design, with a mesh ventilation rate of over 75%.
Front and rear isolation inside the cabinet to effectively prevent air turbulence between cold and hot airflow.
A rich selection of optional accessories to address distribution, wiring, sealing, and other issues.
Technical Specifications: Physical Performance: Protection Level: IP20 Main Material: High-quality SPCC cold-rolled steel plate/fingerprint-resistant aluminum-zinc coated steel plate Material Thickness: Angle ruler - 2.0mm, Side beams - 1.5mm, others ≥ 1.0mm Load Capacity: Static load-bearing capacity of 1600kg Colors: RAL9005, RAL7035 Surface Treatment: Degreasing, cleaning, phosphating, electrostatic spraying
| Product Parameter | ||||
| Model No. | Width(mm) | Depth(mm) | Height(mm) | Capacity(U) |
| K6.6042■00 | 600 | 1000 | 2000 | 42 |
| K6.6142■00 | 600 | 1100 | 2000 | 42 |
| K6.6242■00 | 600 | 1200 | 2000 | 42 |
| K6.8042■00 | 800 | 1000 | 2000 | 42 |
| K6.8042■00 | 800 | 1100 | 2000 | 42 |
| K6.8242■00 | 800 | 2000 | 2000 | 42 |
| K6.6047■00 | 600 | 1000 | 2200 | 47 |
| K6.6147■00 | 600 | 1100 | 2200 | 47 |
| K6.6247■00 | 600 | 1200 | 2200 | 47 |
| K6.8047■00 | 800 | 1000 | 2200 | 47 |
| K6.8147■00 | 800 | 1100 | 2200 | 47 |
| K6.8247■00 | 800 | 1200 | 2200 | 47 |
