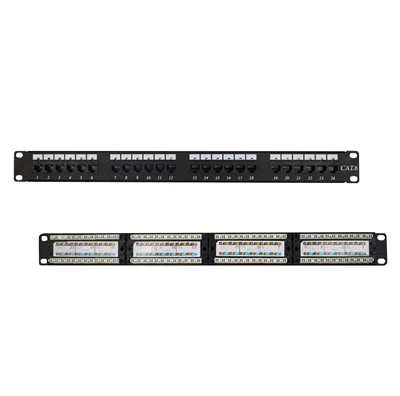

High-density 1U 48 Port Cat6 UTP Patch Panel

1.  24-port Category 6 RJ45 unshielded patch panel meets the requirements of gigabit Ethernet application systems, suitable for communication socket connections between equipment and work areas.

2.  PCB wiring features a balanced design and refined manufacturing process, reducing interference. It has high margin and backward compatibility, supporting downward compatibility with CAT6 and lower category systems, minimizing investment loss for users.

3.  RJ45 sockets have two common wiring sequences, T568A, and T568B, with clear labeling on the module for accurate and fast termination.

4.  The shell material of the termination interface is made of PC engineering plastic, complying with ROHS and REACH environmental requirements. It has stable color difference and UV resistance.

5.  IDC wire clamps are made of phosphor bronze (Grade 8-03), supporting termination over 250 times. They are suitable for 23-26AWG cables.

6.  The card interface adopts a 45-degree inclined Corning fixation method, providing good airtight protection. It is used in conjunction with Corning termination tools.

7.  The contact pins adopt a high-low pin design, achieving maximum balance for wire pairs.

8.  The contact pin contact material has a 50μm gold-plated layer, with durability for 1000 plug and unplug cycles.

9. Thickened steel plate, equipped with a cable management rack and dust cover, compact in size, open-style wiring is more convenient for wire punching, with a wire management groove at the back for safer grounding.

The Category 6 1U 48-port high-density unshielded patch panel has been certified by the Ministry of Industry and Information Technology. It meets the performance requirements of Category 6 components, providing a usable bandwidth of up to 250MHz. It is the third-generation update optimization with a 45-degree angle termination port. It undergoes strict inspection and testing processes, making the product more refined.
