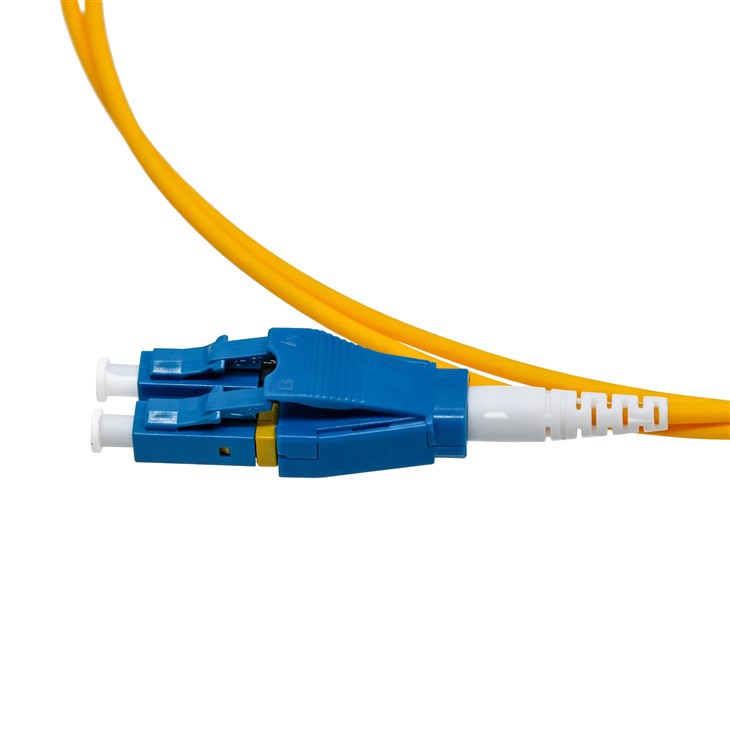

LC/UPC Singlemode Duplex LSZH Optical Patch Cord 2.0MM factory

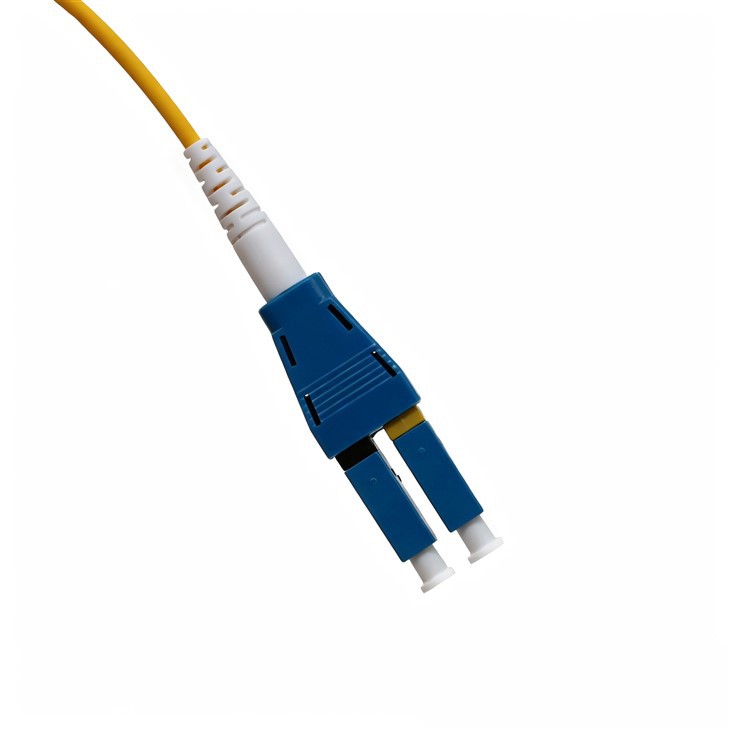

LC/UPC Singlemode Duplex LSZH Optical Patch Cord 2.0MM best

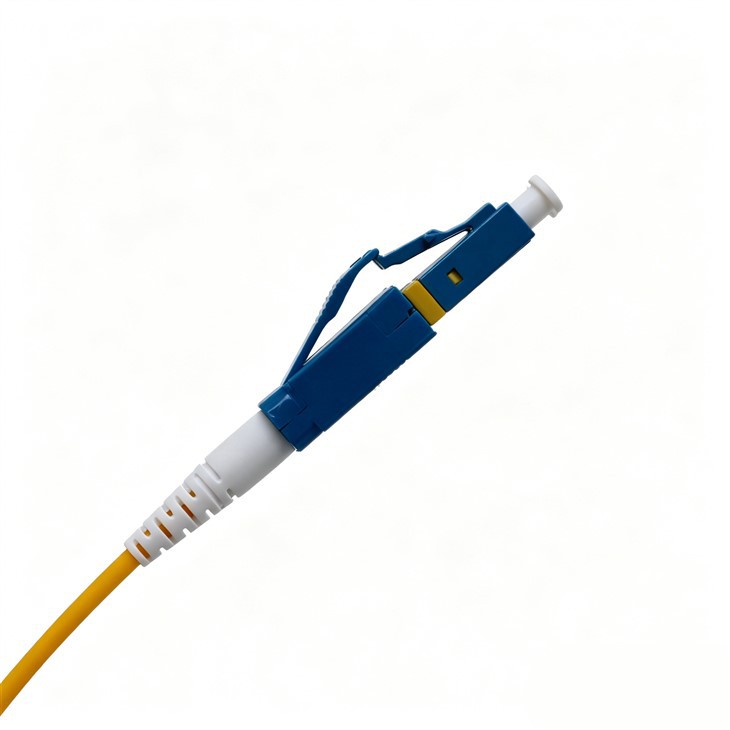

LC/UPC Singlemode Duplex LSZH Optical Patch Cord 2.0MM high quality

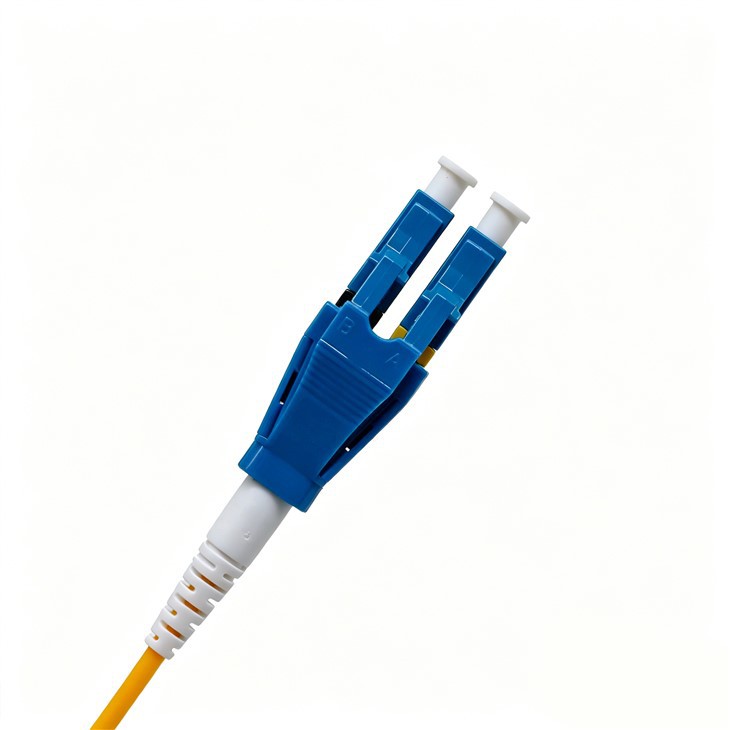

LC/UPC Singlemode Duplex LSZH Optical Patch Cord 2.0MM price

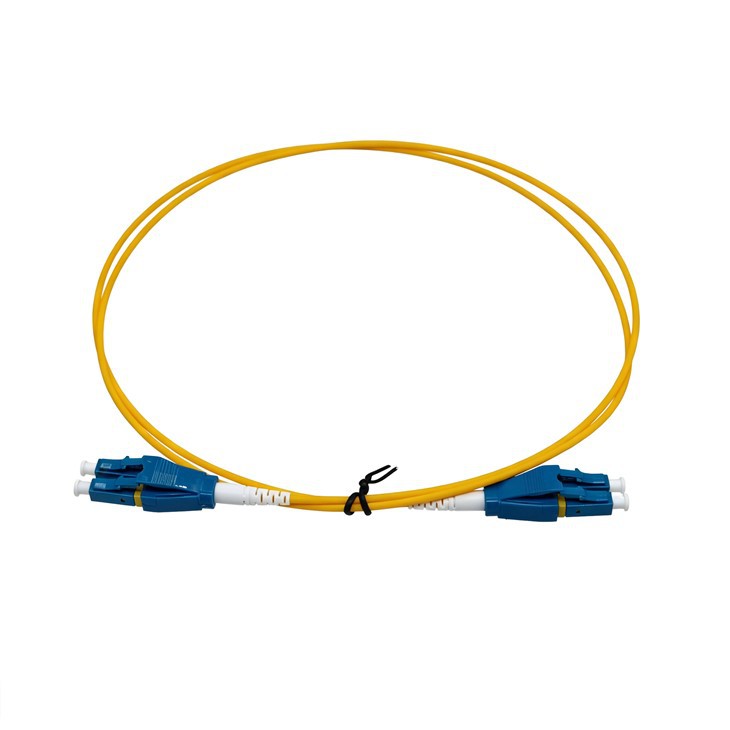

LC/UPC Singlemode Duplex LSZH Optical Patch Cord 2.0MM
Effortlessly upgrade your network with our OS2 LC/UPC duplex LSZH fiber patch cord. Trusted by professionals. Zero signal loss. Order factory-direct today.
Send Inquiry
Add To Inquiry
Description
7 Reasons LC/UPC Singlemode Fiber Patch Cord Wins Every Time
LC/UPC · OS2 · 9/125 · LSZH
The Clearest Signal Your Network Has Ever Had
Meet the LC/UPC Singlemode Duplex LSZH Optical Patch Cord - 2.0 mm, 9/125 OS2. Built for zero-compromise data centers, enterprise LANs, and telecom infrastructures where signal integrity is not negotiable.
LC/UPC Connector Type
9/125 μmFiber Mode
OS2Fiber Standard
2.0 mmJacket Diameter
LSZHJacket Material
DuplexConfiguration
≤0.3 dBInsertion Loss
≥50 dBReturn Loss
01 · Product Overview - Why This LC Fiber Optic Patch Cord Is the Industry's Go-To Choice
In a market flooded with cheap cables that degrade your network's performance, our LC/UPC singlemode duplex LSZH optical patch cord stands apart - not just as a cable, but as a precision-engineered data conduit trusted by telecom carriers, hyperscale data centers, and enterprise IT teams around the world.
This is an OS2 fiber patch cord built to the tightest optical tolerances in the industry. The 9/125 μm single-mode core carries your signal over long distances with virtually zero attenuation, while the Low Smoke Zero Halogen (LSZH) jacket protects people and equipment in the event of a fire - making it the right choice for any environment where safety codes and signal quality both matter.
Every unit leaves our factory pre-tested with insertion loss ≤0.3 dB and return loss ≥50 dB, and ships with an individual test report. When you source from a fiber optic patch cord manufacturer that tests every single cable, you stop replacing connectors and start building infrastructure that lasts.
Factory-direct advantage: As a vertically integrated fiber optic patch cord factory, we control every step - fiber drawing, ferrule grinding, end-face polishing, and final optical testing - so there is no middleman inflating your cost or hiding quality problems.
02 · LSZH Safety & Compliance - The LSZH Fiber Patch Cord That Keeps People Safe
Standard PVC jackets release toxic hydrogen chloride gas when they burn. In a crowded data center or office building, that is a serious life-safety risk. Our LSZH fiber patch cord uses a Low Smoke Zero Halogen compound that emits minimal smoke and produces no halogen gases under fire conditions.
This makes our lszh fiber patch cord fully compliant with IEC 60332, IEC 61034, and IEC 60754 - the international standards required in tunnels, airports, hospitals, schools, and enclosed building risers where evacuation is difficult and air quality under fire is critical.
You are not just buying a cable. You are buying compliance, liability protection, and peace of mind - bundled into a high-performance patch cord fiber optic that ships ready to deploy.
- IEC 60332-1 flame retardant
- IEC 61034 low smoke emission
- IEC 60754 zero halogen gas
- RoHS compliant materials
- Suitable for plenum and riser spaces
- Indoor and outdoor-rated variants available
LSZH vs PVC at a Glance
| Property | LSZH | PVC |
|---|---|---|
| Smoke Density | Minimal | Dense, black |
| Halogen Gas | None | HCl released |
| Flame Spread | Self-extinguish | Propagates |
| Compliance | IEC 60754 | Not compliant |
| Equipment Corrosion | No | Yes |
| Suitability | All environments | Restricted |
03 · OS2 Optical Performance - What Makes an OS2 Fiber Patch Cord Worth Every Penny
Not all single-mode fiber is equal. OS2 designates a tighter cable standard - specifically designed for outdoor and long-haul applications - with a maximum attenuation of 0.4 dB/km at 1310 nm and 0.4 dB/km at 1550 nm. Our os2 fiber patch cord consistently performs well within those limits, delivering stable, repeatable results that meet or exceed Telcordia GR-326-CORE requirements.
≤0.3 dB Insertion Loss
≥50 dB Return Loss (UPC)
0.4 dB/km Max Attenuation
10 km+ Max Transmission Range
1000+ Mating Cycles (Endface)
The UPC (Ultra Physical Contact) polish on both connectors creates a domed end-face geometry that ensures physical contact between fiber cores, minimizing back-reflection and signal loss. This is why our optical patch cord lc delivers return loss consistently above 50 dB - a benchmark that keeps high-speed transceivers happy and bit-error rates near zero.
The 9/125 μm core-to-cladding ratio supports single mode fiber optic patch cord transmission at 1310 nm and 1550 nm wavelengths - the industry standards for DWDM, CWDM, and PON networks carrying 10G, 40G, 100G, and beyond.
04 · LC Connector Engineering - The LC Fiber Optic Patch Cord Built for High-Density Deployments.
The LC (Lucent Connector) was engineered from the start for high-density fiber distribution panels. Its 1.25 mm ferrule - half the size of an SC connector - lets you pack twice the port count into the same rack unit. Our lc fiber optic patch cord uses precision zirconia ceramic ferrules ground to a surface roughness below 10 nm, ensuring consistent optical contact every single time the connector is mated.
1.25 mm Zirconia Ferrule
Precision-ground ceramic ferrule with ≤0.5 μm core concentricity. Maintains alignment under vibration and repeated mating cycles.
Positive-Latch Housing
Audible click-lock mechanism prevents accidental disconnection in live production environments. Rated for 1,000+ insertion cycles.
Color-Coded Boot
Blue boot indicates single-mode/UPC polish per TIA-568 standard. Instant visual verification during installation and maintenance.
Dust Caps Included
Pre-installed on all connectors. Keeps the end-face pristine from factory to field. Remove only at the moment of connection.
Duplex Clip Bridge
Molded polarity clip locks both connectors into alignment. Eliminates the common Tx/Rx swap error that wastes commissioning time.
Custom Length Available
Standard lengths from 0.5 m to 30 m. Custom cuts available for OEM and project-specific deployments with no MOQ surcharge.
05 · Duplex Design & Cable Construction Inside the Duplex Fiber Optic Patch Cord - What You're Really Paying For
A duplex fiber optic patch cord carries both transmit and receive strands in one unified cable assembly. Our 2.0 mm zipcord design keeps both fiber strands bonded with a thin web - easy to split at the connectors, impossible to mis-route in the middle of a run.
The 2.0 mm jacket diameter hits the sweet spot between flexibility and protection. It bends around tight corners in dense patch panels without exceeding the minimum bend radius, and it resists the abrasion and crushing loads of a busy cable tray. At the same time, it is slim enough to keep airflow unrestricted in high-density 1U panels.
Inside the LSZH outer jacket, each fiber strand is surrounded by a 900 μm tight buffer, then a Kevlar aramid yarn strength member, then the 2.0 mm sub-jacket. This four-layer construction gives you a tensile load rating of 100 N - more than enough to survive installation pulls without affecting ferrule alignment.
Cable Cross-Section
| Layer | Material / Spec |
|---|---|
| Core | 9 μm single-mode glass |
| Cladding | 125 μm silica |
| Coating | 250 μm UV acrylate |
| Tight Buffer | 900 μm PVC/LSZH |
| Strength Member | Aramid yarn (Kevlar®) |
| Outer Jacket | 2.0 mm LSZH |
| Color | Yellow (standard OS2) |
Min. Bend Radius: 30 mm (dynamic) · 15 mm (static)
Operating Temp: −40°C to +85°C
Tensile Load: 100 N (long-term 40 N)
Crush Resistance: 100 N/10 cm
06 · Applications - Where This Optical Patch Cord Delivers the Most Value
This patch cord fiber optic is not a general-purpose cable - it is a precision instrument deployed where signal integrity, safety compliance, and long service life are all required simultaneously. Here is where our customers rely on it most:
01 Data Centers
Top-of-rack to patch panel connections. OS2 handles 100G-SR4 and 400G-DR4 transceiver wavelengths without crosstalk.
02 Telecom Central Offices
DWDM and ROADM system interconnects where return loss must exceed 45 dB to prevent reflections that destabilize laser sources.
03 Enterprise LAN / MAN
Building-to-building backbone runs and riser cables where LSZH compliance is mandated by local fire codes.
04 FTTx / PON Networks
OLT-to-splitter connections in GPON and XGS-PON deployments. Single-mode OS2 supports downstream distances up to 20 km.
05 Medical Imaging
Endoscopy, MRI suites, and diagnostic imaging systems where LSZH safety is non-negotiable and signal fidelity is life-critical.
06 Military & Aerospace
Harsh-environment installations where the wide −40°C to +85°C operating range and crush resistance prove their worth.
07 Broadcasting / AVS
tudio-to-studio signal routing and remote camera links over SDI-over-fiber where timing jitter and insertion loss budgets are tight.
08 Smart Building / IoT
Structured cabling backbone for intelligent building systems - access control, IP surveillance, BMS - on a shared fiber plant.
07 · Manufacturing & Quality - What It Means to Buy from a Real Fiber Optic Patch Cord Manufacturer
There is a difference between a trading company that resells cables and a fiber optic patch cord factory that makes them. We are the latter. Our production facility operates under ISO 9001:2015 quality management, with dedicated lines for fiber stripping, ferrule insertion, epoxy injection, curing, polishing, and end-face inspection.
Every single connector end-face is inspected under 400× interferometry. Ferrules that do not meet the IEC 61300-3-35 Grade B standard for end-face geometry - radius of curvature, apex offset, fiber height - are scrapped, not shipped. Our rejection rate is below 0.2%, which means your received batch has a defect rate that is effectively zero in real-world deployment.
100% End-Face Inspection
400× interferometric measurement of every ferrule. IEC 61300-3-35 Grade B pass/fail gate. No sampling - every connector, every batch.
Optical Test Report Included
Individual insertion loss and return loss data for each patch cord. Traceable to calibrated NIST-standard test equipment. Included free.
Vertically Integrated Production
From raw fiber and ceramic blanks to finished assembly. No subcontractors for critical steps. Full traceability from batch to shipment.
Anti-Static Packaging
Each cable individually bagged in anti-static packaging with protective dust caps installed. Arrives ready for immediate deployment.
Among global fiber optic patch cord manufacturers, the ones worth partnering with are those who can show you their rejection data, their calibration records, and their process control charts - not just a glossy catalog. We publish all of that, and we welcome factory audits.
08 · B2B Procurement Guide - How to Specify the Right Single Mode Fiber Optic Patch Cord?
Buying the wrong cable is expensive. Not because the cable costs much, but because rework - pulling wrong cable, re-dressing patch panels, retesting link budgets - costs engineer-hours that dwarf the cable price. Use this checklist before you submit your purchase order.
-
Verify fiber type: OS2 (9/125 μm) for single-mode long-distance links. OS1 is also single-mode but for shorter campus runs. Do not mix.
-
Confirm connector polish: UPC (blue) for standard data networks. APC (green, angled) for PON, CATV, and high-return-loss applications. They are not interchangeable - mating UPC to APC physically damages both connectors.
-
Specify duplex vs. simplex: Most transceiver modules (SFP, SFP+, QSFP) use duplex LC. Simplex is used for splitter outputs and passive WDM systems.
-
Check jacket rating: Require LSZH for indoor plenum/riser, buildings with restricted airflow, or any jurisdiction with IEC 60332 in their building code.
-
Measure required length accurately: Add 10–15% slack for future re-routing. Ordering too short forces splices or complete replacement.
-
Demand test data: Any reputable fiber optic patch cord manufacturer ships with per-unit optical test reports. Reject batches without traceable test data.
-
Confirm compatibility: Our LC connectors are fully compatible with Cisco, Juniper, Arista, Huawei, Nokia, Ciena, and all standard IEC-compliant LC adapters.
Pro tip for large deployments: Always order 5–10% spare cables. Installation damage and future adds are guaranteed. A buffer stock of identical lc fiber optic patch cords from the same production batch ensures color, length, and optical performance stay consistent across your entire infrastructure.
09 · Frequently Asked Questions Everything B2B Buyers Ask Before Placing a Large Order
Q: What is the minimum order quantity for this optical patch cord?
A: There is no strict minimum for standard configurations. Sample orders of 1–10 units ship within 3 business days. For OEM-labeled or custom-length production runs, lead time is 7–14 days depending on volume. Contact us for a tiered pricing schedule - the per-unit cost drops significantly at 500+ pieces.
Q: Can I get a custom jacket color or label for OEM purposes?
A: Yes. We support custom LSZH jacket colors (within the IEC color code system), custom boot colors, private-label heat-shrink printing, and custom packaging. Minimum quantity for OEM customization starts at 200 pieces. Custom color masterbatch requires an additional 5–7 days for compounding.
Q:How does this patch cord fiber compare to MTP/MPO-based solutions for high-density work?
A: LC duplex patch cords are the best fit for individual port connections between switches, servers, and transponders. MTP/MPO is preferred for parallel-optics trunking (40G/100G QSFP breakout applications). The two are complementary - MTP trunks run between panels, LC patch cords connect devices to those panels.
Q: Is this duplex fiber optic patch cord compatible with 400G transceivers?
A: LC duplex patch cords natively support 400G-DR transceivers (single-mode, PAM4 modulation, 500 m reach on OS2). For 400G-SR8 or 400G-LR8 applications using QSFP-DD with MPO-16 interfaces, you would use breakout cables rather than LC duplex patch cords.
Q: What warranty does this fiber optic patch cord come with?
A: All standard production cables carry a lifetime warranty against manufacturing defects. Optical performance is guaranteed to meet the specifications on the included test report for the service life of the cable under normal operating conditions. Damage from improper installation, excessive bend radius violation, or connector contamination is not covered but can often be repaired in the field.
Q: Can you source from this fiber optic patch cord factory directly to reduce cost?
A: Yes - that is our core proposition. We are a direct manufacturer, not a distributor. Buying factory-direct eliminates two to three levels of margin that a typical distribution chain adds. We also offer consignment stock programs and vendor-managed inventory for telecom operators and large integrators.
10 · Ready to Upgrade Your Patch Cord Fiber Supply Chain?
Join thousands of network engineers and procurement teams who trust our factory-direct lc fiber optic patch cords for mission-critical infrastructure. Request a quote, ask for a sample, or schedule a factory audit - we welcome all three.
LC/UPC Singlemode Duplex LSZH Optical Patch Cord 2.0MM 9/125 - Factory-direct from an ISO 9001-certified fiber optic patch cord manufacturer. All specifications subject to confirmation. © 2025 FiberCore. All rights reserved.
