MT Ferrule Connector For MPO MTP Cable
video

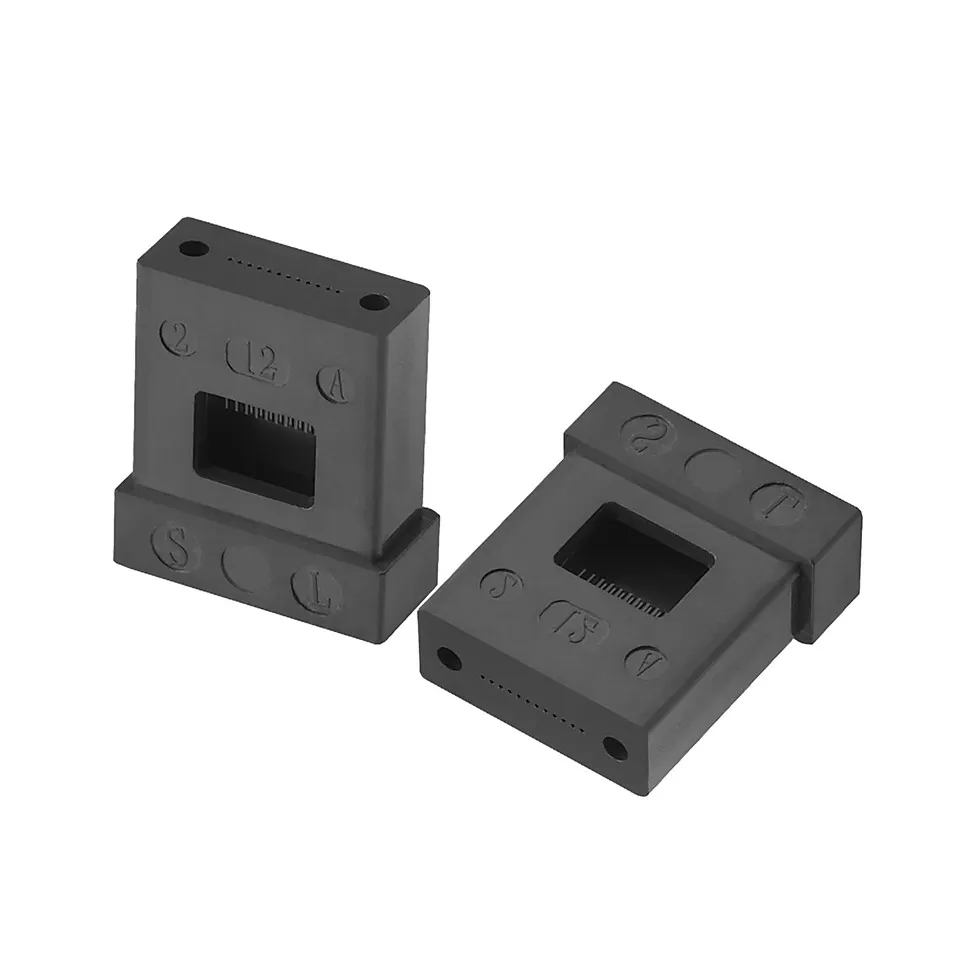

MT Ferrule Connector For MPO MTP Cable

MT Ferrule Connector For MPO MTP Cable

Effortlessly upgrade your MPO network with our precision MT ferrule connector — low insertion loss, heat-resistant PPS, 500+ cycle durability.

Send Inquiry
Add To Inquiry

Description

1

2

3

4

5

6

7

8

COBTEL · High-Precision MPO Core Component

MT Ferrule Connector for MPO / MTP Cable
- Built for 400G & 800G Networks

12 to 48 cores. PPS material. <0.35 dB insertion loss. The MT ferrule fiber optic connector your data center can trust - session after session, year after year.

≥ 500 Mating Cycles < 0.35 dB Insertion Loss −40 °C to +75 °C Eco-Friendly PPS OEM / Custom Accepted

Product Introduction

The Heart of Every High-Speed Fiber Connection

Every high-density MPO/MTP cable assembly lives and dies by one small part: the MT ferrule connector. At only 6.4 mm × 2.5 mm, our precision-engineered MT ferrule may be tiny, but it carries enormous responsibility - aligning up to 48 fiber cores with sub-micron accuracy so your 400G and 800G data flows arrive intact, every single time.

Manufactured from high-temperature-resistant, environmentally friendly PPS (Polyphenylene Sulfide) resin, this mt ferrule fiber optic connector delivers the structural stability that network engineers demand and the low insertion loss that system designers require. No deformation. No cracking. No signal surprises.

Whether you build optical interconnects for hyperscale data centers, telecom exchange rooms, broadcast studios, or industrial automation networks, this MT ferrule gives you a foundation you can confidently build a business on.

<0.35 dB Insertion Loss
500+ Mating Cycles
6.4mm Face Width
12–48 Core Options
−40→+75°C Operating Range

Application Industries

Where This MT Ferrule Solves Real Problems

B2B buyers don't purchase components - they purchase solutions to specific engineering challenges. Here is where this MT ferrule connector delivers measurable value across industries.

🏢 Hyperscale Data Centers

400G and 800G spine-leaf fabrics need ultra-dense, low-latency interconnects. Our MT ferrule ensures every fiber channel delivers consistent <0.35 dB loss across thousands of patch points - no re-polishing, no re-terminating.

📡 Telecom & Carrier Networks

Central office ODF panels and ROADM sites require connectors that survive thousands of mating cycles over decades. This mt ferrule fiber optic connector is rated for ≥500 cycles, giving carriers the long-term reliability their SLAs demand.

🏭 Industrial Automation

Factory floors expose connectors to vibration, temperature swings, and chemical vapor. PPS material resists deformation and keeps the mt ferrule dimensions stable from −40 °C to +75 °C, maintaining alignment even in harsh conditions.

📺 Broadcast & Media Production

Live production environments need instant, reliable connectivity. The precision-bored guide pin holes on this mt ferrule provide repeatable self-alignment so camera feeds and SDI signals never drop a frame during a hot-swap.

🏥 Medical & Research Facilities

Hospitals and research labs cannot afford signal degradation in imaging or data acquisition systems. Eco-friendly PPS passes RoHS requirements, and sub-micron bore precision supports the low-noise optical channels medical instruments rely on.

⚡ Energy & Smart Grid

Substations and renewable energy monitoring systems need connectors that survive wide temperature ranges and electrical interference. Fiber optic links built around this MT ferrule connector keep grid monitoring data isolated and accurate.

Key Advantages

6 Reasons Engineers Choose This MT Ferrule Over Others

Not all mt ferrules are created equal. Here is what separates this component from generic alternatives on the market.



Extremely High Bore Precision

Each ferrule body is formed using precision injection molds that hold fiber hole positions to sub-micron tolerances. The result: perfect alignment with every MPO kit, and insertion loss that stays under 0.35 dB. Precision molds mean perfectly consistent mt ferrule dimensions from batch to batch - critical for high-volume cable assembly operations.

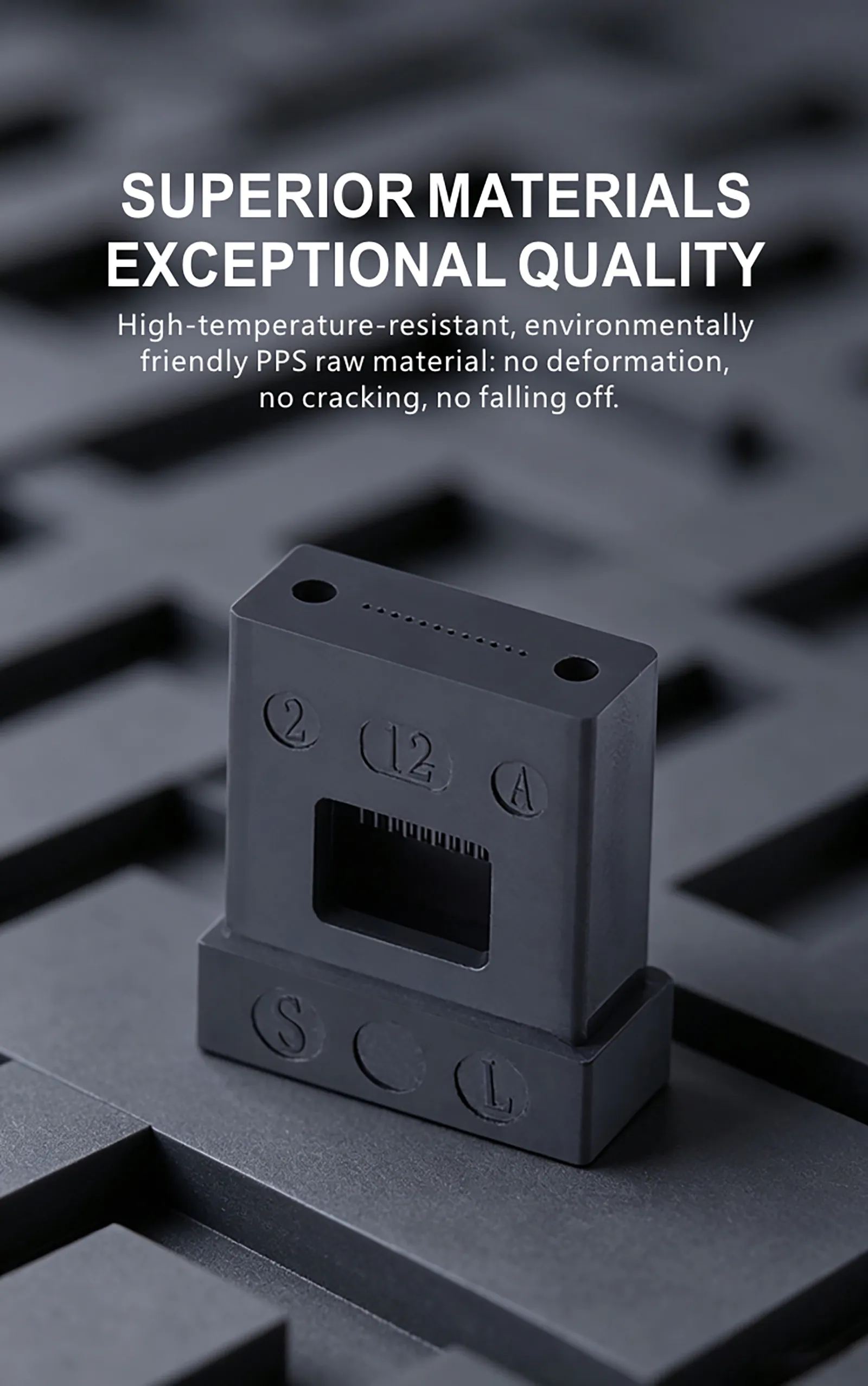

High-Temperature Resistant PPS Material

Made from premium Polyphenylene Sulfide (PPS) - an engineering plastic trusted in aerospace and automotive industries. PPS withstands sustained operating temperatures from −40 °C to +75 °C without softening, warping, or cracking. Your MT ferrule connector holds its geometry even in server rooms that run hot around the clock.



Excellent Repeatability - ≥ 500 Cycles

Durability testing confirms stable optical performance over at least 500 mating and un-mating cycles. For a technician who reconnects patch cables daily, or a MTP trunk that gets re-routed quarterly, this means years of service without performance drift. Reliable repeatability is the difference between a network that just works and one that constantly needs attention.



Rigid vs. Thin Pin Base - Understanding Reliability

The debate around rigid vs thin pin base mt ferrule connector reliability is real and matters for your application. Our rigid pin base design distributes mechanical stress across a larger contact area, reducing micro-fracture risk during repeated mating. Thin pin bases save material but can flex under load, increasing the chance of pin breakage. Our rigid architecture is the correct choice for mission-critical production environments.



Environmentally Friendly - RoHS Compliant

PPS is a clean, eco-friendly engineering polymer free from hazardous substances. Our manufacturing process adheres to environmental standards, making this mt ferrule safe for global export and compliant with procurement policies that require RoHS-conforming components. Responsible sourcing should never cost you performance.



Perfect Compatibility with Standard MPO Kits

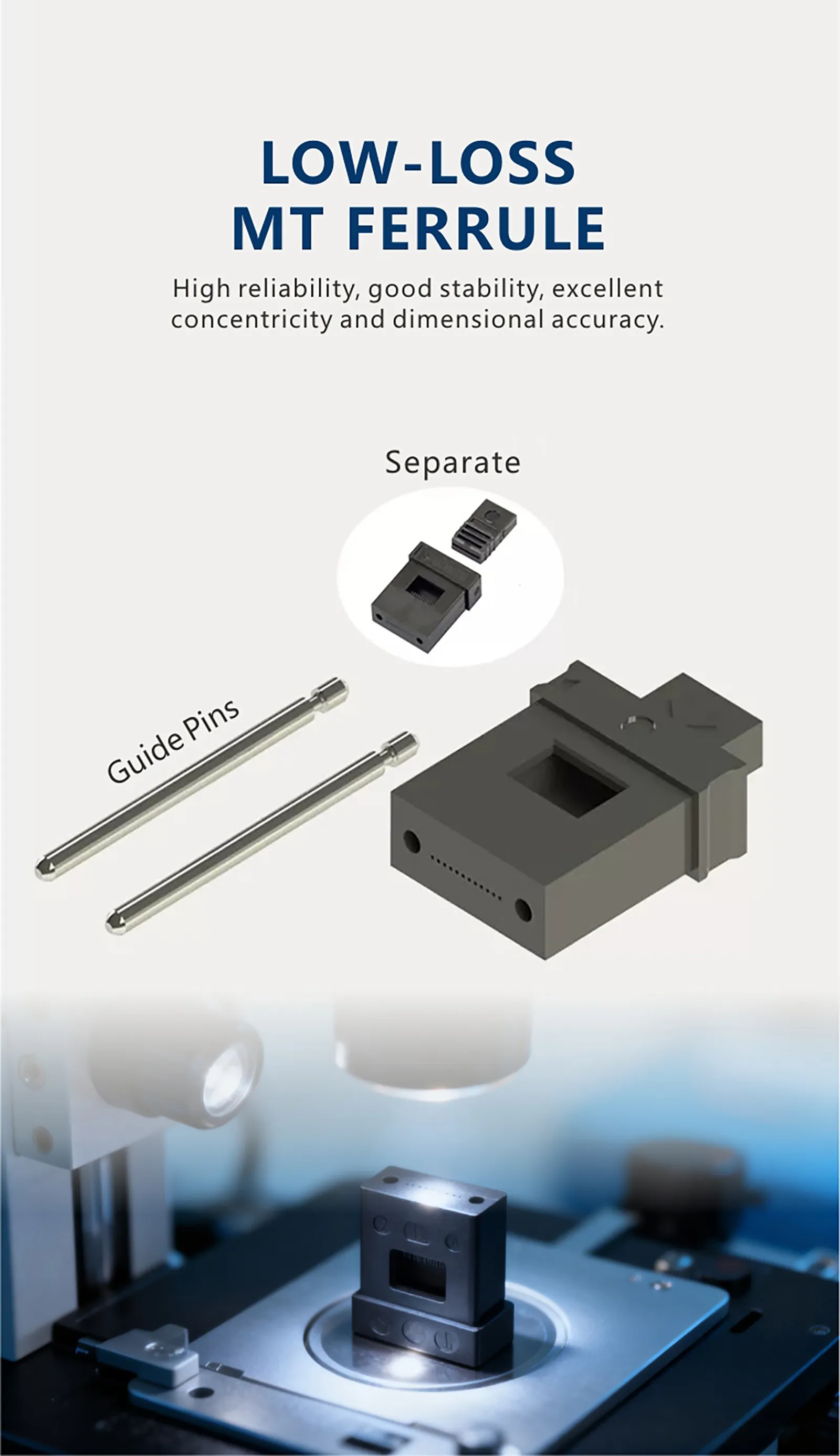

Both male (with guide pins) and female (without guide pins) versions are available, and both integrate seamlessly with all standard MPO/MTP connector kits. The standardized mt ferrule dimensions - 8.0 mm outer width, 6.4 mm ferrule face, 2.75 mm guide pin spacing - guarantee drop-in compatibility with your existing tooling and connector bodies.

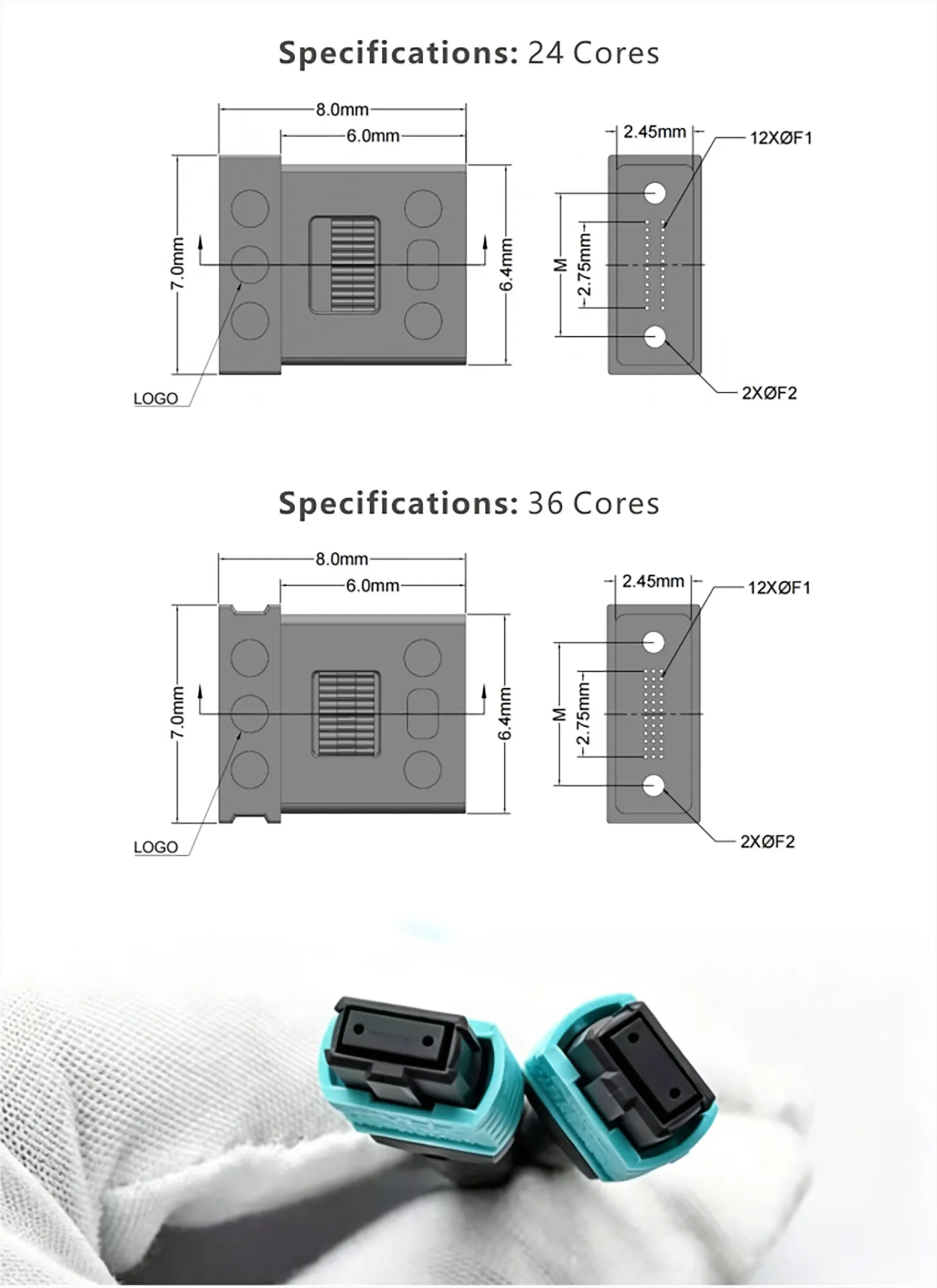

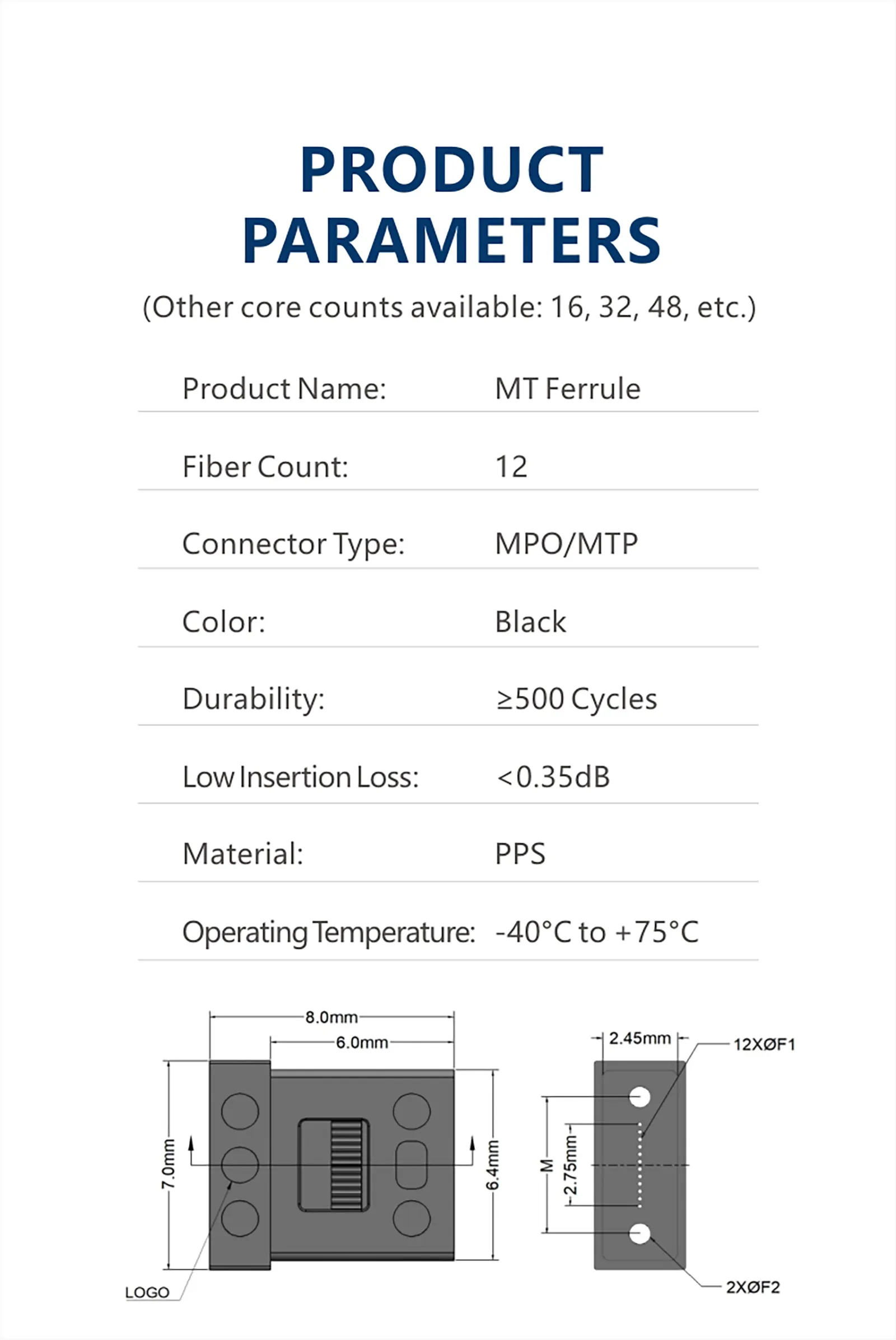

Technical Specifications

Full Technical Data - No Surprises at Assembly

Purchasing decisions at scale require hard numbers. Below are the complete specifications for our standard 12-core MT ferrule connector. Custom core counts (16, 24, 32, 36, 48) share the same body mt ferrule dimensions unless otherwise specified.

Parameter Specification Notes
Product Name MT Ferrule Connector For MPO / MTP Cable Assembly
Material PPS (Polyphenylene Sulfide) Eco-friendly, RoHS compliant
Color Black Custom colors available on request
Standard Fiber Count 12 16, 24, 32, 36, 48 available
Connector Type MPO / MTP Male (with pins) & Female (without pins)
Ferrule Face Width 6.4 mm Physical face dimension
Overall Body Width 8.0 mm Outer width including base
Body Height 7.0 mm -
Guide Pin Hole Diameter 2 × Ø F2 Standard IEC 61754-7 pitch
Guide Pin Spacing (M) 2.75 mm Centre-to-centre
Fiber Hole Diameter 12 × Ø F1 One per fiber, precision-bored
Fiber Hole Row Offset 2.45 mm from top edge -
Insertion Loss < 0.35 dB Per fiber channel
Durability ≥ 500 Mating Cycles Stable optical performance throughout
Operating Temperature −40 °C to +75 °C No dimensional change within range
Surface Treatment Precision-polished mating face Supports PC / APC polish
Pin Style Options Rigid pin base / Thin pin base Rigid recommended for high-cycle use
Certification Compliance IEC 61754-7, RoHS ISO quality management in production

OEM & Custom Capabilities

Your Design. Your Brand. Our Precision Manufacturing.

Most MT ferrule suppliers only sell standard stock. We go further - supporting full OEM and custom-specification orders for buyers who need components built to their exact requirements.

  • Drawing-Based Manufacturing (OEM) - Supply your 2D or 3D drawings, and we produce to your exact tolerances. We have tooled hundreds of custom MT ferrule variants.
  • Sampling Lead Time: 7–15 Days - Receive physical prototypes fast for validation before committing to bulk orders.
  • Core Count Flexibility - Standard 12-core, plus 16, 24, 32, 36, 48, and beyond. Non-standard ribbon configurations also accepted.
  • Custom Laser Marking - Add your brand logo, part number, or position identification directly to the ferrule body surface.
  • Pin Type Selection - Choose between rigid pin base and thin pin base mt ferrule connector designs depending on your target application and mating cycle requirements.
  • High-Volume Capacity - Our injection molding lines support MOQs from as low as 500 pieces up to millions of units annually. Scale with confidence.
  • Private Label Packaging - Custom poly bags, trays, and retail boxes with your branding for resellers and system integrators.

Why Partner with Us for OEM?

Many buyers have lost weeks to suppliers who promised custom mt ferrules and delivered standard parts in different packaging. Our in-house tooling team has dedicated mold design engineers. When you send a drawing, it gets reviewed by a real technical team - not just passed to a general factory floor.

We have served cable assembly manufacturers across North America, Europe, and Southeast Asia. We understand your quality requirements, your documentation needs, and your delivery schedules. Let's build something precise together.

Production & Quality

Factory-Level Confidence Before You Place a Single Order

Trust is built before the first shipment. Here is what our production infrastructure looks like - so you know exactly who is making your mt ferrule fiber optic connector components.

10K+

Square meters of manufacturing floor space dedicated to fiber optic component production

50+

Precision injection molding machines running validated MT ferrule tooling

100%

Optical insertion loss testing on finished ferrule assemblies before shipment

48hr

Standard shipping preparation time for stocked 12-core MT ferrule connector SKUs

End-to-End Quality Control

Our quality process starts at raw material intake - PPS resin is tested for moisture content and viscosity before it enters any mold. Finished ferrules go through dimensional inspection using 3D coordinate measuring machines (CMM), and every assembly batch receives optical insertion loss verification. Only parts that pass leave the building.

We provide full inspection reports (IQC, IPQC, OQC) with every commercial order, and our technical team is available for remote video audits to walk international buyers through the production line and test equipment.

After-sales support includes a 12-month warranty on manufacturing defects. If a batch has a dimensional issue that escapes our QC, we replace it - no arguments, no delays.

Certifications & Compliance

Internationally Certified. Globally Trusted.

When you source an MT ferrule connector for a mission-critical network, certifications are not optional. They are proof that what is on paper is what ends up in your cables. Our manufacturing and products meet the following standards:

ISO 9001 Quality Management IEC 61754-7 MT Ferrule Standard RoHS Compliant REACH Conforming CE Marking Available TIA-604 (FOCIS-5) Compatible

What These Certifications Mean for Your Business

ISO 9001 certification means every production process - from mold maintenance to final packaging - operates inside a documented, auditable quality management system. You get consistent parts, not lucky ones.

IEC 61754-7 is the international standard that defines MT ferrule dimensions, tolerances, and performance requirements. When your supply chain auditors ask for compliance documentation, this is the standard they are looking for - and we have it.

RoHS and REACH compliance means our mt ferrules are free of restricted hazardous substances, opening doors to EU, UK, and North American procurement programs that mandate environmental compliance. No customs holds. No supplier qualification failures. Just clean, certifiable components that move through global supply chains without friction.

Frequently Asked Questions

Questions Engineers Actually Ask About MT Ferrules

What is an MT ferrule connector and what role does it play in an MPO cable?

An MT (Mechanically Transferable) ferrule is the precision plastic body at the end of an MPO/MTP connector that holds and aligns the fiber ribbon. The ferrule contains a row of precision-bored holes - one per fiber - plus two guide pin holes that align the male and female halves during mating. Without a high-quality MT ferrule connector, even a well-terminated fiber ribbon will show elevated insertion loss and unreliable performance.

What are the standard MT ferrule dimensions for a 12-core connector?

For a standard 12-core MT ferrule, the overall body width is 8.0 mm, the ferrule face width is 6.4 mm, and the total body height is 7.0 mm. The guide pin holes (2 × Ø F2) are separated by a 2.75 mm centre-to-centre pitch, and the 12 fiber holes (12 × Ø F1) are positioned 2.45 mm from the top edge. These mt ferrule dimensions conform to IEC 61754-7. Importantly, the 24-core and 36-core variants from our range share the same outer body dimensions - only the number and arrangement of fiber holes change.

What is the difference between a rigid and thin pin base MT ferrule, and which is better for my application?

The pin base refers to the structural section of the MT ferrule that supports the guide pins. A rigid pin base has a thicker, more solid wall around the pin holes, distributing mating forces over a wider area and significantly reducing the risk of pin breakage or micro-cracking over time. A thin pin base uses less material and is slightly lighter, but is more susceptible to stress fractures in high-cycle environments. When evaluating rigid vs thin pin base mt ferrule connector reliability, choose rigid for production cables, test equipment, and infrastructure that will be mated and un-mated frequently. Thin pin base may be acceptable for permanent links with minimal reconnections.

What insertion loss can I expect from this MT ferrule fiber optic connector?

Our MT ferrule fiber optic connector delivers an insertion loss of less than 0.35 dB per channel. This is achieved through sub-micron bore precision, proper fiber hole position accuracy, and a precision-polished mating face. In practice, many finished cable assemblies using our ferrules test well below 0.3 dB. For 400G and 800G applications where the optical power budget is tight, this low insertion loss gives system designers meaningful margin to work with.

Are your MT ferrules compatible with both MTP and MPO connector bodies?

Yes. Our MT ferrule connector is designed to the IEC 61754-7 standard and is dimensionally compatible with both MPO (as defined by IEC) and MTP (US Conec's branded variant). The ferrule body seats correctly inside standard MPO/MTP housings from major connector kit manufacturers. Both male versions (with guide pins installed) and female versions (without pins) are available, and both are tested for compatibility with the full MPO connector assembly.

Can I order MT ferrules in core counts other than 12?

Absolutely. While 12-core is the most common configuration, we offer standard production runs of 16, 24, 32, 36, and 48 cores. The outer body dimensions remain at 8.0 mm × 7.0 mm for most variants - only the fiber hole array changes. For non-standard core counts or custom ribbon geometries, our engineering team can produce tooling to your drawings. Custom sampling typically takes 7 to 15 working days from drawing approval.

How does PPS material contribute to MT ferrule connector reliability?

PPS (Polyphenylene Sulfide) is an engineering-grade thermoplastic with outstanding dimensional stability, chemical resistance, and high-temperature performance. Unlike lower-cost plastics that creep or warp under heat or mechanical stress, PPS holds its form across the full operating range of −40 °C to +75 °C. This is why aerospace and automotive industries use PPS for precision parts, and why it is the correct material choice for an MT ferrule that must maintain sub-micron fiber alignment over years of service.

What documentation do you provide for quality assurance and compliance?

We provide a full Quality Assurance Package with every commercial order, including IQC (incoming quality control) records for raw materials, IPQC (in-process quality control) data, OQC (outgoing quality control) insertion loss test results, a material compliance declaration (RoHS/REACH), and dimensional inspection reports. ISO 9001 certification documents are available upon request. For new supplier qualification processes, we also support remote video audits of our production lines and test equipment.

What is the minimum order quantity, and how fast can you ship?

For standard 12-core MT ferrule connectors from stocked inventory, MOQ starts at 100 pieces with shipping preparation within 48 hours. For custom core counts or OEM specifications, MOQ is typically 500 pieces with a 7–15 day sample lead time and 3–4 week production lead time for bulk orders. We ship globally via DHL, FedEx, and UPS, with full customs documentation included.
