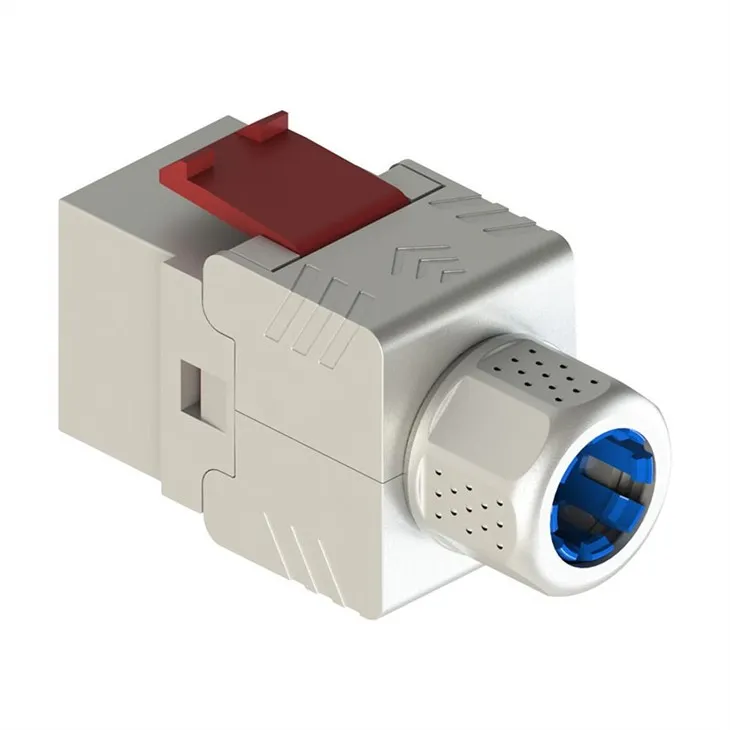

CAT8 RJ45 Shielded Keystone Jack
Trusted connections for your network
COBTEL CAT8 RJ45 Shielded Keystone Jack supports Ethernet at rates up to 40 Gbps (40GBASE-T) over distances up to 30 meters, suitable for connecting server and switch at Data Center or industry application as well as at your office.
It is designed under extremely high standard for high durability,fast and stable and professional network transmission. This CAT8 RJ45 Shielded Keystone Jack adapts to shielded Ethernet cables from 22 to 24 AWG.
Description
Specification
Product Name | CAT8 RJ45 Shielded Keystone Jack |
Application | Ethernet connection |
Connector Type | RJ45 |
Main Material | Zinc alloy, PC, phosphor bronze |
Speed Support | Max 40Gpbs up to 30 meter |
Color | Silver |
Working Temperature | -10°C to +60°C |
Cobtel Keystone Jack Advantages:
1. Used for 22-26AWG cable. Can be used repeatedly many times. No need to use any crimping tools
2. The highest performance in the industry. Pass the component test(much harder to pass than Fluke Test). Pass the standard test of ISO/IEC (EU standards) and TIA/EIA(US Standards).

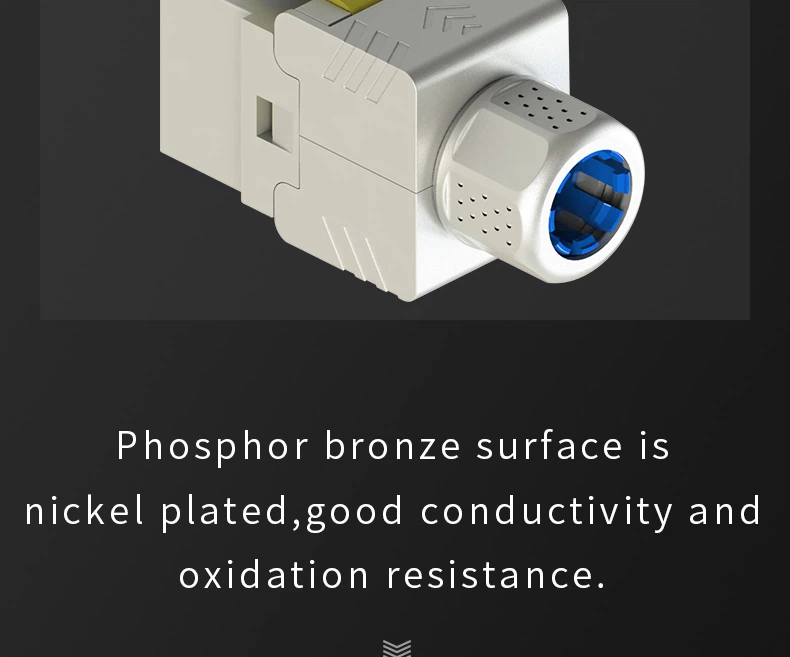

3. 50U gold-plated pinout. Premium phosphor pinout, being nickel-plated before the gold-plating process. Excellent conductivity and stable data transmission

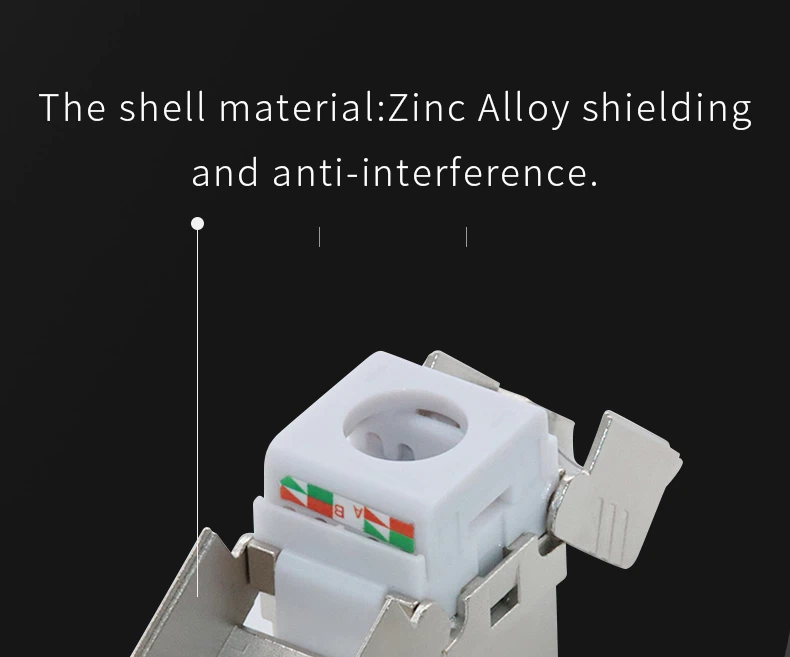

4. Meta Shell protects the jack from external interference: Zinc alloy shielding shell protects inner wires from crosstalk and interference.

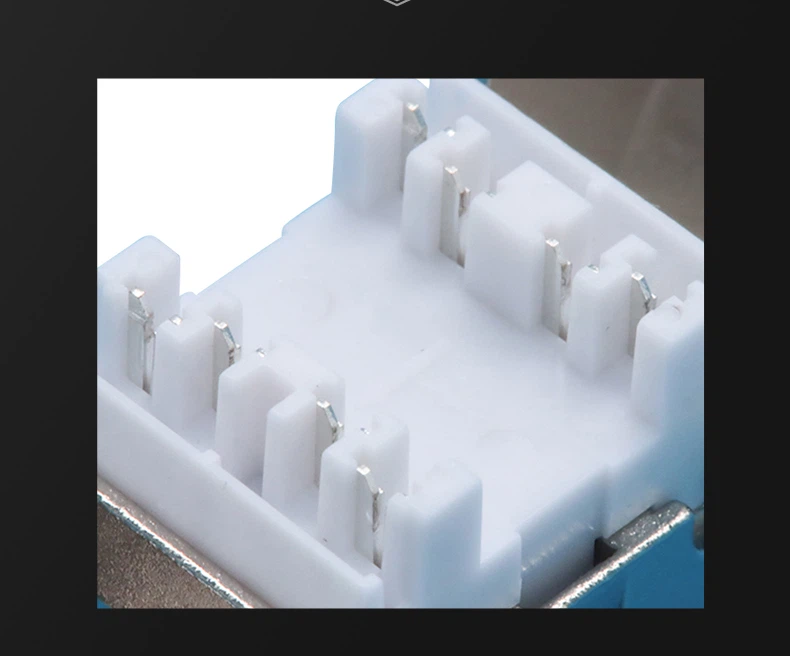

5. Copper steel alloy clamping terminals: Pierce the out cover easily, ensuring the stable contact of the ethernet cable.
Features
●Designed to support Ethernet at rates up to 40 Gbps (40GBASE-T) over distances up to 30 meters, suitable for connecting server and switch at Data Center;
●Extreme performance design for Edge Data Center;
●PCB compensation design for further CAT8 component requirements;
●Easy field termination, T568A & B wiring;
●UL 1863 verified;

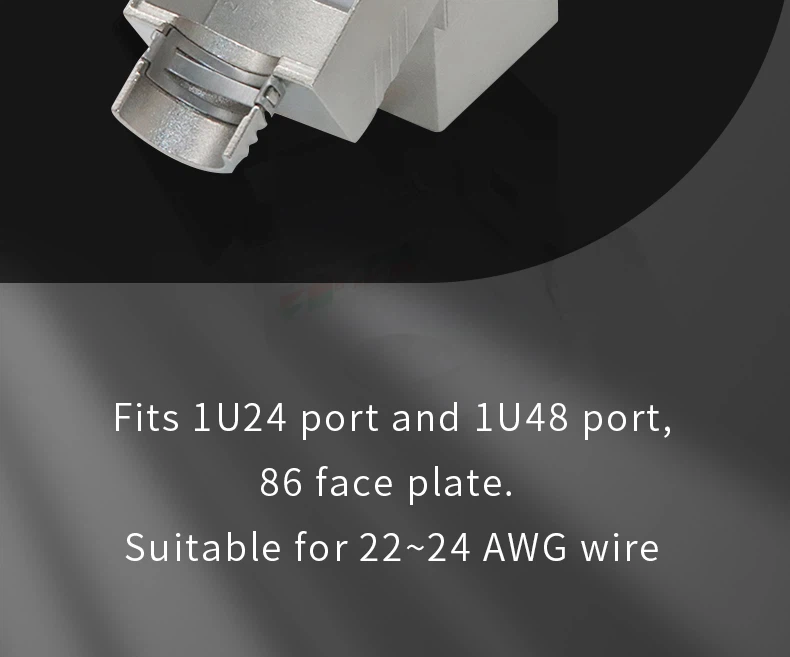

●Compact and high-density design, fits 1U 24 Port and 1U 48 Port

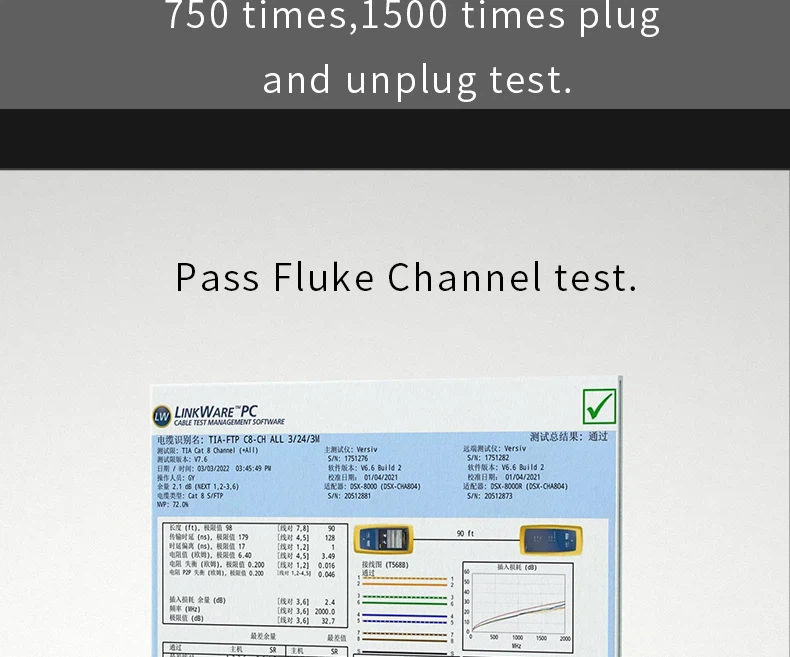

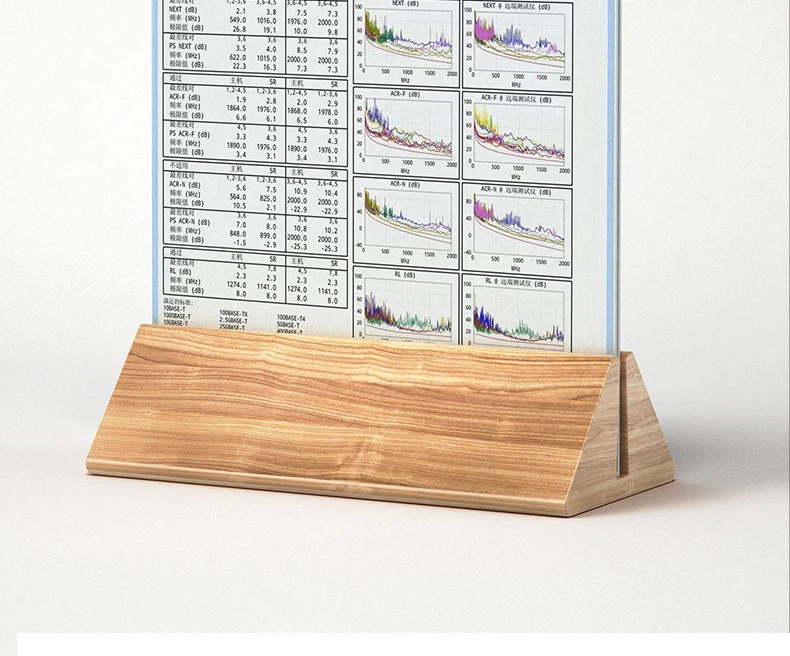

Passed fluke channel test;
●Pass PoE 60W and 100 watts test;
●IEC 60603-7, ANSI/TIA-5682-D;
●Wire Compatibility: 22 ~ 24 AWG.
