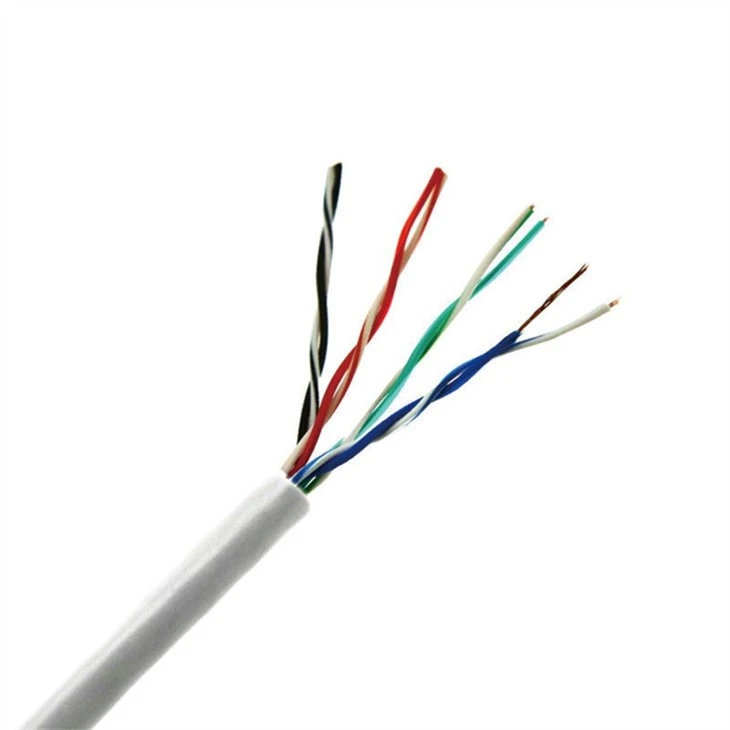

Twisted Pair 24AWG Lan Cable
COBTEL Twisted Pair 24AWG Lan Cable is High Performance patch cord, this patch cord is with 24 AWG copper wire, provides stable connection for LAN network components
Description
Specification
Product Type | Twisted Pair 24AWG Lan Cable |
Conductor material | Stranded bare copper |

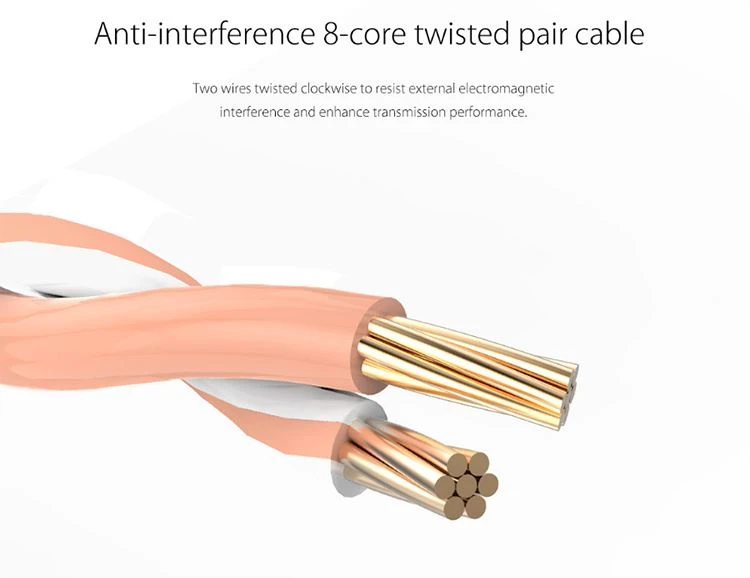

Number of conductor | 8 (4pairs of twisted wire) |
Inner wire | Stranded wire - 24AWG |
Color of jacket | White, black, blue, yellow, etc. Can be customized |
Jacket material | LSZH |
Plug | RJ45 8P8C connector |
Plug housing material | 100% imported Japanese PC 94V-2 |
Contacts of the plug | Brass, 3prongs, gold plating |
Packaging detail | 1pcs/PE bag, also can be customized |
Standard test | Fluke Channel test / Patch cord test |
Transmission | It supports data transmission to 250MHz |
Length | Customized |
MOQ | 5000 Meters |
Features:
●U/UTP CAT6 Network cable
●24AWG stranded, 100% pure BC conductors
●250MHz bandwidth
●50U Gold-plated contacts to ensure best connection
●LSZH cable sheath
●Molding boots to protect RJ45 connectors
ABOUT COBTEL
●Cobtel takes research and development very seriously, so far, we have got more than 100 patented certificates, and also got certified for UL, CE, ISO 9001, etc.
●We always put quality as the first consideration. That’s why we put big investment into precise molding. Except for the electroplate, we make every process within our own factory, from molding to packing.
