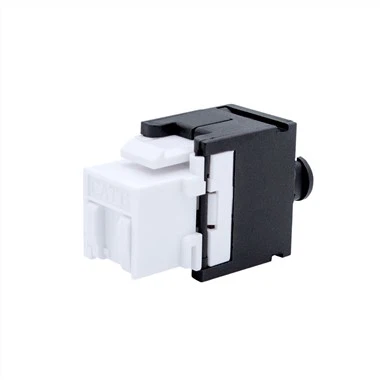

CAT6A Utp RJ45 Jack Module Network Socket Dust-proof Door
RJ45 UTP Cat.5e keystone jack, 180-degree Toolless for data center, working area, managing room, equipment room, etc. Structured cabling transmitting data, voice, and video.Applied for Cat.6 and E Classes. Suitable for working area, central room, managing room, equipment room, and subsystem applications
Send Inquiry
Add To Inquiry
Description
|
Electrical
|
Current Rating: 1.5 Amps
Insulation Resistance: ≥ 500 MΩ
Contact Resistance: ≤ 20 mΩ DC Resistance: ≤ 0.3Ω DC/AC Volt Endurance: DC 1000V /AC 750V 1min |
|
Mechanical
|
Mating Cycles: 1500 cycles minimum
IDC Mating Cycles: 400 cycles minimum
Operating Temperature: -10~60℃ Operating Humidity: 10%~90%RH Storage Temperature: -40~68℃ |
|
Physical
|
Plastic Parts: High-quality engineering plastic
PCB: FR-4, 1.2mm thickness Jack Wire: 0.35 mm phosphor bronze gold over nickel plating IDC Conductor: 0.5 mm phosphor bronze, tin-plating Contact Compatibility: Accommodate 23 to 26 AWG solid TIA Cat.6A Perm.Link Test: Worst Pair NEXT Headroom ≥ 5.0 dB |
|
Standards Verification
|
ANSI/TIA-568.2-D;
ISO/IEC TR 11801-9901-2014;
YD/T 926.3-2009; ISO/IEC 60603-7-41; RoHS directive 2002/95/EC compliant
|
