RD11F 100Base FX to TX Industrial Ethernet Switch

◎ Product Description

The RD11F series industrial Ethernet switch is a 1-port 100Mbps Ethernet port and 1-port 100Mbps FX fiber optic port switch. It supports 1 10Base-T/100Base-TX Ethernet port and 1 100Base-X fiber optic port. The product meets FCC, CE, and ROHS standards. The RD11F series switch has a working temperature range of -40℃ to 85℃ and has strong durability to adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection level shell, and LED indicator lights make the RD11F an easy-to-use industrial-grade device, providing users with a reliable and convenient solution for Ethernet device networking.

Product Features:

● Uses high-quality photoelectric integrated modules to provide good optical and electrical characteristics

● Ensures reliable data transmission and long service life

● Supports full-duplex or half-duplex mode and has automatic negotiation capability

● Ethernet port supports full-automatic cross identification

● Built-in storage and forwarding mechanism, supports multiple protocols

● Complies with industrial operation standards and averages trouble-free operation for over 300,000 hours

● Operating power supply: DC 12-52V with reverse connection protection

● Uses SC/FC/ST/SFP fiber optic interfaces

● Lightning surge protection (power supply): 5000A (8/20μs)

◎ Technical Specifications

Product Name:

100M 1 Fiber 1 Copper Industrial Ethernet Switch

Product Model:

RD11F Series

Product Description:

1-port 100Mbps Ethernet port and 1-port 100Mbps fiber optic port industrial Ethernet switch

Port Description:

1 RJ45 port + 1 fiber optic interface

RJ45 port:

10/100BaseT(X) auto-detection, full/half duplex MDI/MDI-X adaptive

Fiber optic port:

100BaseFX port (SC/FC/ST/SFP optional)

Network Protocol:

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

Operating Environment:

Operating Temperature: -40°C to 85°C (-40°F to 185°F)

Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Relative Humidity: 5% to 95% (non-condensing)

Industry Standards:

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC (EN) 61000-4-2 (ESD): ±8kV contact discharge, ±12kV air discharge

IEC (EN) 61000-4-3 (RS): 10V/m (80-1000MHz)

IEC (EN) 61000-4-4 (EFT): Ethernet: ±4kV CM // ±2kV DM;

IEC (EN) 61000-4-5 (Surge): Ethernet: ±4kV CM // ±2kV DM;

IEC (EN) 61000-4-6 (RF Conducted): 3V (10kHz-150kHz), 10V (150kHz-80MHz)

IEC (EN) 61000-4-16 (Common Mode Conducted): 30V cont. 300V, 1s

IEC (EN) 61000-4-8 Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Switching Properties:

Transmission Mode: Store-and-forward

MAC Address: 2K

Cache: 1Mbit,

Backplane Bandwidth: 1.6G

Switching Delay: <10μs

Power Consumption: <3W

Power Supply:

Input Voltage: DC12-52V (dual power redundant backup)

Access Terminal: Phoenix Terminal

Supports dual power redundancy

Supports built-in overcurrent protection of 4.0A

Supports reverse connection protection

Mechanical Characteristics:

Enclosure: IP40 protection level, metal enclosure

Installation: DIN rail, wall mount

Cooling Method: Natural cooling, fanless

Weight: 0.36Kg

Size: 118 x 85.7 x 33.5mm (length x width x height)

LED Indicators:

Power Indicator: PWR

Interface Indicator: Ethernet, Fiber Optic (Link/ACT)

Protection Level: IP40

Certification:

Certified: CE, FCC, RoHS, ISO9001:2008

MIIT Network Access License

Public Security Bureau Inspection Report

Mean Time Between Failures: 300,000 hours

Warranty: 5 years

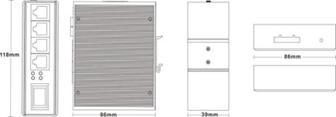

Dimensions:

Production function diagram
