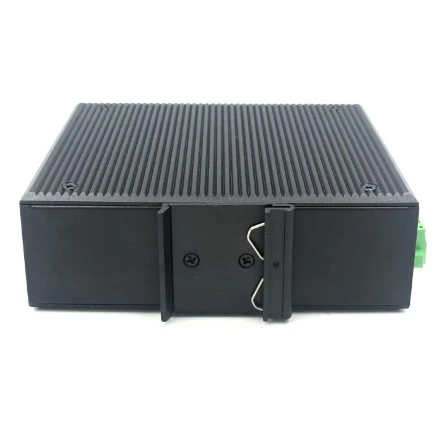

8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
Layer 2 8 Port Gigabit PoE+4G SFP Uplink L2 Managed Industrial PoE Switch IP40
ZX48GSP-M-SFP an hardened 12-port Industrial PoE Switch, provides non-blocking wire-speed performance in a harsh industrial environment. It also provides an 8-port 10/100BASE-TX RJ45 PoE +4G SFP delivered in an IP40 rugged, strong case with a redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management, and wireless service in climatically demanding environments with a wide temperature range from -40℃ to 80℃.
Description
8-port 10//100/1000BASE-TX+4G SFP Managed Industrial PoE Switch
The ZX48GSP-M-SFP is packaged in a compact IP40 case that allows either DIN rail or panel
Specifications:
|
Model No.
|
ZX48GSP-M-SFP
|
|
10/100/1000Base-TX Port
|
8-Port RJ-45 auto-MDI / MDI-X
|
|
PoE Specification
|
PoE Standard: IEEE802.3af/ IEEE802.3at
|
|
PoE ports:1-8 port support PoE
|
|
|
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
|
|
|
PoE port Auto detects AF/AT devices
|
|
|
Output Voltage: DC48V
|
|
|
Power Pin Assignment:1/2+;3/6-
|
|
|
Power Type: End-span( Mid-span optional)
|
|
|
1000Base-FX Port
|
4G SFP Slot
|
|
Performance Specification
|
Bandwidth: 56Gbps
Packet Buffer Memory: 12Mbit Packet Forwarding Rate: 41.6Mpps MAC Address Table: 8K
|
|
Installation
|
DIN rail
|
|
Maximum Frame Size
|
10240bytes packet size
|
|
Flow Control
|
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
|
|
Enclosure
|
IP40 slim-type metal case
|
|
LED Indicator
|
Power: Red
Fiber: Link 2(Green)
Ethernet: Yellow
|
|
Power Input
|
48 to 57V DC redundant power
|
|
Power Consumption
|
< 10W
|
|
Protection
|
ESD (Ethernet): 6KV DC
Surge (Power): 6KV DC
|
|
Network Protocols
|
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;
|
|
Network cables
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
|
|
Industry Standard
|
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
|
|
Certification
|
CE FCC Rohs compliance
|
|
MTBF
|
>300,000hours
|
|
Dimensions (W x D x H)
|
143×125×48mm
|
|
Weight
|
Product Weight: 1.25KG
Packing Weight: 1.4KG
|
|
Working Environment
|
Working temperature: -40～80℃
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)
|
|
Warranty
|
1-year replacement with a new item; 3-year for main parts.
|
