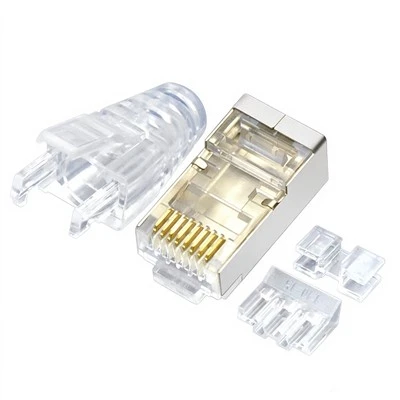

Cat.6A STP Modular Plug
As the biggest moddular plug manufacturer worldwide, Cobtel provides various solutions of data and voice Transmission.All of your cables can find the right modular plug here. Our Cat.6A STP modular plugs has one loading bar and one x-seperator and it has 3 prongs which is suitable for both stranded and solid wire cable.
Description
Specifications:
| Product Name: | Cat.6A STP modular plug with one loading bar and one X-separa |
Brand Name: | COBTEL, CNCOB, OEM |
Interface | RJ45 |
Positions/Load Contacts | 8P8C |
Cable Type | Solid and Stranded cable |
Color | Clear |
Conductor Insulation Diameter | Ø1.1mm Ø1.0mm |
Material Specification | |
Housing | 94V-0 or 94V-2 |
Contacts | 3prongs Brass or Phosphor copper |
Material Type | Polycarbonate |
Gold plating | FU, 3U", 6U", 15U", 30U", 50U" |
Plug Shield Plating Material | Nickel |
Environmental Specifications | |
Maximum Operating Temperature | 85°C |
Minimum Operating Temperature | -40°C |
Compliance/Certifications | |
RoHS | Compliant |
REACH | Compliant |
INC | Compliant |
CE | Compliant |
ISO 9001:2015 | Compliant |
UL | Compliant |
Packaging Details
Normally 100pcs/ bag,1000pc/bag, 10000pcs/carton, carton size: 43.5*34.5*29.0 CM or can be customized.
FAQ
1. Is COBTEL ISO registered?
Yes. COBTEL is ISO9001:2015 registered.
2. How long does it take to ship my order once placed?
Most orders are shipped within 7~10 days after receipt of the order. For larger quantities, we can ship partials almost immediately, if necessary, and work with you on a delivery schedule for the balance.
3. Do you accept customized specifications and packaging?
Yes, we accept. Feel free to let us know your detail requires, we have a strong engineering team to help realize your idea.
Click and browse more Cat6a Modular Plug
To see our factory's production capacity and domestic and international certification. Click About Us
Hot Tags: Cat.6A STP Modular Plug, suppliers, manufacturers, factory, wholesale, price, bulk, cheap,rj45 connector,rj45 plug
