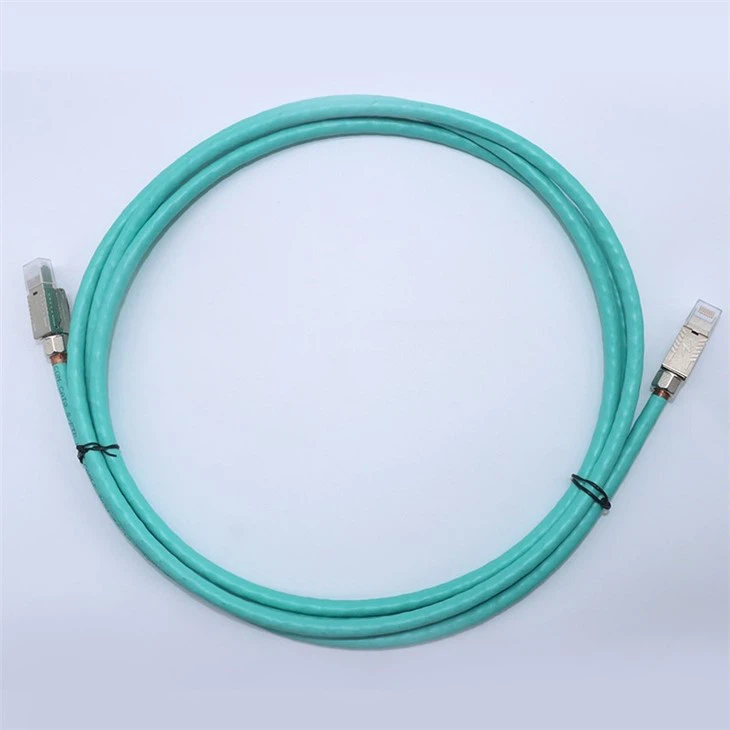

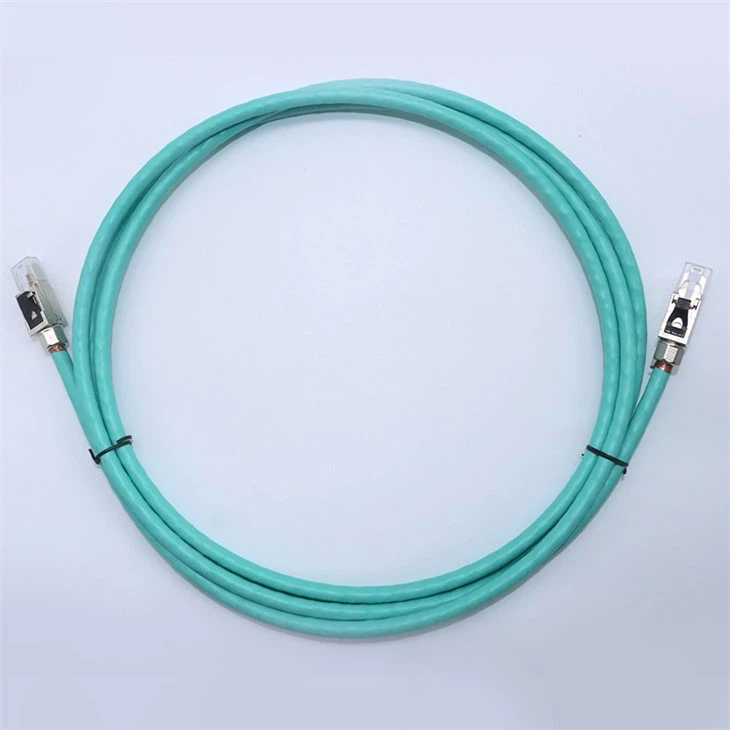

Cat 8 Netowrk Lan Cable Patch Cord
Cobtel Patch Cord Cat 8 is the latest generation of double-shielded SFTP network jumper. It has two wire [aires, supports 2000Mhz broadband and the transmission up to 40Gb/s, but its maximum transmission distance is only 30M. Therefore now it is generally used for the connection of servers,...
Description
Cobtel Patch Cord Cat 8 is the latest generation of double-shielded SFTP network cable. It has two wire pairs, supports 2000Mhz broadband, and transmits up to 40Gb/s, but its maximum transmission distance is only 30M. Therefore now it is generally used for the connection of servers, switches, distribution frames, and other equipment over short distances.
Specification
Product Name | Patch Cord Cat 8 |
Shielding Type | Shielded |

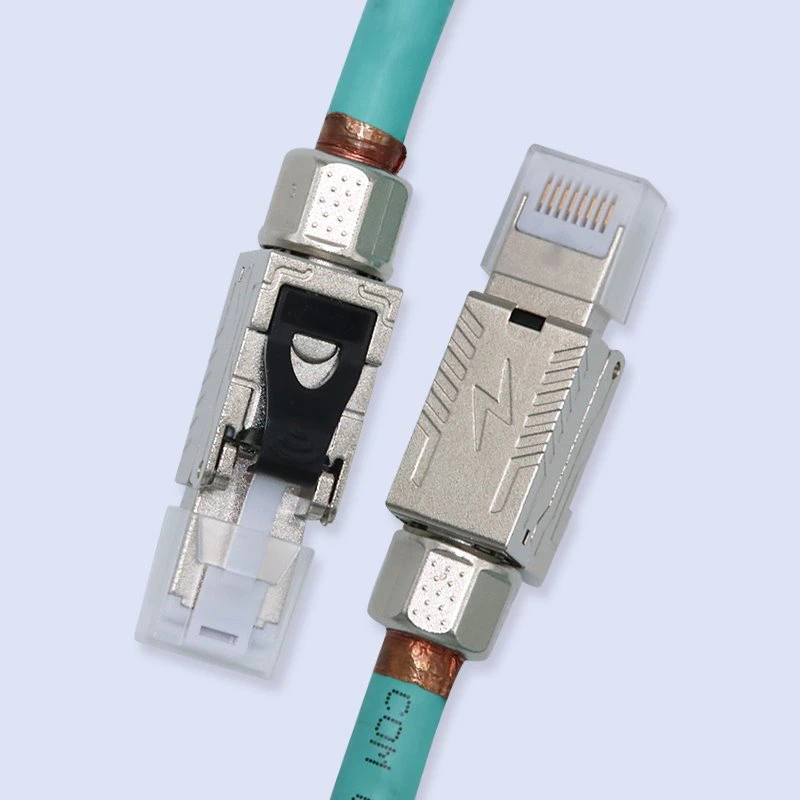

Connector | RJ45 Plug |
Connector Type | Tool-free |
Reference Standard | ISO/IEC 11801, ANSI/TIA-568-C.2 |
Conductor Type | Stranded |
Conductor Material | Pure Bare Copper |
Wire Gauge (AWG) | 24AWG |
Pairs Qty | 4 Twisted Pairs |
Jacket Type | PVC |
Compliance | RoHS/REACH compliant, UL, IEC |
Features:
Complying with the IEE802.3bq 25G/40GBASE-T standard, it specifies the minimum transmission rate of Cat8 network cables and can support 25Gbps and 40Gbps network wiring.
Complying with ANSI/TIA-568-C.2-1 standard, it specifies the channel and permanent link of Cat8 network cable and includes the limitation of resistance unbalanced TCL and ELTCTL.
Complying with the ANSI/TIA-1152-A standard, it specifies the measurement and accuracy requirements of the CAT8 category eight network cable field tester.
Complying with the ISO-IEC-11801 standard, it specifies the channel and permanent link of the I/II CAT8 eight-category network cable.
CAT8 network cable is the same as Cat7 network cable, it is a shielded twisted pair, which can be used in data centers, high-speed and bandwidth-intensive places, although the transmission distance of CAT8 network cable is not as far as 7/7 super network cable, but its speed and frequency are far more than CAT7 super network cables. The difference between CAT8 network cable and CAT5E/ CAT6/CAT6A network cable is mainly reflected in the speed, frequency, transmission distance, and application.
The difference between CAT7 vs Cat8 Ethernect cables.
Category | Cat 7 | Cat 8 |
Frequency | 600MHz | 2,000MHz |
Max Speed | 40 Gbps at 10 meters | 25 Gbps at 100 meters and 40 Gbps at 30 meters |
Crosstalk | Twisted cables help eliminate crosstalk | Similar to Cat 7 |
Lifespan | 15 years | 15 years |
TIA/EIA Recognition | No | Yes |
Power over Ethernet | No | Yes |
Click and browse more Cat 8 Cable
To see our factory's production capacity and domestic and international certification. Click About Us
