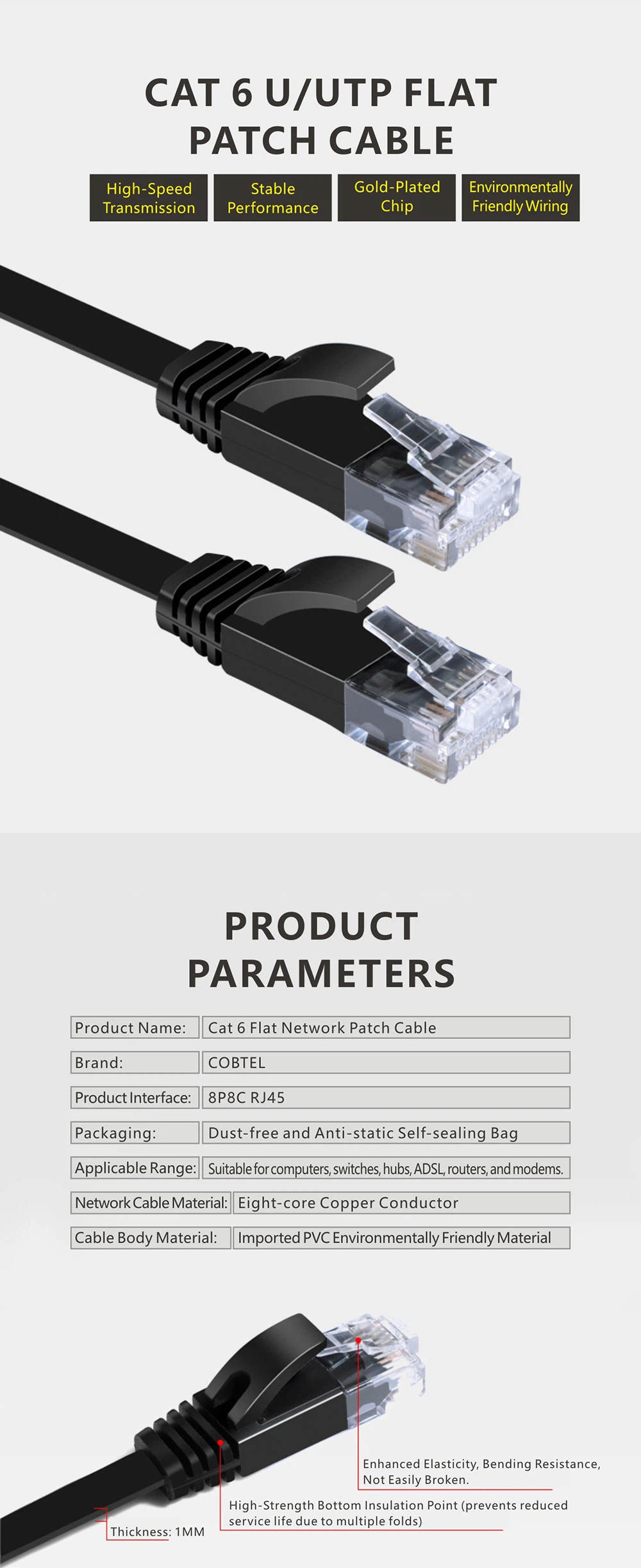

Cat6 Gigabit Flat Ethernet Cable Assembly
Product Name: Flat Ethernet Cable, 8-core Ethernet Cable, Finished Ethernet Cable, RJ45 Network Cable, Flat Network Cable, Cat6 Flat Ethernet Cable, Cat6 Flat Cable Cat6 Flat Cable (UTP - Unshielded Twisted Pair) is composed of multiple pairs of twisted-pair wires within a plastic outer sheath....
Send Inquiry
Add To Inquiry
Description
Product Name: Flat Ethernet Cable, 8-core Ethernet Cable, Finished Ethernet Cable, RJ45 Network Cable, Flat Network Cable, Cat6 Flat Ethernet Cable, Cat6 Flat Cable
Cat6 Flat Cable (UTP - Unshielded Twisted Pair) is composed of multiple pairs of twisted-pair wires within a plastic outer sheath.
Conductor Size: 28AWG (70.12mm) / 30AWG (70.10mm) / 32AWG (7*0.08mm), 4 pairs, 8 cores twisted-pair wires.
Conductor Material: Oxygen-Free Copper (BC/BS), Multi-stranded.

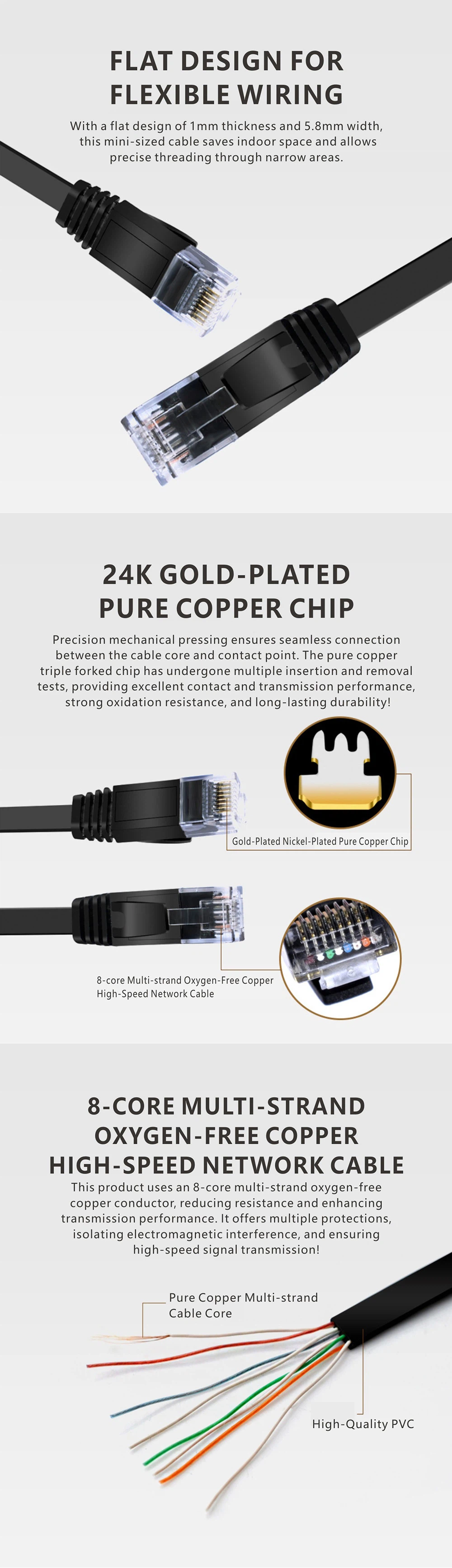

Shape: Flat cable, OD: 1.5*6.0±0.2mm.
Outer Jacket: Conventional environmentally friendly flame-retardant PVC, Low Smoke Zero Halogen (LSZH) / VW-1 / CM / IEC60332-1-2, GB/T18380.12-2008.
Craftsmanship: Multi-stranded design (7*8 cores), flexible, slim and easy to carry, suitable for wiring in door seams, corners, and under carpets.
Connector: 24K gold-plated crystal head with 3 forks, machine-formed at the connection point with the network cable.
Plug and Unplug Cycles: ≥ 5000 times.
Product Performance:
Cat6 Ethernet Cable Transmission Speed and Bandwidth: The quality of twisted-pair wires is one of the key factors determining the local area network's bandwidth. Cat6 Ethernet Cable supports Gigabit Ethernet with a bandwidth of 250MHz.
Compatibility: Compatible with Cat5e, Cat5, Cat3, Cat4 Ethernet Cables.
Quality Inspection Requirement: Passed Fluke Channel Testing.
Product Specifications: Available in lengths of 0.5/1/1.5/2/3/5/8/10/15/20/25/30 meters.
Compliance Standards: ANSI/TIA 568 B.2, ISO/IEC 11801-1:2008, YD/T 926.3-2009.
Operating Temperature: -20°C to 60°C.
Product Certification: Certified by the Information Industry Data Communication Product Quality Supervision and Inspection Center, ROHS/CE/REACH.
Quality Assurance: 5-year warranty.

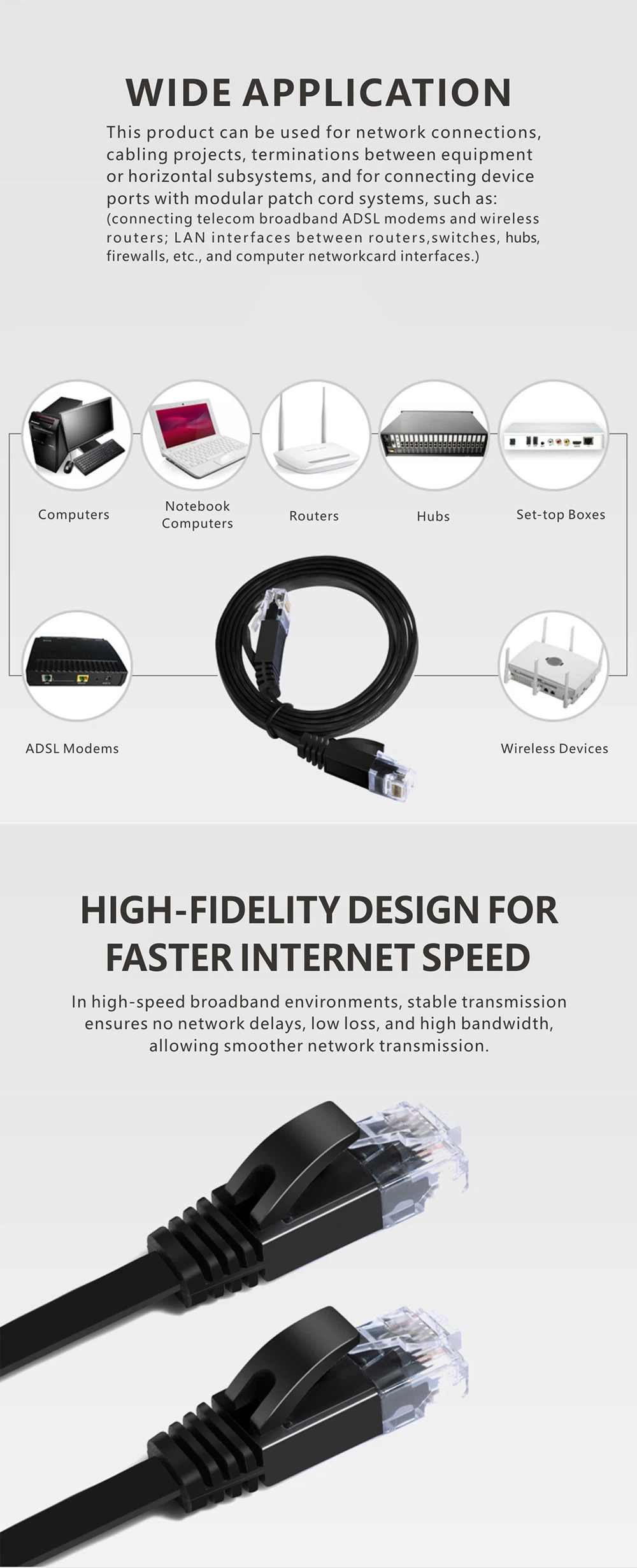

Application Range: Routers, switches, personal computers, structured cabling, home cabling, and more.
Hot Tags: cat6 gigabit flat ethernet cable assembly, suppliers, manufacturers, factory, wholesale, price, pricelist, quotation, bulk, cheap
