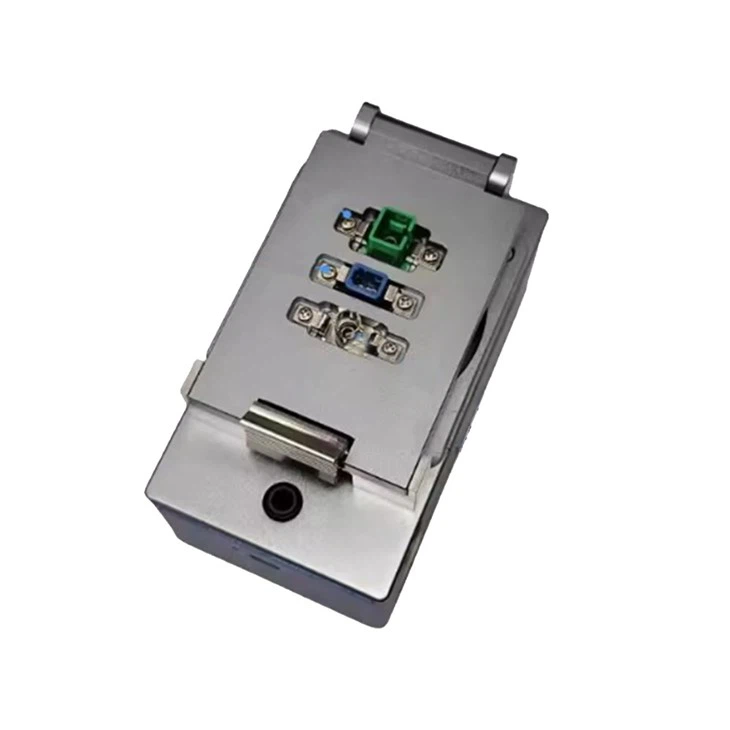

Upgrade your fiber head endface polishing with this compact fiber polisher/fiber polishing machine.Featuring advanced precision, universal compatibility, and user-friendly operation for fast results.
Precision and efficiency are guaranteed with the Fiber Polisher/Fiber Polishing Machine, a vital tool for telecommunications and fiber networking applications. Built with an aerospace-grade aluminum shell, this lightweight and compact device ensures durability, portability, and exceptional performance. Compatible with a wide range of fiber optic connectors, this Fiber Polisher provides high-precision mechanical design and universal gripper fixtures to simplify operations while meeting global industry standards. Perfect for professionals working in data centers, telecommunications, and electrical cabinets, it delivers consistent, smooth, and polished endfaces to enhance fiber quality and reduce signal loss. Whether you're managing installations or performing maintenance, this Fiber Polishing Machine offers the solution you need for reliable connectivity.
Content Sections

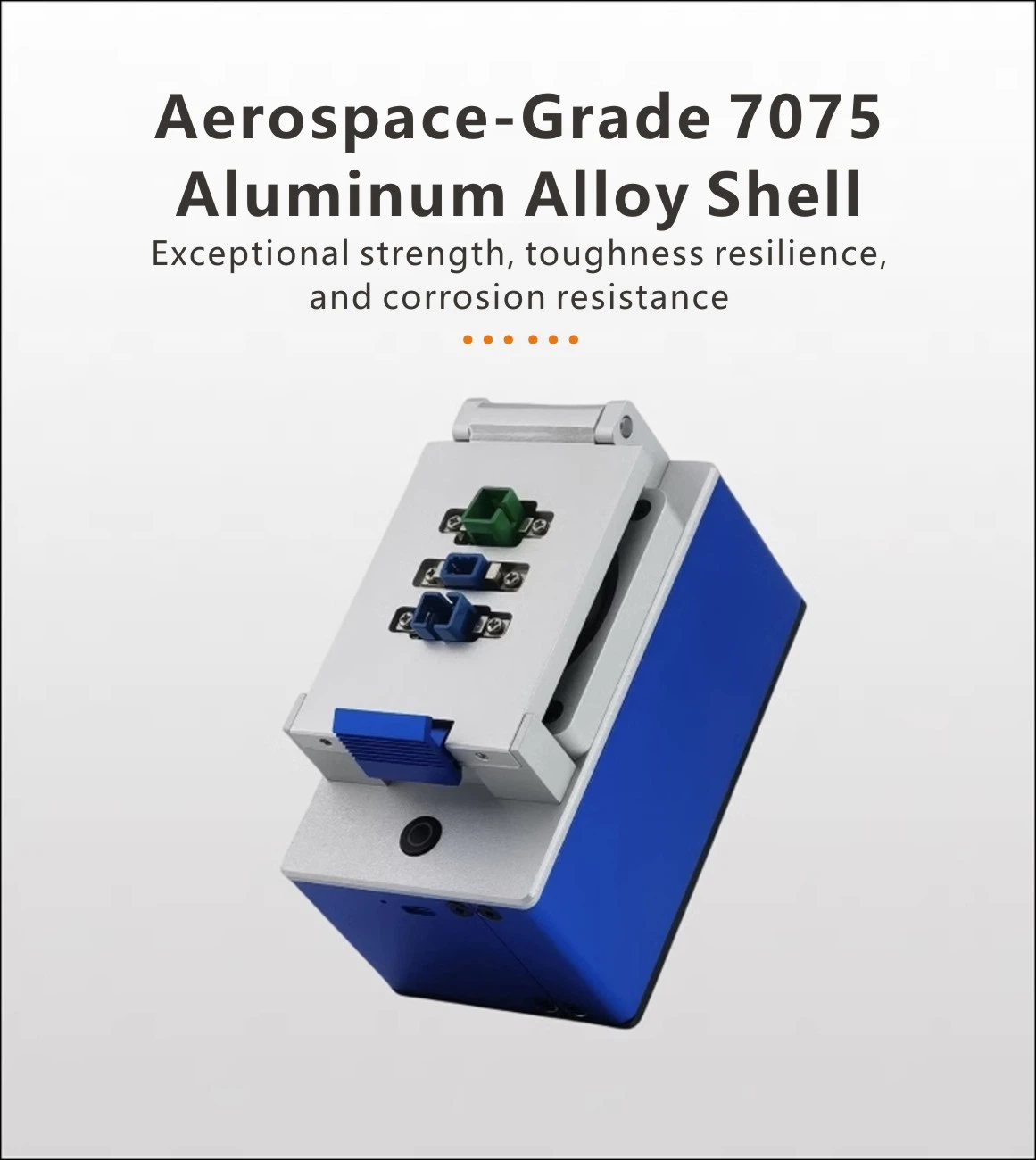

1. Superior Design with Aerospace-Grade Aluminum Body
Crafted with 7075 aerospace-grade aluminum, the Fiber Polisher combines sleek design with uncompromised durability. The sturdy body ensures resistance to wear and tear, while its lightweight nature makes it easy to carry and use in any workspace. This robust build ensures long-lasting use, even under challenging conditions.
2. High-Precision Mechanical Design for Consistent Results
The machine's high-precision mechanical design guarantees smooth and precise polishing of fiber endfaces. This ensures lower connectivity loss and optimal performance for critical data transmissions in fiber optic networks. The polished surfaces adhere to global standards and improve signal reliability.

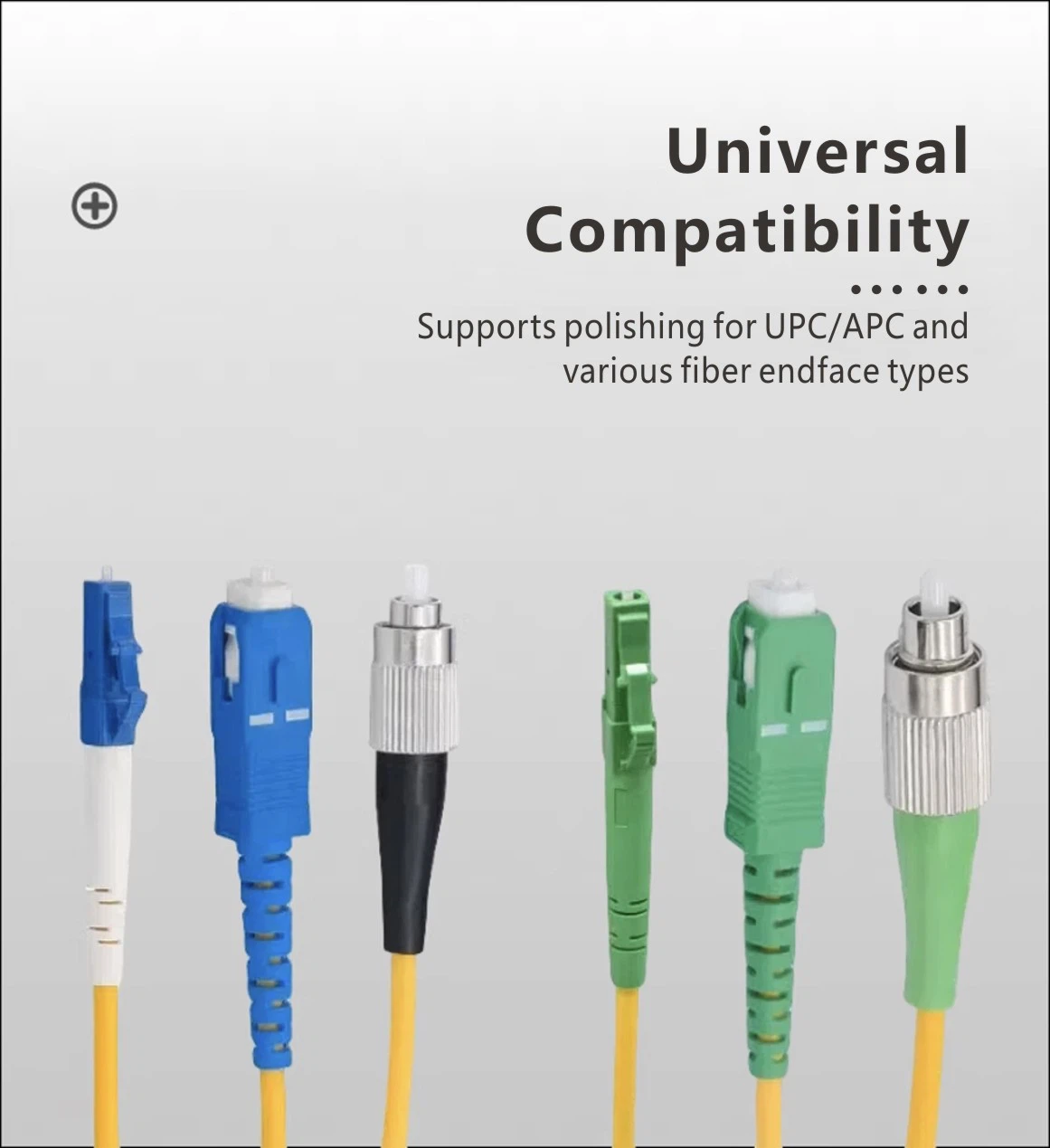

Compatible with SC, FC, LC, and E2000 connectors, this polisher covers a diverse range of applications. This universal compatibility eliminates limitations, allowing technicians to efficiently handle multiple types of fiber connections without the need for additional machines.

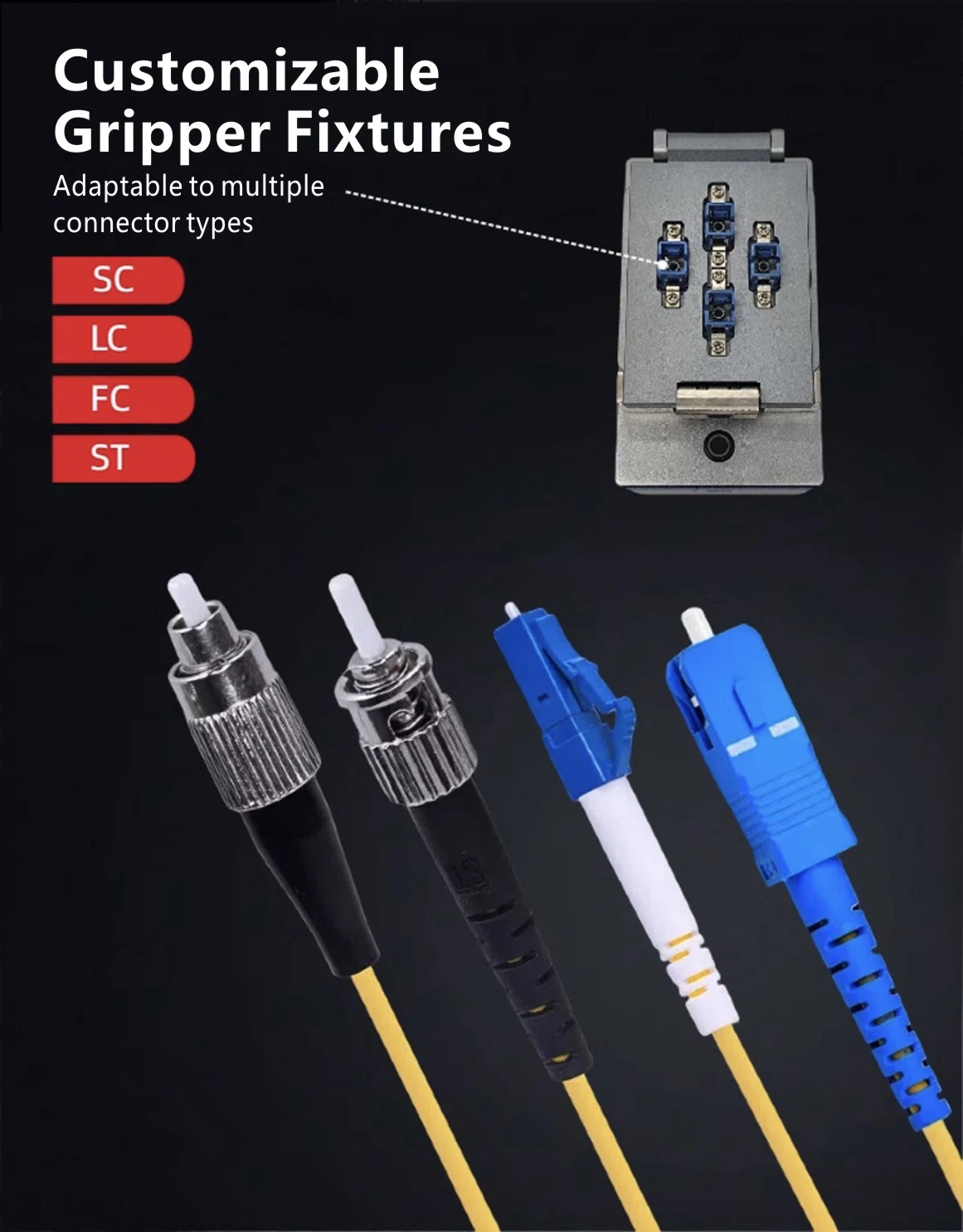

4. Customizable Gripper Fixtures for Enhanced Versatility
The polisher features customizable gripper fixtures to securely hold various connector types during polishing. This innovation enhances productivity and reduces errors by accommodating different connector sizes and setups, adding flexibility to your operations.

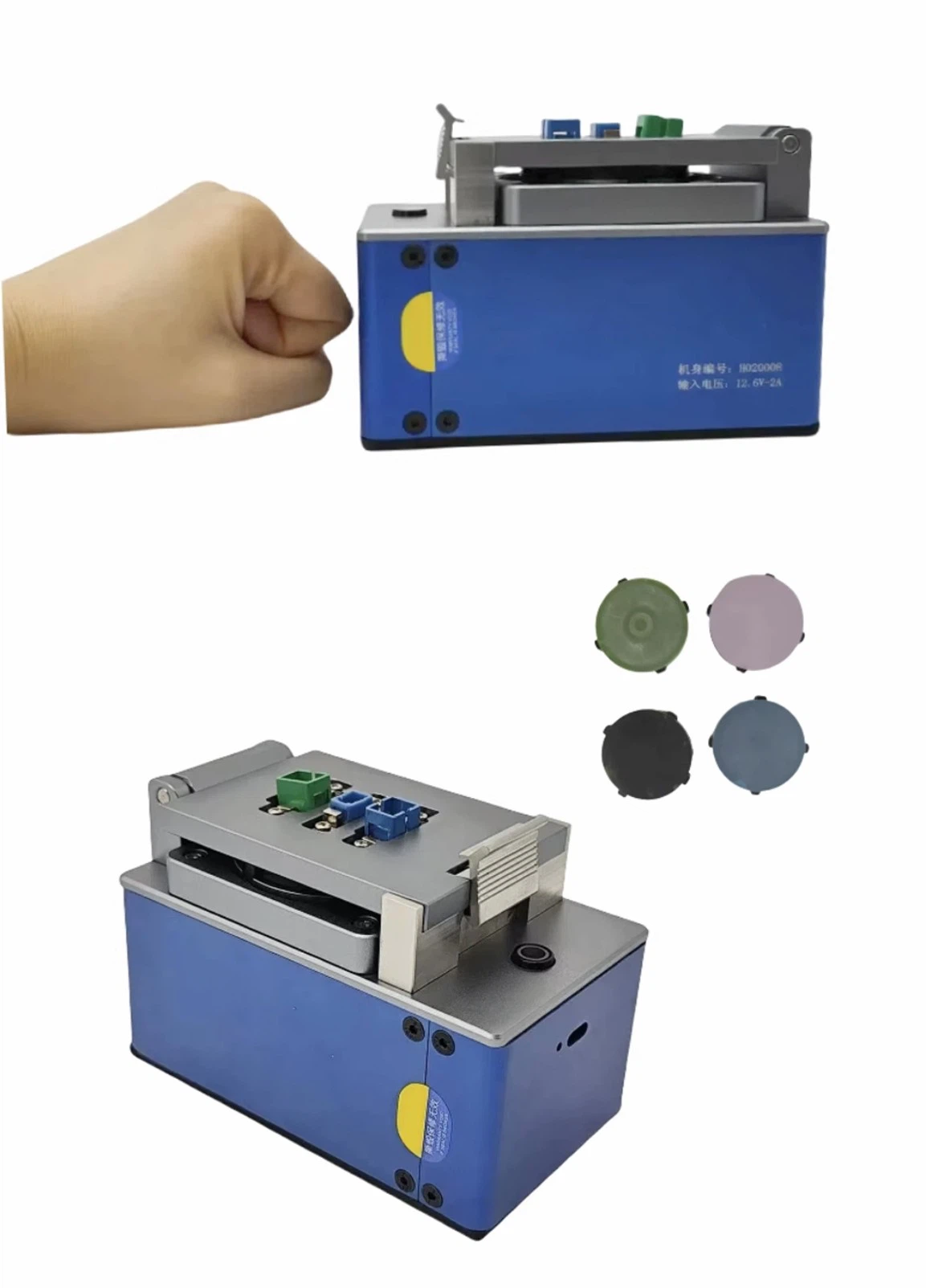

Weighing just a few kilograms, this compact and lightweight fiber polisher is perfect for on-site jobs. Its portability makes it ideal for demanding environments, enabling technicians to work comfortably and efficiently, even at remote locations.
6. One-Click Operation for User-Friendly Experience
Simplify your polishing tasks with the machine's one-click operation. Designed with professionals in mind, the intuitive controls let users work faster while ensuring polished results with minimal effort. This feature is ideal for both new technicians and seasoned professionals.
7. Broad Range of Applications
Keywords: fiber polishing machine for telecommunications, data centers, electrical cabinets
Engineered for telecommunications networks, data centers, and electrical cabinet operations, the polisher caters to diverse industries. From large-scale installations to daily maintenance, this tool improves workflow and allows for seamless fiber optic performance.
The package includes gripper fixtures, adapter plates, power cables, and sanding discs, ensuring you have everything needed to start right out of the box. This comprehensive configuration eliminates the hassle of sourcing additional components, giving you a ready-to-use system.
How to use fiber polisher to make fiber patch cords.

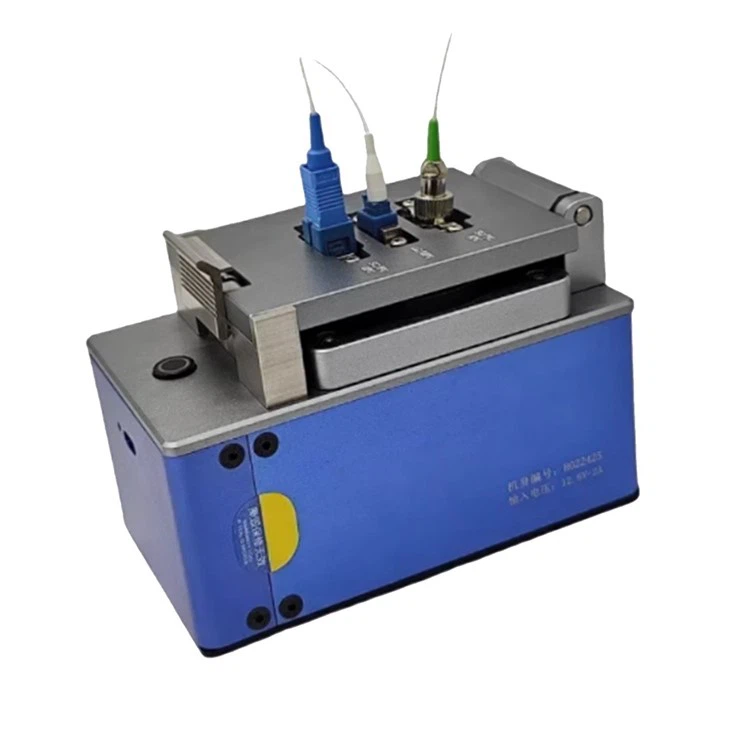

The production of fiber optic patch cords involves the following steps: fiber optic preprocessing (cable cutting, winding, stripping), fiber optic ferrule assembly (inserting loose parts), glue preparation (mixing glue), ferrule glue injection (injecting glue), glue curing (curing, fiber trimming, connector assembly). Following these steps comes the critical polishing phase (installing and configuring the polishing machine, adhesive removal, polishing, buffing, 400x magnification end-face inspection, insertion and return loss testing, and 3D interferometry). The fiber polishing machine is illustrated in the figure below.
1. Overview of a Fiber Polishing Machine
Fiber Polishing machines have a wide range of applications and come in various types tailored to specific purposes. A fiber polishing machine is one such type, specifically designed for polishing various fiber optic connector products. It is primarily used to polish the ceramic ferrule end faces of optical fibers. This equipment is widely used in the optical communication industry and is an essential piece of equipment.
2. Purpose of a Fiber Polishing Machine
The primary function of a fiber polishing machine is to polish the end faces of fiber optic products. It can polish components such as fiber optic patch cords, pigtails, high-power energy optical fibers, plastic optical fibers, and pre-embedded short ferrules for devices. Typically, it is used alongside curing ovens, end-face inspection instruments, crimping machines, testing instruments, and other tools to establish one or more production lines. These lines are used to manufacture passive components such as fiber optic patch cords, pigtails, and pre-embedded short ferrules.
3. How to Use a Fiber Polishing Machine:
30U Adhesive Removal: Remove the yellow adhesive from the top of the ferrule using a dry grinding method (do not apply any water or abrasive liquid on the grinding paper). The polishing time is 30 seconds.
9U Polishing Paper Time: For the first 30 rounds, polish for 45 seconds on an 80-durometer pad. After 30 rounds, increase the time to 50 seconds. If during end-face inspection most ferrules show large glue spots (large black spots), re-polishing will be necessary. Small black glue spots are normal.
1U Polishing Paper Time: For the first 30 rounds, polish for 45 seconds on an 80-durometer pad. After 30 rounds, increase the time to 50 seconds. If during end-face inspection most ferrules show small glue spots (small black spots), re-polishing will be necessary. Uniform scratches are considered normal.
ADS Polishing Paper Time: For the first 30 rounds, polish for 30 seconds on a 70-durometer pad. After 30 rounds, increase the time to 40 seconds. During end-face inspection, surfaces that are smooth and free of glue spots or scratches are deemed acceptable. If there are one or two slight scratches located at the edge of the core area, it is also acceptable; however, if there are numerous obvious scratches, re-polishing will be necessary.
Finally, insertion loss and return loss tests, along with end-face inspections, must be performed to confirm there are no issues and all standards are met prior to packaging.
Why this fiber polisher stands out?

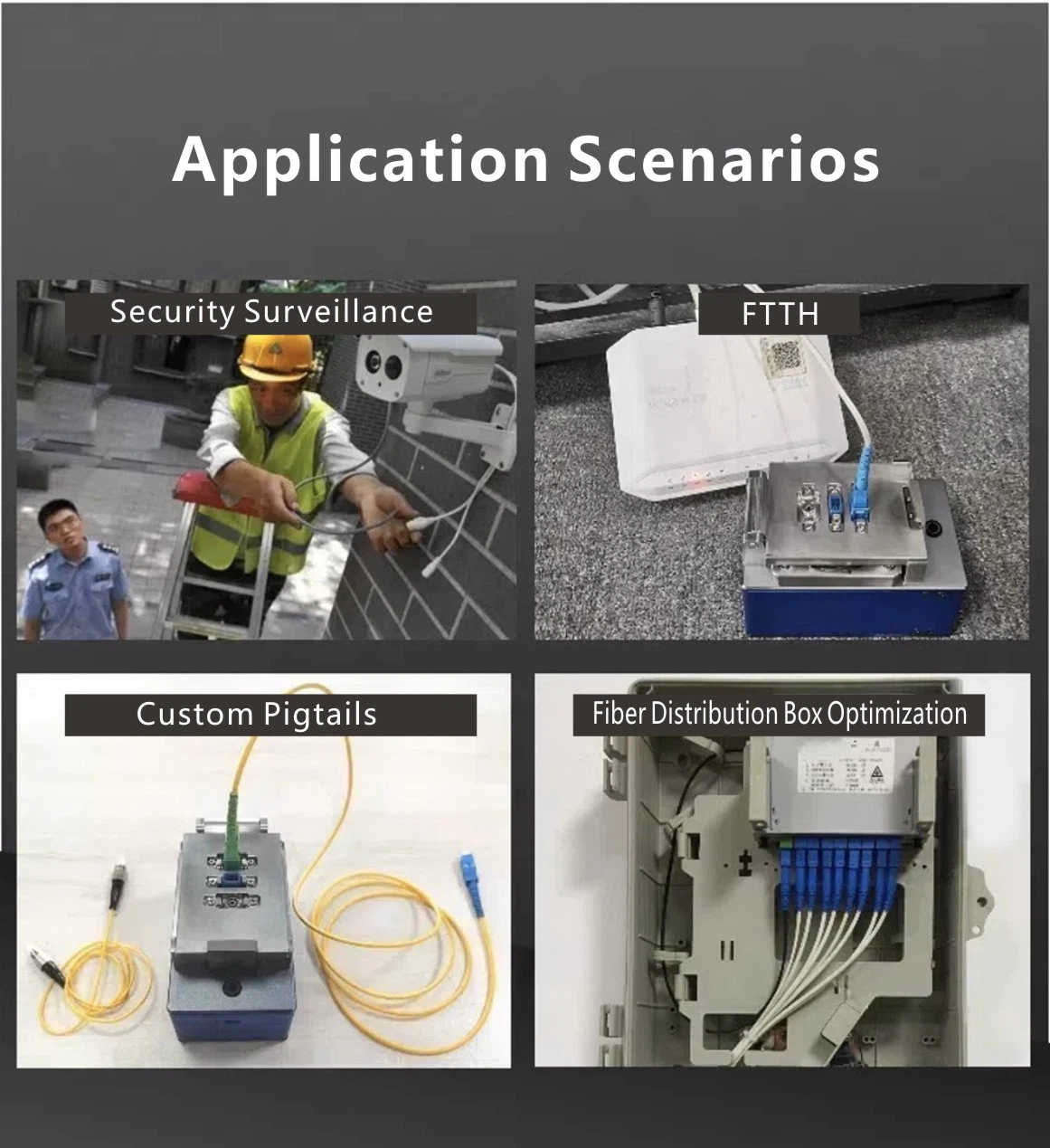

With the rapid development of optical communication technology, fiber optic termination technology is facing increasing challenges in scenarios such as FTTH, FTTR, and 5G installations. Currently, there are three main solutions: mechanical splicing, fusion splicing, and pre-terminated connectors. Mechanical splicing was a method widely adopted during the early stages of FTTH construction. However, due to the inherent flaws of mechanical fiber optic fast connectors, this method has added significant maintenance costs over time and has gradually been phased out by operators. Fusion splicing is widely used at present; however, it is not particularly suitable for certain scenarios, such as high-altitude operations, equipment room renovations, or FTTR installations. For example, fusion-spliced connections require protective sleeves and enclosures for joint protection, which result in visually unappealing cabling for FTTR applications.
Pre-terminated fiber optic connectors are ready-made jumper cables manufactured in factories and available in various specifications. However, their fixed lengths often fail to meet actual application requirements precisely, leading to significant challenges in cable management and substantial waste. Operators also need to maintain a large inventory. On-site polished fiber termination technology effectively addresses these issues-cable length mismatches and waste-by enabling custom-length terminations based on field requirements. This technology essentially replicates factory-grade fiber termination processes on-site, including steps like stripping fibers, applying adhesive, curing, and polishing. The resulting terminated fibers are equivalent in performance to factory-produced patch cords and meet communication standards. This method can be applied in scenarios such as FTTH and FTTR installations, equipment room construction and maintenance, and optical distribution cabinets.
For FTTH deployments using fusion splicing to create joints at splitter boxes and user terminals, two splice points are introduced. This results in two instances of splice loss. While the splice points are protected with heat shrink tubing, they remain prone to breakage and represent potential failure points. By adopting on-site polished fiber termination technology, two connectors can be created directly on drop cables without any intermediate connection points. This results in a stable cable structure that significantly reduces optical signal attenuation. This approach also allows precise control over custom cable lengths.

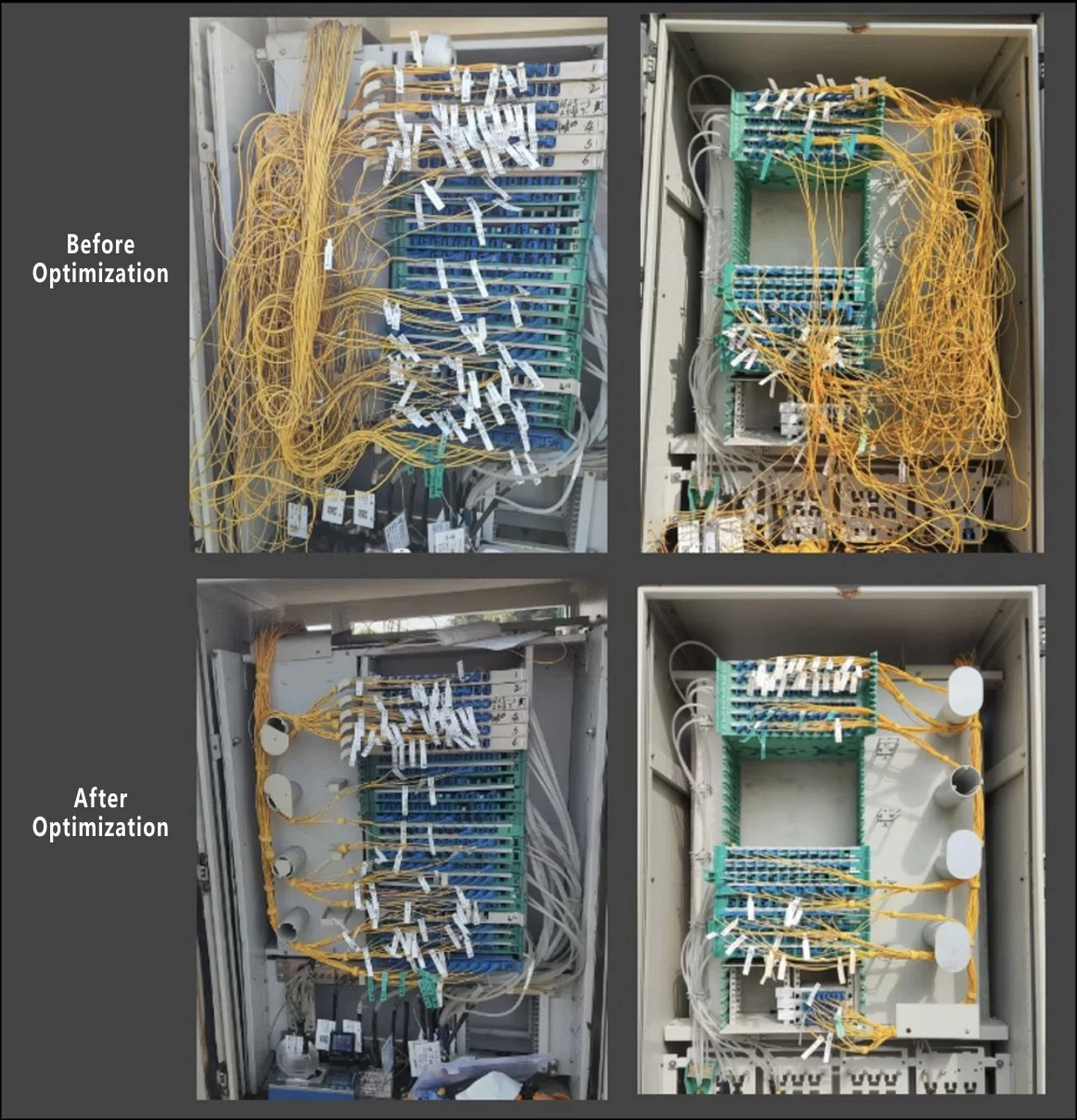

In equipment rooms and optical distribution cabinet applications, the current mainstream method involves splicing pre-terminated pigtails. Although pigtails come in various lengths to choose from, they still rarely match actual requirements perfectly and are generally longer than necessary. The excess cable is coiled at designated positions on racks; over time, this leads to increasingly disorganized layouts that reduce maintenance efficiency while compromising aesthetics. Using on-site polished fiber termination technology allows exact customization of fiber lengths and completely avoids these issues, resulting in more orderly cabling within equipment rooms.
The COBTEL Fiber Polishing Machine is designed for FTTH applications requiring connector endface shaping across various types of connectors. It removes the need for a fiber cleaver or intermediate connection points along the line and features one-button operation to complete endface production through four polishing steps:
1. Adapts factory jumper production processes into efficient on-site procedures to ensure better-looking terminations with higher quality assurance.
2. Eliminates all connection points between the splitter box and ONT (optical network terminal), removing the need for additional accessories like heat shrink tubing or protective enclosures along the cable.
3. Creates fibers tailored to specific length requirements to guarantee neater installation results.
4. Supports polishing a wide range of connector types, including UPC and APC terminations commonly used in telecommunications.
