Aluminum Alloy Fixing Brackets Cable Management Clamp

Aluminum Alloy Fixing Brackets Cable Management Clamp

Product Specifications: Product Length: 105mm Product Width: 40mm 12 cables with an outer diameter of 6mm are placed on each layer. Weight per unit: 0.026kg Purchase Instructions: One layer of cables requires 2 fixing brackets and 1 base, while two layers of cables require 3 fixing brackets and...

Send Inquiry
Add To Inquiry

Description

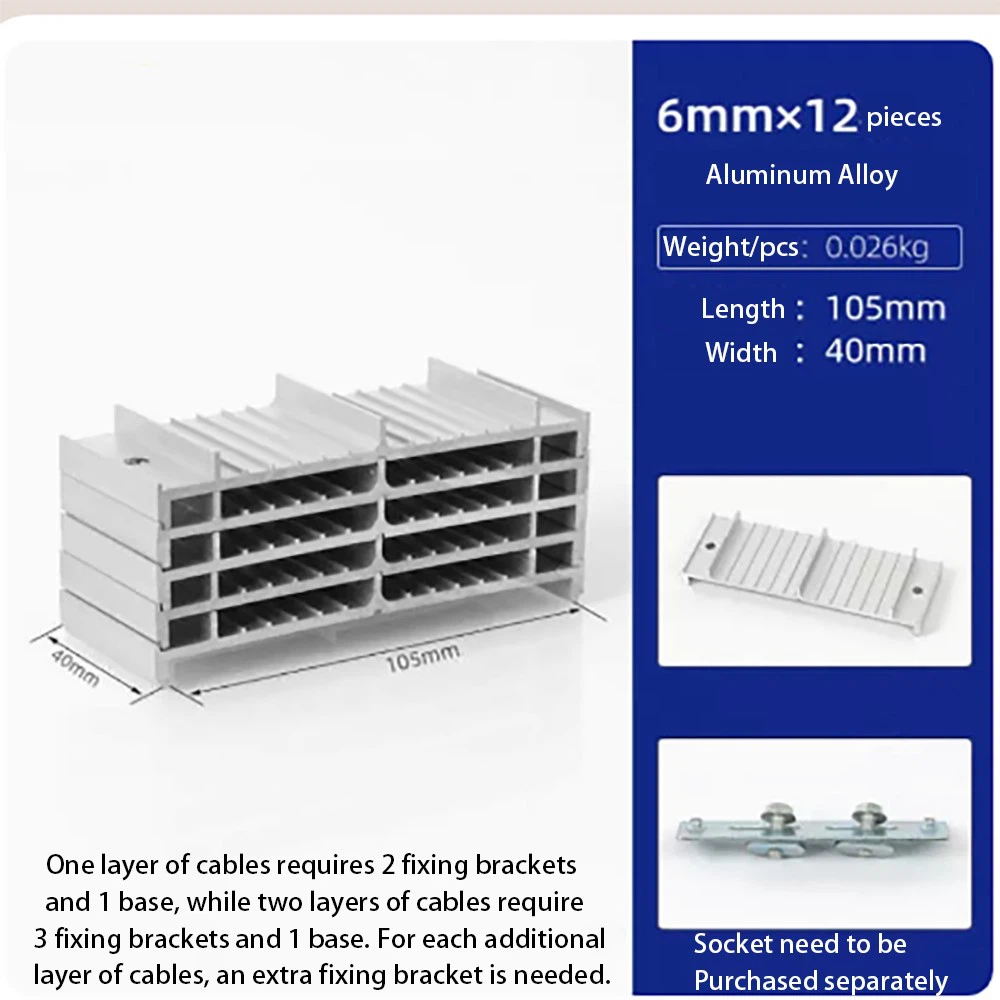

Product Specifications:

Product Length: 105mm Product Width: 40mm 12 cables with an outer diameter of 6mm are placed on each layer. Weight per unit: 0.026kg


Purchase Instructions:

One layer of cables requires 2 fixing brackets and 1 base, while two layers of cables require 3 fixing brackets and 1 base. For each additional layer of cables, an extra fixing bracket is needed.

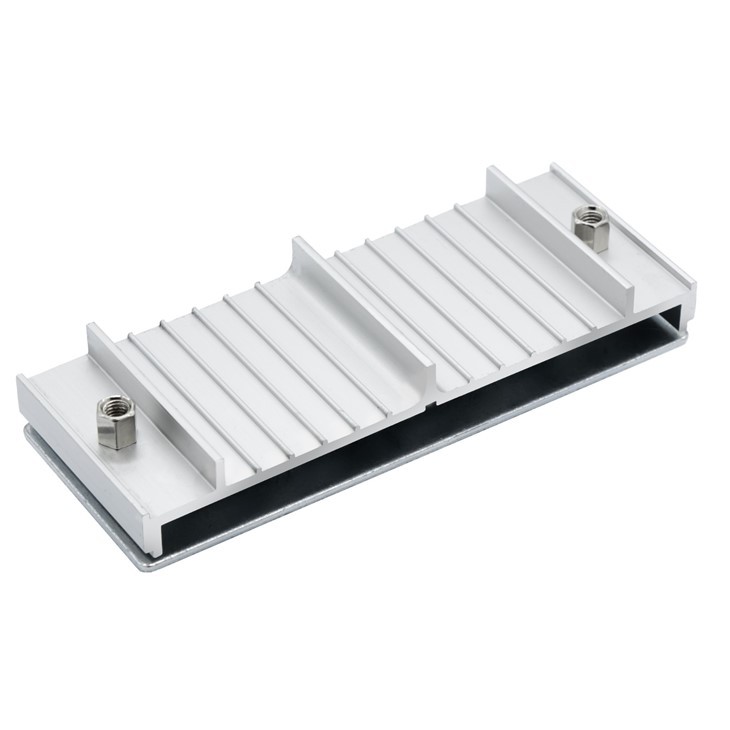

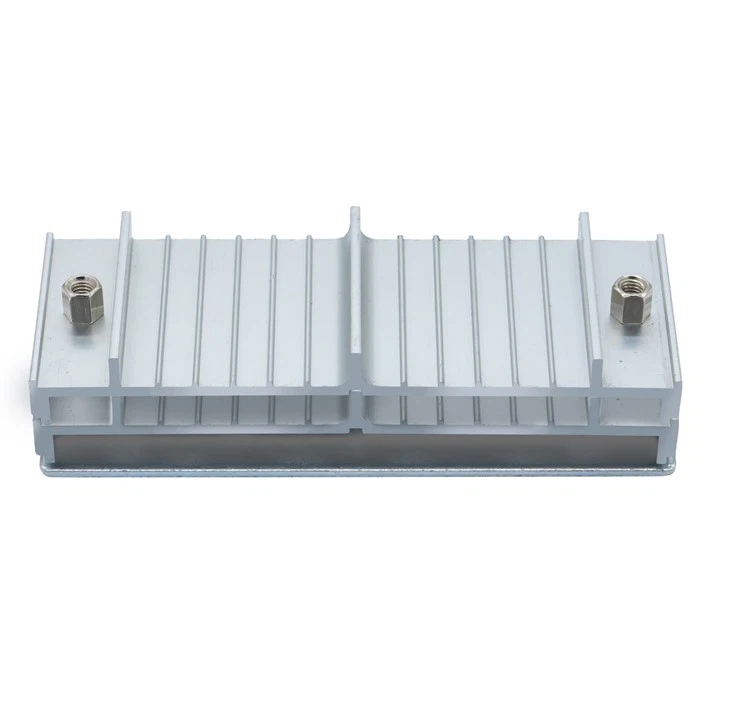

Aluminum Alloy Fixing Bracket:

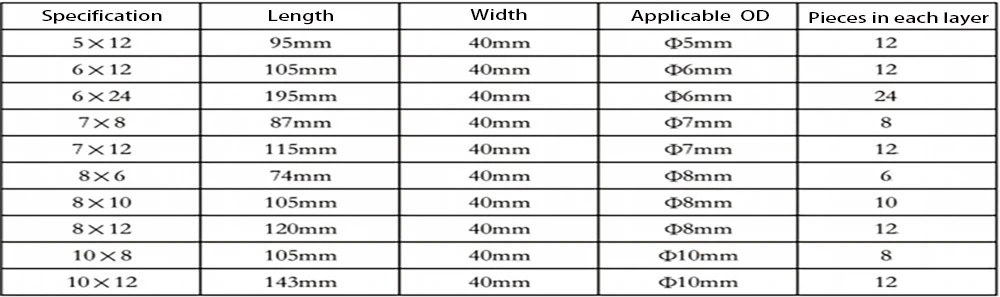

The aluminum alloy fixing bracket comes in various sizes to accommodate different types of cables. The smallest size is suitable for 4mm standard Category 5 cables, while the largest size can hold up to 10mm fiber optic cables. The number of cables that can be placed on each layer varies depending on the size of the aluminum alloy fixing bracket, ranging from a minimum of 6 cables to a maximum of 24 cables.


Installation Guide:

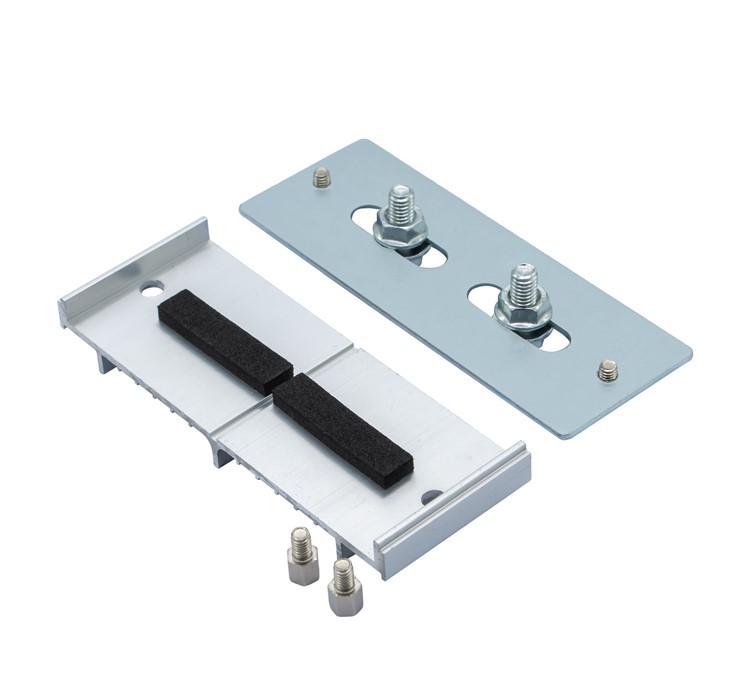

The aluminum alloy fixing bracket should be installed on any type of ethernet cable tray with a base installed first.
Choose a base of the appropriate length based on the size of the aluminum alloy fixing bracket.
Different types of fixing screws are used for different types of cable trays.

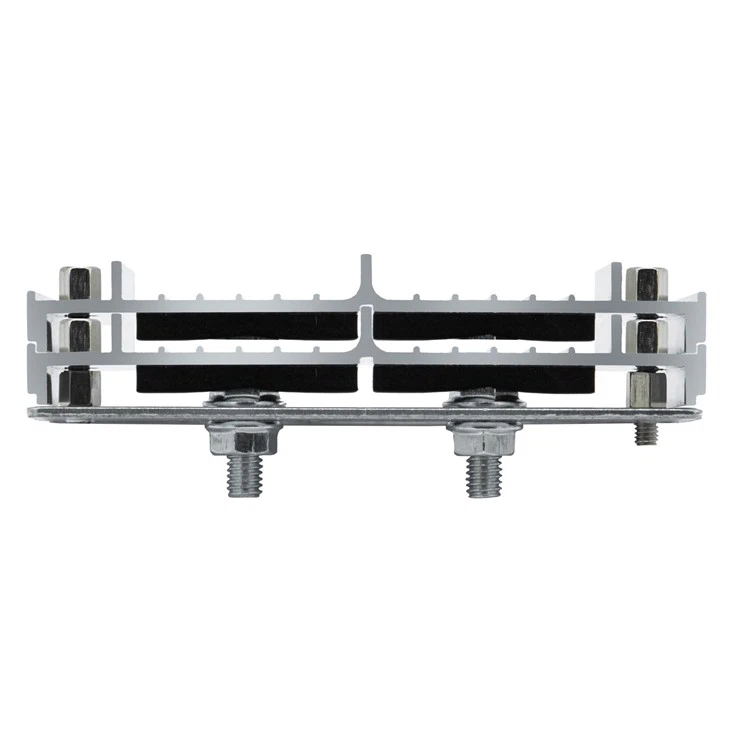

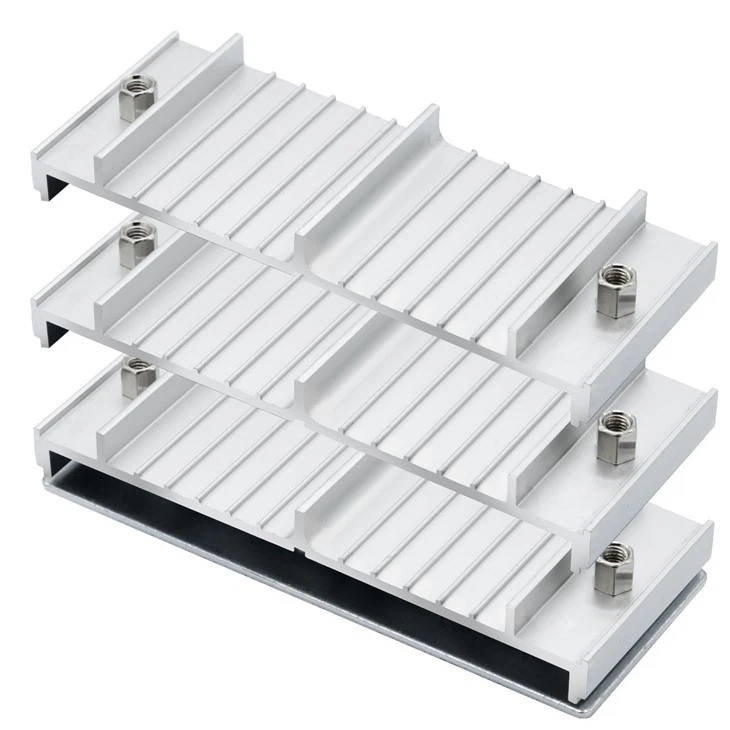

Each layer is secured to the lower layer using two sets of male and female screws.
The top cover can be replaced with an aluminum alloy fixing bracket or a custom-made cover plate.
